• Model NO.：N2XCH
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：N2xch
• Brand：Boan
• Code Name：N2xch
• Conductor Type：Re RM Sm
• Standard：DIN VDE 0276-604
• Conductor Material：Copper
• Number of Wires：2~30
• Size：1.5~240mm2
• Sheath Color：Black
• Core Identification：Coloured (HD 308 S2)
• HS Code：8544492100, 8544492100
• Transport Package：Fumigated Steel-Wooden Drum,Wooden Drum
• Specification：Copper
• Trademark：Dingan
• Origin：China Mainland(Jiangsu Wuxi)

Basic Info.

Model NO. N2XCH Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model N2xch Brand Boan Code Name N2xch Conductor Type Re RM Sm Standard DIN VDE 0276-604 Conductor Material Copper Number of Wires 2~30 Size 1.5~240mm2 Sheath Color Black Core Identification Coloured (HD 308 S2) HS Code 8544492100, 8544492100 Transport Package Fumigated Steel-Wooden Drum/Wooden Drum Specification Copper Trademark Dingan Origin China Mainland(Jiangsu Wuxi)

Product Description

Production Description:
The cables are specified for stationary distribution of electrical energy in dry and damp premises. Suitable for hotels, hospitals, underground railways, airports etc to protect people and technical building equipment in the event of fire where there is no requirement for maintaining the function of the cable in the event of fire.
Technical Data:
Rated voltage: 0.6/1 kV
Test voltage: 4000 V
laying temperature: min. -5 °C
operating temperature: fixed -40 °C to +80 °C
in motion -5 ° C to +50 °C
conductor temperature: max. +90 °C
short-circuit temperature: max. +250 °C/5 s
Biegeradius: 12 x ∅ of cable

Number of cores and cross section	Outer diameter	Weight of cable	Calorific potential
mm2	approx. mm	approx. kg/km	kWh/m
2 x 1,5 RE/1,5	10,0	120	0,35
2 x 2,5 RE/2,5	11,0	150	0,41
3 x 1,5 RE/1,5	10,5	140	0,38
3 x 2,5 RE/2,5	11,5	180	0,44
3 x 4 RE/4	12,5	250	0,50
3 x 6 RE/6	14,5	340	0,58
3 x 10 RE/10	16,0	500	0,68
3 x 16 RM/16	19,0	760	0,89
3 x 25 RM/16	22,5	1.070	1,28
3 x 35 RM/16	25,0	1.360	1,48
3 x 50 SM/25	32,5	2.200	2,18
4 x 1,5 RE/1,5	11,0	160	0,45
4 x 2,5 RE/2,5	12,5	220	0,52
4 x 4 RE/4	13,5	300	0,60
4 x 6 RE/6	15,5	400	0,69
4 x 10 RE/10	17,5	610	0,85
4 x 16 RM/16	20,5	950	1,07
4 x 25 RM/16	24,5	1.350	1,56
4 x 35 RM/16	27,5	1.750	1,86
4 x 50 SM/25	33,7	2.784	2,76
4 x 70 SM/35	37,2	3.675	3,57
4 x 95 SM/50	43,0	5.063	4,40
4 x 120 SM/70	47,2	6.307	4,98
4 x 150 SM/70	52,0	7.617	6,20
4 x 185 SM/95	57,3	9.462	7,72
4 x 240 SM/120	64,3	12.264	9,43
7 x 1,5 RE/2,5	13,5	250	0,67
10 x 1,5 RE/2,5	16,5	330	0,93
12 x 1,5 RE/2,5	17,0	370	1,05
24 x 1,5 RE/6	23,0	670	1,88
30 x 1,5 RE/6	24,0	790	2,22
7 x 2,5 RE/2,5	15,0	320	0,77
10 x 2,5 RE/4	18,0	440	1,07
12 x 2,5 RE/4	18,5	500	1,21
24 x 2,5 RE/10	25,5	940	2,17
30 x 2,5 RE/10	26,5	1.120	2,58
7 x 4 RE/4	16,0	440	0,88
12 x 4 RE/6	21,0	720	1,45

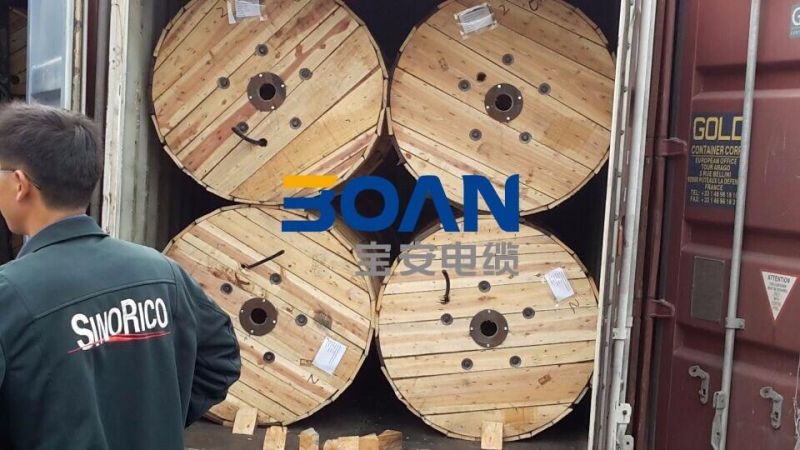

Packaging&Shipping:

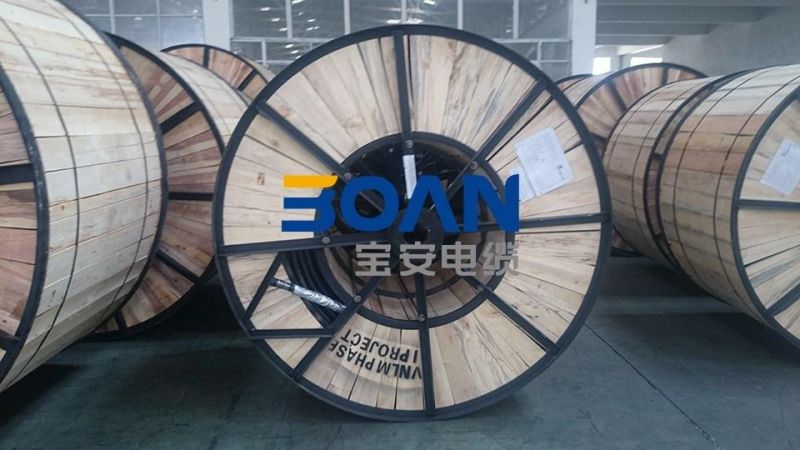

Fumigated steel-wooden drum or wooden drum


Company Information:

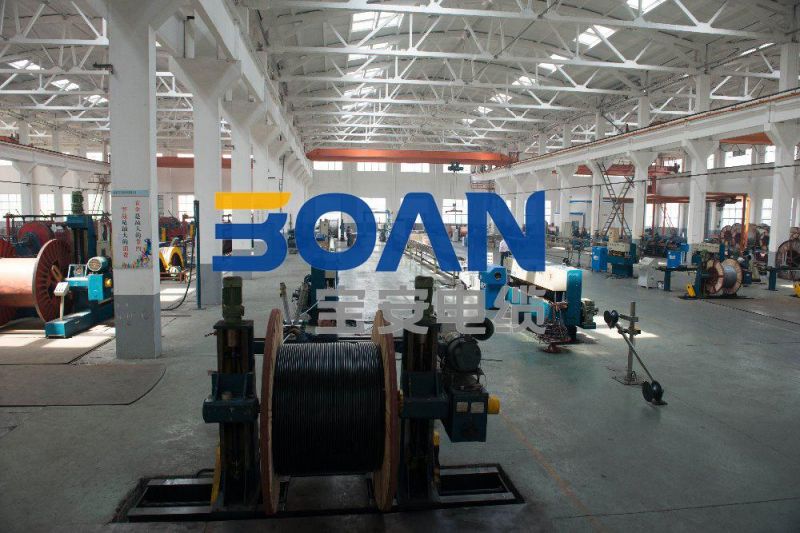

Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.



Certifications:
