Rg7 60% PVC 75 Ohm CATV Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application:Local Communication Cable, Coaxial Cable
- Conductor Material:BC,CCS,CCA,TC,CU,CCAG
- Cover Material:PVC
- Type:RG6 Cable
- Material Shape:Round Wire
- Conductor Type:Stranded
Base Info
- Model NO.:RG7
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS
- Brand:OEM
- Cable Conductor:1.02mm
- Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
- Trademark:FUU
- Origin:Made in China
- HS Code:8544200000
- Production Capacity:3000km,Month
Description
Construction Parameters:
Inner Conductor
0.051"/1.29mm/16AWG Bare copper
Dielectric
0.225"/5.72mm Foamed PE
Shield 1
0.246"/6.25mm Bonded Aluminum PET
Shield 2
Aluminum braid wire 60% coverage
Jacket
0.319"±0.008"/8.10±0.20mm PVC
Jacket Thickness
0.031"/0.78mm
Application
For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance
The Max.at 20ºC shall be<91.2 Ω/km
(27.8Ω/1000ft)
Capacitance
50 ±3 pF/m
Impedance
75 ± 3 Ω
Velocity of Propagation
0.82
Sparker Test (VAC)
4
Structural Return Loss
20 dB
Mechanical and Envrionmental Properties
Cable bend radius
10 times the cable diameter
Operating Temp Range
-20 ºC to 60ºC
Cable diamensions
0.319"±0.008"/8.10±0.20mm PVC

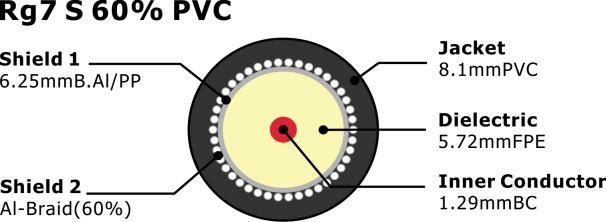

Cross Section
Attenuation(20ºC):
Frequency (MHZ)
Max Attenuation(dB/100ft)
Max Attenuation (dB/100m)
5
0.47
1.54
55
1.25
4.10
211
2.36
7.74
250
2.56
8.40
270
2.68
8.78
300
2.82
9.25
330
2.96
9.72
350
3.05
10.01
400
3.27
10.73
450
3.46
11.35
500
3.67
12.04
550
3.85
12.63
600
4.05
13.28
750
4.57
14.99
870
4.96
16.28
1000
5.32
17.45
Order Informations:
Marking
Package
Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time
Normally 25 days after received the deposit.
