• Model NO.：WDZN-KYJV
• Material Shape：Round Wire
• Range of Application：in The Control,Supervision,Measurement
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：US $0.5-5, Meter
• Trademark：FengDa
• Origin：Tianjin, China
• HS Code：8544492100
• Production Capacity：5, 000, 000km,Year

Basic Info.

Model NO. WDZN-KYJV Material Shape Round Wire Range of Application in The Control,Supervision,Measurement Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Feiya Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.5-5/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

Product Description

Product Description:

1.Application:
It is manufactured according to GB/T 9330-2008 and GB/T 19666-2005 Standard
Control Cable,450/750V, Max.allowable working temperature: 90ºC
The installation temp is not less than 0ºC
Keep the electric supply for 90 min in the flame of 800 ºC
Recommended allows bending radius:
No armoured layer of the cable, should not be less than 8 times of cable diameter;
Structure of armoured or copper tape screened cables, should not be less than 12 times of cable diameter.

2.Type, designation

Type	Designation

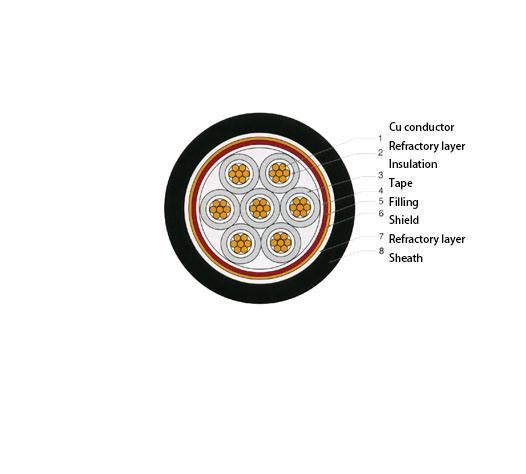

WDZN-KYJY	Copper conductor XLPE insulated PE sheathed low-smoke halogen-free flame-retardant fire-proof control cables
WDZN-KYJYP	Copper conductor XLPE insulated PE sheathed Cu-wire braid screening low-smoke halogen-free flame-retardant fire-proof control cables
WDZN-KYJYP2	Copper conductor XLPE insulated PE sheathed Cu-tape screening low-smoke halogen-free flame-retardant fire-proof control cables
WDZN-KYJY23	Copper conductor XLPE insulated PE sheathed steel-tape armoring low-smoke halogen-free flame-retardant fire-proof control cables
WDZN-KYJYP2-23	Copper conductor XLPE insulated PE sheathed Cu-tape screening steel-tape armoring low-smoke halogen-free flame-retardant fire-proof control cables
