• Model NO.：FTP Cat6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, ETL SGS CPR
• Brand：Risun or OEM
• 23AWG：305m
• LAN Cable：Network Cable
• RJ45 Cable：STP CAT6
• Transport Package：305m,Roll,Drum.
• Specification：ETL, CE, RoHS, SGS, ISO9001
• Trademark：RISUN or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

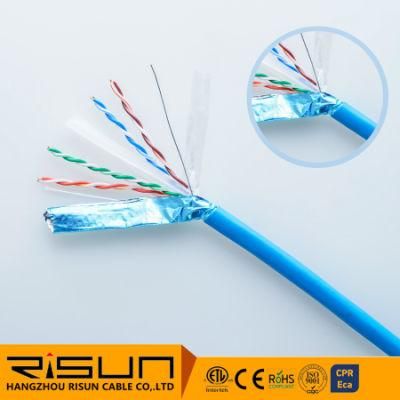

ConstructionConductor23AWG (Solid or Strand) CU/CCAInsulationHDPE 1.04 ± 0.06mmCores/Pairs8/4ShieldPolyester Tape / Al FoilSheath7.30+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE

Mechanical Properties
Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile strength	Min. 1.68Kg/mm2



Electrical Properties (at 20°C)
Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Cpacitance Unbalance	Max. 330pF/100m
Impendance	100+/-15 ohm
Spark Test	2000V
Velocity Propagation	67%



	Attenuation	RL	Next	PS Next
(MHz)	(db/100m)	(db)	(db)	(db/100m)
1MHz	2.0	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43.0	41.8
62.5MHz	17.0	21	39.2	37.2
100MHz	22.0	20	36.3	34.4
155MHz	28.1	19	35.5	33.6
200MHz	32.4	19	31.8	29.9
240MHz	36.0	18	30.6	28.7
300MHz	41.0	18	29.2	27
350MHz	44.9	17	28.0	25.6
