Thermocouple MI cable type K 3mm with SS304/316/321/inconel600
Shanghai Tankii Alloy Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Thermocouple sensor
- Conductor Material：Chromel Alumel
- Sheath Material：SS304,316,321
- Insulation Material：MgO
Base Info
- Model NO.：K
- Material Shape：Round Wire
- Range of Application：Thermocouple sensor
- Certification：ISO9001, RoHS
- Brand：Tankii
- Dia：1.5,3,6,8,10
- MI cable Surface：Bright
- Grade：First
- Standard：GB,IEC,ANSI
- Shape：wire, ribbon, strip, rod
- RoHS：Yes
- MTC：Yes
- SGS：Yes
- Leading time：5-7 days
- Package：Bobbin, carton box, wooden box
- Transport Package：Spool, Carton, Wooden Case
- Specification：Customized
- Trademark：TANKII
- Origin：China
- HS Code：75052200
- Production Capacity：5000 Tons,Year
Description
Thermocouple Code
Comp. Type
Comp. Wire Name
Positive
Negative
Name
Code
Name
Code
S
SC
copper-constantan 0.6
copper
SPC
constantan 0.6
SNC
R
RC
copper-constantan 0.6
copper
RPC
constantan 0.6
RNC
K
KCA
Iron-constantan22
Iron
KPCA
constantan22
KNCA
K
KCB
copper-constantan 40
copper
KPCB
constantan 40
KNCB
K
KX
Chromel10-NiSi3
Chromel10
KPX
NiSi3
KNX
N
NC
Iron-constantan 18
Iron
NPC
constantan 18
NNC
N
NX
NiCr14Si-NiSi4Mg
NiCr14Si
NPX
NiSi4Mg
NNX
E
EX
NiCr10-Constantan45
NiCr10
EPX
Constantan45
ENX
J
JX
Iron-constantan 45
Iron
JPX
constantan 45
JNX
T
TX
copper-constantan 45
copper
TPX
constantan 45
TNX
Insulation of MI cable Magnesium Oxide
Tankii supplies Magnesium Oxide as the standard insulator with a high purity of ≥99.4%.
| Purity | High Purity ≥99.4 pure |
| Composition | Main Concentration Mass % |
| MgO | 99.4 min |
| Cao | 0.35 max |
| Al2O3 | 0.15 max |
| Fe2O3 | 0.04 max |
| SiO3 | 0.13% |

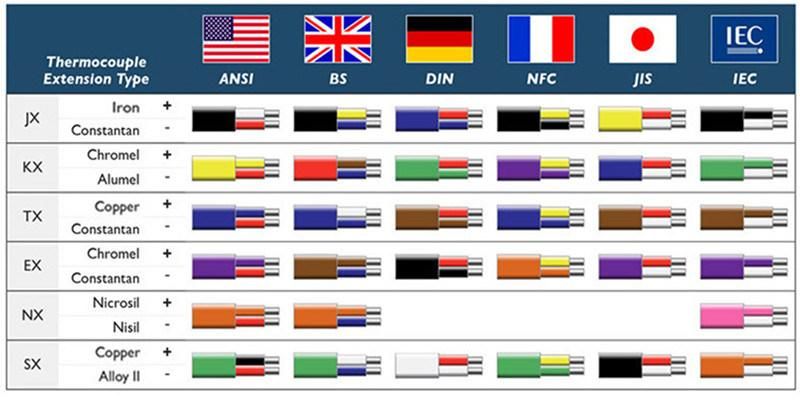

International Color Code:
