2c 1.5mm2 Fire Alarm Wire Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Bus Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, ETL,CPR
- Color：Red , Black
- Inner Conductor：Bare Copper Wire
- Cores：2cores
- Shielded：Polyester Tape,Al Foil
- Drain Wire：Tc,Bc
- Export Length：100m
- Transport Package：Carton Box, Pallet
- Specification：2C X 16AWG (2 X 1.5MM2)
- Trademark：Risun
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：20, 000km,Month
Description
Basic Info.
Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, ETL,CPR Color Red , Black Inner Conductor Bare Copper Wire Cores 2cores Shielded Polyester Tape/Al Foil Drain Wire Tc/Bc Export Length 100m Transport Package Carton Box, Pallet Specification 2C X 16AWG (2 X 1.5MM2) Trademark Risun Origin Zhejiang, China HS Code 8544491100 Production Capacity 20, 000km/MonthProduct Description
2C 1.5mm2 Fire Alarm Wire Cable

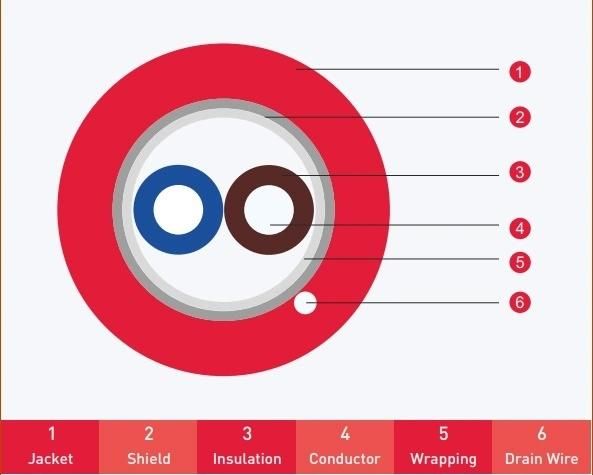

construction:
| Conductor | 16 AWG Bare Copper |
| insulation | PVC |
| Color Code | 1.Black 2.Red |
| Drain Wire | TC |
| Jacket | PVC/LSZH |
| Color | Red |
Electrical Properties :
| Temperature Rating | -20ºC ~ +75ºC |
| Operating Voltage | 300 Volts max |
| Capacitance | 62 pf/ft nom |
| Impedance | 30 Ohms nom |
| DC Resistance | 4.05 Ohms/M'' at 20ºC |

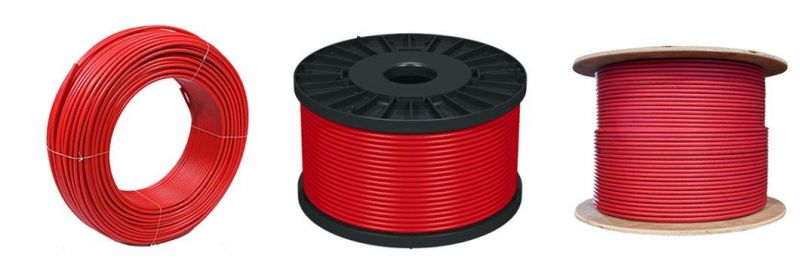

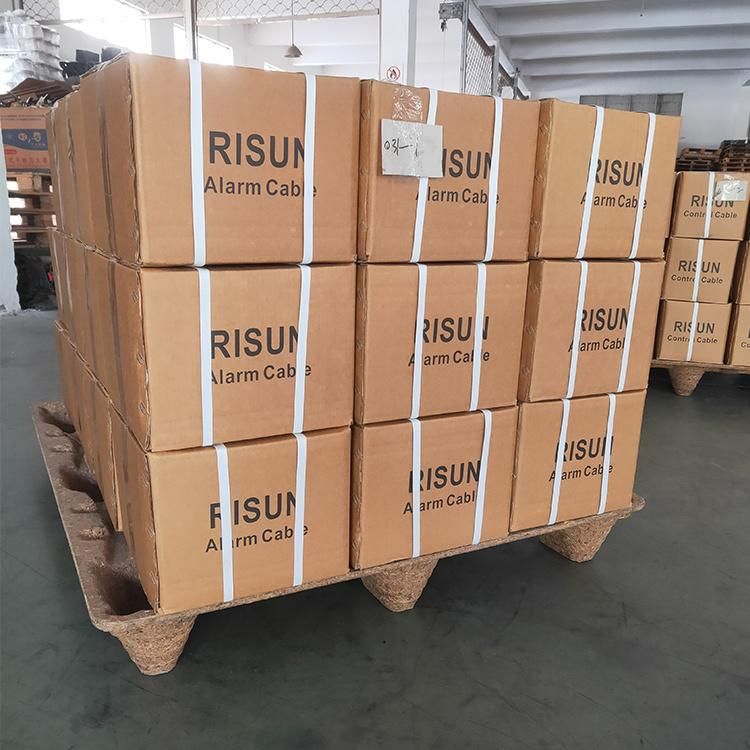

packing
1) packing lengths:100m/Reel305/Wooden Drum,other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

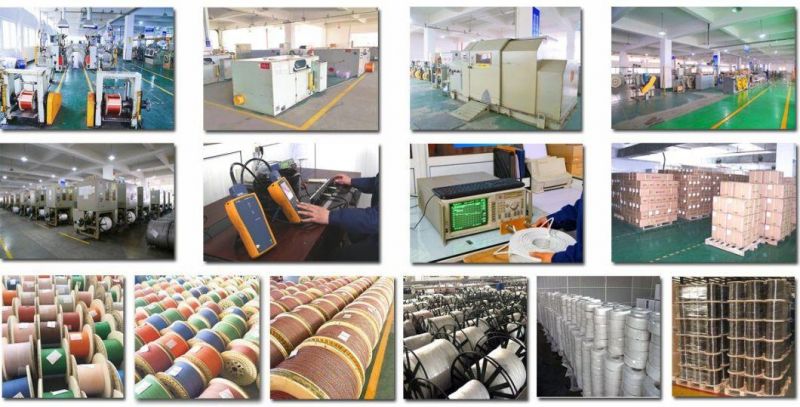

Company IntroductionRisun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china. 95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.In the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
We are committed to providing you with high-quality and competitive products.We will be your trusted partner.
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
