• Model NO.：U 1000 R02V
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：YJV
• Brand：Yifang
• Cores：Single Core
• Standards：NFC 32-321, IEC 60502-1
• Sheath Color：Black
• Conductor：Copmacted Round Copper
• Transport Package：Drum, Steel Drum
• Specification：1X300 MM2
• Trademark：Yifang cable
• Origin：Zhengzhou Henan
• HS Code：8544492100
• Production Capacity：5000km,Year

Basic Info.

Model NO. U 1000 R02V Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model YJV Brand Yifang Cores Single Core Standards NFC 32-321, IEC 60502-1 Sheath Color Black Conductor Copmacted Round Copper Transport Package Drum, Steel Drum Specification 1X300 MM2 Trademark Yifang cable Origin Zhengzhou Henan HS Code 8544492100 Production Capacity 5000km/Year

Product Description

U 1000 R02V Cable of 1 X 300 mm2 Copper Cable

1. Application:

U-1000 RO2V cables can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.

In case of high ambiant temperature, use correction coefficient

These cables for energy distribution are suitable for all types of low voltage industrial-type connection, in
urban grids, building installations, etc. Particularly suited in cases of high operating temperature and when
high resistance to solar radiation and atmospheric agents is required. Good resistance to low temperature
and chemical agents. Can be used without additional mechanical protection in the open air, fixed to walls
or in raceways, inside walkways, and in empty in Cable Constructions in general. Can be laid underground
with mechanical protection constructed from slabs, tiles, or bricks. They are not recommend to lay this cable
in ground flooded for more than two months per year. With appropriate mechanical protection it can be use
in areas subject to risk of explosion, but in this case the permitted current load is reduced by 15%. It can be
used in ambient temperature down to -25 .

2. Standards:

NF C 32-321 , EN 60332-1/NF C 32-070

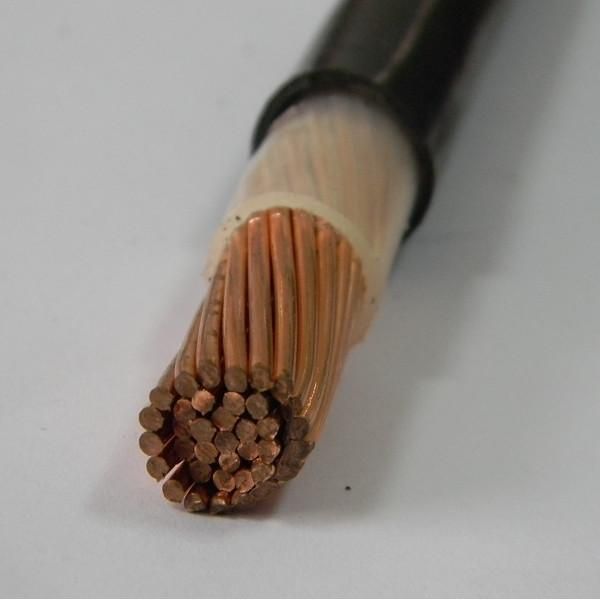

3.Construction

 Flexible electrolytic annealed copper strands
Strands to IEC 60228 class 2 , make-up with fine wires (Φ max. 0.4mm)
with flexibility level equivalent to class 5.
XLPE insulation according to NF C 32-321.

Color codes to NF C32-321
Not fibrous and not hygroscopic filler
Flexible black PVC outer jacket

4.Technical Characteristics

Working Voltage: 600/1000 volts
Test voltage: 1200 volts

Minimum bending radius: 6 x Ø
Operation temperature range: -15 °C to 60 °C
Short-circuit temperature: 250 °C
Flame retardant: NF C 32-070 C2
Insulation resistance: 20 MΩ x km
