• Model NO.：heat resistance braided cable
• Material Shape：Round Wire
• Range of Application：Heating
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement
• Brand：Fongming
• Name：450 Degree Heat Resistance Braided Cable
• Rating Voltage：600V, 300V
• Color：as Requirements
• Size：24AWG~8AWG
• Test：Electric Spark Testing
• Rating Temperature：450 Degree
• Certification No：E315207
• Conductor：Nickel, Nickel Copper
• Insulation：Mica Tape Insulated
• Jacket：Fiberglass with High Temp Finish
• Transport Package：100m, 200m or 305m Per Roll. Carton Packing.
• Specification：24awg~8awg
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China.
• HS Code：8544492100
• Production Capacity：100000000m Per Year

Basic Info.

Model NO. heat resistance braided cable Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement Brand Fongming Name 450 Degree Heat Resistance Braided Cable Rating Voltage 600V, 300V Color as Requirements Size 24AWG~8AWG Test Electric Spark Testing Rating Temperature 450 Degree Certification No E315207 Conductor Nickel, Nickel Copper Insulation Mica Tape Insulated Jacket Fiberglass with High Temp Finish Transport Package 100m, 200m or 305m Per Roll. Carton Packing. Specification 24awg~8awg Trademark FONGMING Origin Yangzhou, Jiangsu Province, China. HS Code 8544492100 Production Capacity 100000000m Per Year

Product Description

Product

Description
Name:High Temperature Resistance Wire
Size:0.14-25.0mm²

Feature
Ratings Voltage:600V
Rated temperature:450ºC

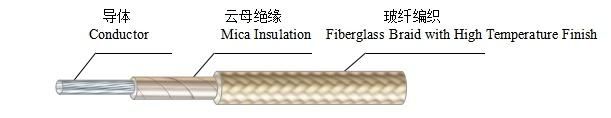

Structure
Conductor: Nickel Plated Copper27%
Insulation:Mica tape ,
Jacket:Fiberglass Braid with High Temperature Finish






Size mm2	Conductor Structure	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)
0.14	7/0.16	0.48	0.45	1.38	0.2	1.8±0.1
0.22	7/0.2	0.6	0.45	1.5	0.2	1.9±0.1
0.25	7/0.23	0.69	0.45	1.59	0.2	2.0±0.1
0.5	16/0.2	0.92	0.45	1.82	0.2	2.2±0.1
0.75	24/0.2	1.13	0.45	2.03	0.2	2.4±0.1
1.0	32/0.2	1.31	0.45	2.21	0.2	2.6±0.1
1.5	30/0.254	1.58	0.45	2.48	0.2	2.9±0.1
2.0	40/0.254	1.83	0.45	2.73	0.2	3.1±0.2
2.5	50/0.254	2.04	0.45	2.94	0.2	3.3±0.2
4.0	34/0.39	2.62	0.45	3.52	0.2	3.9±0.2
6.0	50/0.39	3.18	0.69	4.56	0.25	5.1±0.3
10.0	84/0.39	4.13	0.69	5.51	0.25	6.0±0.3
16.0	133/0.39	5.70	0.69	7.08	0.25	7.6±0.5
25.0	210/0.39	7.15	0.69	8.53	0.25	9.0±0.5

Certificates


Transport & Payment



Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.


Company Information



Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.

We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.

Factory Size (Sq.meters):	45,000-50,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	20
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Hot Sale



FAQ

 1. Why the price is so low?

You are ordering directly from the factory.



2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3.Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
