UL2464 Multi-Conductor Cable, Multi Conductor Shield Wire

B&T (Zhangzhou) Cable Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Hook-up Wire
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：UL2464
  • Wire Core Material：Bare Copper, Tinned Copper
  • Certification：CE, ISO, RoHS, UL, VDE, Reach
  • Model：UL2464
  • Brand：Bort, or ODM, OEM
  • Temperature Range：-40c ~ +80c
  • Jacket：PVC
  • Rated Voltage：300V
  • Transport Package：Roll, Cartons, Pallets, Customized
  • Trademark：BORT
  • Origin：China
  • HS Code：8544492900
  • Production Capacity：300000km,Per Year

Description

Basic Info.

Model NO. UL2464 Wire Core Material Bare Copper, Tinned Copper Certification CE, ISO, RoHS, UL, VDE, Reach Model UL2464 Brand Bort, or ODM, OEM Temperature Range -40c ~ +80c Jacket PVC Rated Voltage 300V Transport Package Roll, Cartons, Pallets, Customized Trademark BORT Origin China HS Code 8544492900 Production Capacity 300000km/Per Year

Product Description

UL2464 Multi-Conductor Cable, Multi Conductor Shield Wire

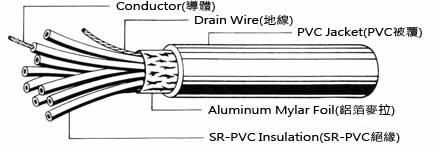

UL2464 Multi-Conductor Shielded PVC Signal Cable and Control Cable

UL2464 Multi-Conductor Cable, Multi Conductor Shield Wire

★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure  easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer

AWG/NO.OFCONDNo./mmmmm/n/dmmmm
24×2C11/0.160.2516/4/0.100.804.35
24×3C11/0.160.2516/4/0.100.804.50
24×4C11/0.160.2516/5/0.100.804.80
24×5C11/0.160.2516/6/0.100.805.10
24×6C11/0.160.2516/6/0.100.805.45
24×7C11/0.160.2516/6/0.100.805.50
22×2C17/0.160.2516/5/0.100.804.75
22×3C17/0.160.2516/6/0.100.804.95
22×4C17/0.160.2516/6/0.100.805.30
22×5C17/0.160.2516/7/0.100.805.65
22×6C17/0.160.2516/8/0.100.806.05
22×7C17/0.160.2516/8/0.100.806.10
