• Model NO.：K-FF
• Material Shape：Round Wire
• Range of Application：Temperature Measuring
• Certification：ISO9001, UL, CCC
• Brand：Fongming
• Name：Jx-FF Thermocouple Wirek
• Model：J-F-F Type
• Lead Time：5-7 Days
• Size：2*26-2*14AWG
• Test：Electric Spark Testing
• Certification No：E315207
• Conductor：Fe, Cu-Ni
• Insulation：FEP
• Jacket：FEP
• Transport Package：100m, 200m or 305m Per Roll. Carton Packing.
• Specification：2*26-2*14AWG
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China.
• HS Code：8544492100
• Production Capacity：100000000m Per Year

Basic Info.

Model NO. K-FF Material Shape Round Wire Range of Application Temperature Measuring Certification ISO9001, UL, CCC Brand Fongming Name Jx-FF Thermocouple Wirek Model J-F-F Type Lead Time 5-7 Days Size 2*26-2*14AWG Test Electric Spark Testing Certification No E315207 Conductor Fe, Cu-Ni Insulation FEP Jacket FEP Transport Package 100m, 200m or 305m Per Roll. Carton Packing. Specification 2*26-2*14AWG Trademark FONGMING Origin Yangzhou, Jiangsu Province, China. HS Code 8544492100 Production Capacity 100000000m Per Year

Product Description

high performance  FEP insulation FEP jacket K Type thermocouple cable
Description
Name:Thermocouple wire
Model:K-F-F Type
Size:2*26-2*14AWG

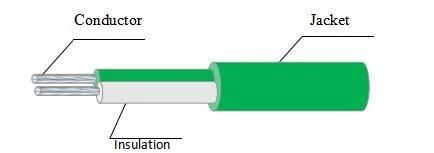

Structure
Conductor: Positive Ni-Cr, NegativeNi-Si
Insulation: FEP
Color: P: Green,N:White
Jacket: FEP
Color: Green

Model

Specification

Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.3	1.5±0.2*2.4±0.2
2*24	7/0.2	0.6	0.2	1.0	0.3	1.6±0.2*2.6±0.2
2*22	7/0.254	0.76	0.2	1.2	0.3	1.8±0.2*3.0±0.2
2*20	7/0.32	0.96	0.2	1.4	0.3	2.0±0.2*3.4±0.2
2*18	7/0.39	1.17	0.25	1.7	0.4	2.5±0.2*4.2±0.2
2*16	19/0.3	1.5	0.25	2.0	0.4	2.8±0.2*4.8±0.2
2*14	19/0.37	1.85	0.25	2.4	0.4	3.2±0.2*5.6±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Hot Products



FAQ
 1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?
Yes. customization is welcome .
