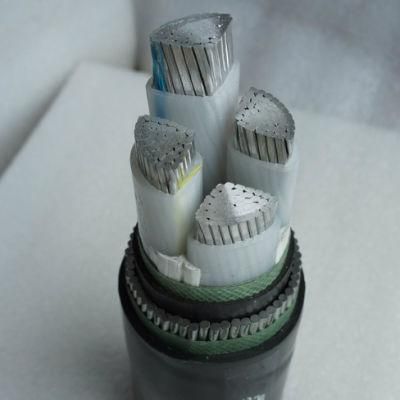

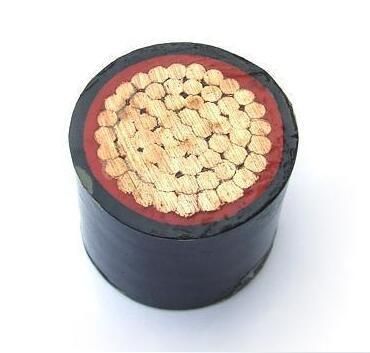

• Model NO.：N2XS2Y XLPE PE - 18,30 (36)kV Cable
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE, RoHS
• Model：Yjv,Yjlv
• Brand：Hongda
• Armour：Steel Wire,Tape Armour,No
• Conductor Material：Copper,Aluminum
• Standard：IEC 60502-1
• Quality Guarantee：Ten Years
• Core：1core,Multicore
• Insulated Color：as Your Requirement
• Sheath Color：Black
• Screen：Copper Wires
• Manufacture：Yes
• Transport Package：Wooden Drum
• Specification：single core power cable
• Trademark：Hongda
• Origin：China, Henan
• HS Code：8544492100
• Production Capacity：3000km,Per Months

British Standard MV cablesVoltage RatingBS6622 - standard British MV cable6.35/11kV19/33kV BS7835 - LSZH British MV cable6.35/11kV19/33kV European standard MV cablesVoltage Rating N2XSY - single copper core XLPE insulated with PVC oversheath6/10kV12/20kV18/30kVN2XS2Y - single copper core XLPE insulated with PE oversheath6/10kV12/20kV18/30kVNA2XSY - single aluminium core XLPE insulated with PVC oversheath6/10kV12/20kV18/30kVNA2XS2Y - single aluminium core XLPE insulated with PE oversheath6/10kV12/20kV18/30kVN2XSEY - 3 copper core XLPE insulated with PVC oversheath6/10kV  N2XS(F)2Y - single copper core XLPE insulated with water blocking powder and PE oversheath6/10kV12/20kV18/30kVN2XS(FL)2Y  - single copper core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath6/10kV12/20kV NA2XS(F)2Y - single aluminium core XLPE insulated with water blocking powder and PE oversheath6/10kV12/20kV18/30kVNA2XS(FL)2Y - single aluminium core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath6/10kV12/20kV18/30kV

MV Cable Sizes

Our 10kV, 11kV, 20kV, 30kV and 33kV cables are available in the following cross-sectional size ranges. Larger sizes are available upon request.

   10kV single core35mm² to 500mm²10kV 3-core35mm² to 240mm²11kV single core50mm² to 1000mm²11kV 3-core35mm² to 400mm²20kV single core50mm² to 500mm²30kV single core 50mm² to 500mm²33kV single core70mm² to 1000mm²



Please see our MV cable datasheets for further information.

European MV cable type designation

NMV cable according to DIN VDE 0276AAluminium (Al) conductor[blank]Copper (Cu) conductor2XCross-linked polyethylene (XLPE) insulationSScreen of copper wires and copper tape, helically woundSEScreen of copper wires and copper tape over each individual core, helically woundYPolyvinyl Chloride (PVC) sheath2YPolyethylene (PE) sheath(F)2YLongitudinal water tightness with PE sheath(FL)2YLongitudinal and transversal water tightness with Al/PE sheath

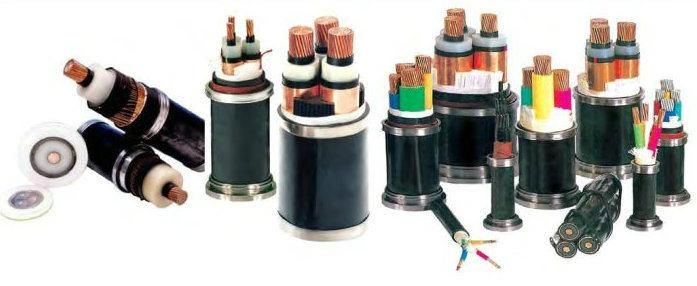

As a specialist MV cable supplier, our standard medium voltage cable portfolio contains cable with single and 3-core copper or aluminium conductors, with a steel wire armour or aluminium wire armour for mechanical protection, and with various application-specific materials including Polyvinyl Chloride (PVC), Polyethylene (PE), Cross-linked Polyethylene (XLPE) and Ethylene Propylene Rubber (EPR) and oversheathing properties including Low Smoke Zero Halogen (LSZH). We also supply medium voltage standard cables manufactured against specific power network requirements supplied in triplex formation. Our MV cable products are installed across a number of industries ranging from construction to power transmission. They are widely used for power distribution between high voltage mains power supply and low voltage applications, as well as by utility companies to connect residential and industrial complexes, or renewable energy sources such as wind and solar farms, to the primary grid.

Our MV cables are available in specific lengths as well as in extended long lengths to facilitate installation and to reduce the number of joints.

Custom designed medium voltage cables

In addition to standard medium voltage cables, we can design and supply bespoke MV cable products developed for your specific applications. Our custom designed cable solutions provide for variants developed and manufactured around a number of parameters, including:

Cross-sectional area: generally 35mm² up to 100mm2
Number of cores: generally one or three
Solid or stranded aluminium conductors: for applications requiring a lighter cable weight, also often more economical due to lower aluminium prices.
Stranded copper conductors: for applications requiring a smaller overall diameter and higher transmitting properties.
Bedding
Bonded or strippable out semi-conducting layer
Water tightness: longitudinal, longitudinal + quasi-radial, longitudinal + radial
Insulation layers (conductor screen, insulation and insulation screen): XLPE, which is more commonly used for MV cables, or EPR which is more flexible and often better suited to marine and offshore applications.
Metallic screen: to nullify the electric field outside the MV cable. Concentric copper wire screens, Aluminium foil laminate, or extruded lead alloy sheath.
Twisted three-core cable or triplex
Armouring: for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.
Tapes: Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.
Outer Sheath: compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.


Medium Voltage cable testing

Some of the tests you would expect from a medium voltage cable manufacturer, and which are performed on our MV cables, include:

Routine tests: These non-destructive tests are normally carried out on all lengths manufactured.
- Conductor resistivity
- Spark test on oversheath
- Voltage tests on sheath
- D.C. voltage test on oversheath

Sample tests: These potentially destructive tests are normally carried out on every production run.
- Examination of conductor and dimensions
- Hot set test for XLPE insulation
- Insulation and oversheath thickness
- Four hour voltage test

Type tests: These destructive tests are normally carried out in addition to the above tests on commencement of a particular cable supply to validate its design.
- Electrical type tests including bending and heat cycle
- Non-electrical type tests including mechanical properties after ageing and tests under fire conditions.
 APPLICATIONMedium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts. The swellable tape provides additional waterblocking properties, making the cable longitudinally water tight and preventing water propagation along the cable.CHARACTERISTICSVoltage Rating(Uo/U)(Um) 18/30 (36)kVTest Voltage 63kVTemperature RatingFixed: -20°C to +70°CFlexed: -20°C to +70°CShort Circuit Temperature +250°CMinimum Bending Radius 15 x overall diameterSheath Colour Black N2XS2Y XLPE PE - 18/30 (36)kV Cable
  CONSTRUCTIONConductorClass 2 stranded aluminium conductorInner Semi-Conductive Layer Semi-conductive materialInsulation XLPE (Cross-Linked Polyethylene)Outer Semi-Conductive Layer Semi-conductive materialScreen Copper wiresSheathPE

^{Packaging&Delivery.}

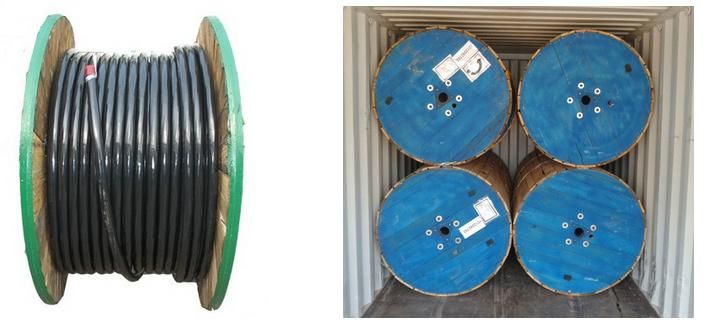

Packaging Details:Wooden drums,steel wooden drums or as your requirement
