• Model NO.：Cu,PVC,PVC electrical cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Nyy Cu,PVC,PVC
• Brand：Hongda
• Copper Purity：99.99%
• Transport Package：Wooden Drum
• Specification：4core 25mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：3000km,Month

Assembly /

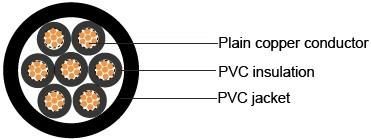

Two, Three or Four insulated conductors are laid-up together with non-hygroscopic

Inner Sheath

fillers and the assembly is bedded with an extruded layer of PVC. In case of non

armoured cables, this layer may be omitted

Armour

Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC

60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire

armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables

as per IEC 60502.

Outer

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as

Sheath

BS 6346/5467.

Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite

PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on

special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE,

LSF, CPE are available on request.

Fire

Cables can be supplied with special flame retardant PVC outer sheath to comply with

Performance

the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24,

of Cable

can also supply cables with Low Smoke Halogen Free (LSHF) material according to

Sheaths

IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Cable Parameters:

Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weight of Cable (Approx.)

mm²

mm

mm

mm

mm

Kg/Km

5x1.5

1.6

0.8

1.8

14.5

300

7x1.5

1.6

0.8

1.8

15.5

360

10x1.5

1.6

0.8

1.8

19

460

12x1.5

1.6

0.8

1.8

19.5

510

14x1.5

1.6

0.8

1.8

20

570

19x1.5

1.6

0.8

1.8

22

710

21x1.5

1.6

0.8

1.8

23

770

24x1.5

1.6

0.8

1.8

25

870

30x1.5

1.6

0.8

1.8

26

1020

40x1.5

1.6

0.8

1.8

29

1290

48x1.5

1.6

0.8

1.8

32

1520

61x1.5

1.6

0.8

1.8

35

1900

5x2.5

2

0.8

1.8

16

375

7x2.5

2

0.8

1.8

17

460

10x2.5

2

0.8

1.8

20

590

Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal PVC Sheath Thickness

Overall Diameter (Approx.)

Weightof Cable (Approx.)

mm²

mm

mm

mm

mm

Kg/Km

12x2.5

2

0.8

1.8

21

660

14x2.5

2

0.8

1.8

22

740

19x2.5

2

0.8

1.8

24

940

21x2.5

2

0.8

1.8

25

1030

24x2.5

2

0.8

1.8

27

1150

30x2.5

2

0.8

1.8

29

1370

40x2.5

2

0.8

1.8

32

1810

48x2.5

2

0.8

1.8

36

2130

61x2.5

2

0.8

1.8

39

2630

Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges.



FAQ

1. Q: Are you the factory or the trading company?
    A: We are the factory.
2. Q: How long is your guarantee Period?
    A: We usually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
    A: We can make the sample order. And usually you will charge for it.
    But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
    A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.
5. Q: What is your MOQ?
    A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.

Factory

Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.

Our Service

1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
