17vatc Made in China High Quality Ce, RoHS, ISO, CPR Eca Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：LSZH
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：17VATC
- Wire Core Material：CCS
- Certification：CE, ISO, RoHS, ETL, CPR
- Model：Coaxial
- Brand：Risun or OEM
- Conductor：CCS
- Insulation：Foam PE
- 1st Shield：Aluminum Foil
- 2ND Shield：Aluminum Braid
- Sheath：LSZH
- Transport Package：100m
- Specification：1, 13mm
- Trademark：RISUN or OEM
- Origin：Zhejiang, China
- HS Code：8544200000
- Production Capacity：6000km,Month
Description
 | ||||||||||
| DESCRIPTION | ||||||||||
| CABLE CONSTRUCTION | ||||||||||
| KX6 | ||||||||||
| Conductor | Copper Clad Steel | 1,13 +/-0,01 mm | ||||||||
| Insulation | Foam PE | 4,60 +/-0,10 mm | ||||||||
| 1st shield | Aluminium/polyester/Aluminium | |||||||||
| 2nd shield | Aluminum alloy braid 16 x 8 x 0,12mm | 60% | ||||||||
| Sheath | LSZH | 6,60+/-0,10 mm | ||||||||
| Color | White | |||||||||
| Bending radius | ≥ 8 x Diameter (mm) Installation | |||||||||
Storage temperature | -15ºC + 70ºC | |||||||||
| ELECTRICAL SPECIFICATIONS | ||
| Nominal Impedance | 75+/-3 | Ohm |
| Capacitance approx | 52+/-2 | pF/m |
| Velocity ratio | 84 | % |
| Attenuation at 20°C MHz | dB/100 m | |||
| 5 | 1,5 | |||
| 50 | 4,1 | |||
| 200 | 8.1 | |||
| 400 | 11,7 | |||
| 800 | 17,0 | |||
| 862 | 18,3 | |||
| 950 | 19,2 | |||
| 1350 | 23,3 | |||
| 1750 | 26,0 | |||
| 2150 | 30,0 | |||
| 3000 | 36,8 | |||
PACKING
100 m / coil
100 m / box

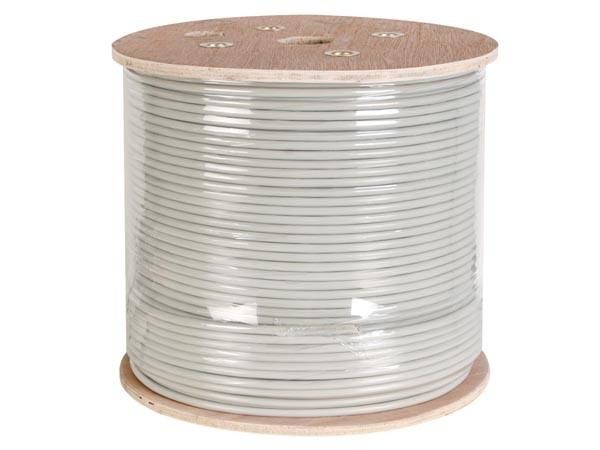

305 m / wooden drum
305 m / plastic reel
500 m / wooden drum
All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.
