• Model NO.：Type K , J , E , N , T , R , S , B
• Range of Application：Temperature Sensor
• Certification：ISO9001, CE
• Brand：No
• Insulated：Fiberglass, PVC, FEP, PFA
• Standard：ANSI, JIS, IEC
• Shielding Materials：Silver or Tinned Copper
• Packing：Wooden Case
• Usage：Industrial
• Transport Package：in Roll
• Specification：2*7,0.2
• Trademark：no
• Origin：China
• HS Code：8544491900
• Production Capacity：10, 0000

Basic Info.

Model NO. Type K / J / E / N / T / R / S / B Range of Application Temperature Sensor Certification ISO9001, CE Brand No Insulated Fiberglass, PVC, FEP, PFA Standard ANSI, JIS, IEC Shielding Materials Silver or Tinned Copper Packing Wooden Case Usage Industrial Transport Package in Roll Specification 2*7/0.2 Trademark no Origin China HS Code 8544491900 Production Capacity 10, 0000

Product Description

K Type Thermocouple Wire / Thermocouple Compensation Wire
1. Introduction:
Thermocouple Extension cable is usually used to connect thermocouple and display-controled meters in order to lower the inaccuracy caused by temperature change on the connections.

2. Construction:
Conductor: original thermocoupole alloy material, in solid wire or strand wires
Insulation Layer:
Fiberglass              (ambient temperature range 0-300ºC
 PVC                       (ambient temperature range 0-105ºC)
 Telflon                  (ambient temperature range 0-350ºC)
 Silicone rubber   (ambient temperature range 0-180ºC)
Jacket layer materials: fiberglass, PVC, teflon, silicone rubber
Galvanized layer: stainless steel, tinned brass

3.Standard: conforms to IEC584 standard.

4. Color Code:Table 1


1. Fiberglass Thermocouple Wire
           Conductors

Wire Sizes(mm)	Section(mm²)	AWG
2x1/0.2	Approx.0.03	32
2x1/0.5	Approx.0.20	24
2x1/0.65	Approx.0.33	22
2x1/0.8	Approx.0.50	20
2x7/0.2	Approx.0.22	24
2x7/0.3	Approx.0.50	20
2x6/0.32	Approx.0.48	20

Color code:

1. ANSI: American standard
2. DIN: Germany standard
3. BS:Britain standard
4. NFC: France Standard
5. JIS: Japan Standard
6. IEC:IEC standard

Types Available:  K, J, E, T, N, S

Constructure: fiberglass +fiberglass


1. Conductors are fiberglass insulated
2. Overall fiberglass jacket
3. Max. Environment temperature: 400ºC

*Constructure: fiberglass +stainless steel braided (FG+SSB)

1. Conductors are fiberglass insulated
2. Overall stainless steel braided jacket for shielding.
3. Max. Environment temperature : 400ºC

*Constructure: fiberglass +fiberglass +stainless steel braided (FG+FG+SSB)

1. Conductors are fiberglass insulated
2. Overall fiberglass jacket
3. Stainless steel braided jacket shielding.
4. Max. Environment temperature : 400ºC

*Constructure: fiberglass +teflon (FG+TF)

1. Conductors are fiberglass insulated
2. Overall teflon jacket,
3. Max. Environment temperature : 400ºC

7. How to select:Order Code: e.g.

J

2*7/0.3

FG

FG

SS

DIN

  1                           2                                  3                                     4                          5                       6

1  Thermocouple Types: K, J, E, T, N, S          RTD: Cu, Ni

2  Conductot dimension:
2*7/0.3 means 2 cores,  each core includes 7 strands wire,
each wire diameter is 0.3mm, more example: 2×7/0.2, 2×4/0.65, 2×1/0.3 etc.
Other way to symbol the conductor dimensions:
Conductor square meter: 0.25mm²
AWG standard (see*Table 2)

3 Insulated layer materials:
FG: fiberglass   PVC: PVC      TF: teflon        SR: silicone rubber

4 Jacket layer material
FG: fiberglass   PVC: PVC      TF: teflon        SR: silicone rubber

5 Galvanized Layer material:   SS: stainless steel  TB: tinned brass

6Color Code:
ANSI: American standard   DIN: Germany standard    BS:Britain standard
NFC: France Standard          JIS: Japan Standard           IEC: IEC standard

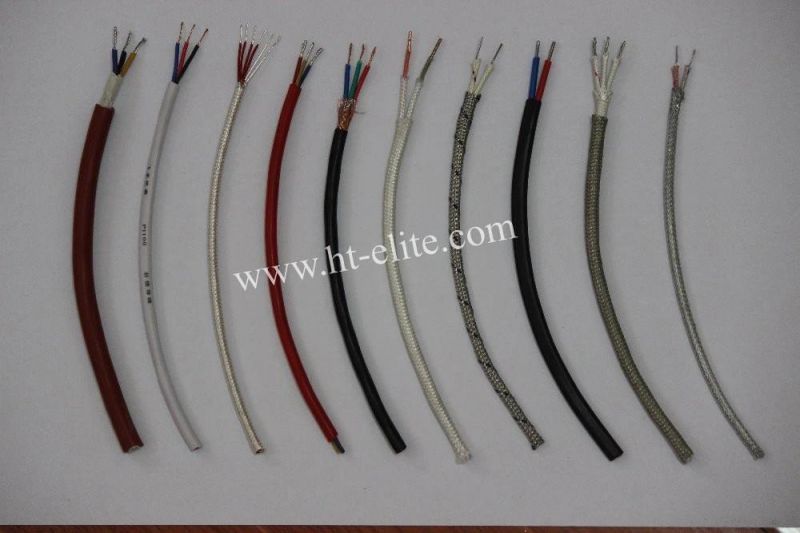

8. Photos for reference.
