• Model NO.：Type K , J , E , N , T , R , S , B
• Packing：Wooden Case
• Usage：Industrial
• Transport Package：in Roll
• Specification：2*7,0.2
• Trademark：no
• Origin：China
• HS Code：8544491900
• Production Capacity：10, 0000

Basic Info.

Model NO. Type K / J / E / N / T / R / S / B Packing Wooden Case Usage Industrial Transport Package in Roll Specification 2*7/0.2 Trademark no Origin China HS Code 8544491900 Production Capacity 10, 0000

Product Description

PTFE Thermocouple Cable Type K1. Introduction:
Thermocouple Extension cable is usually used to connect thermocouple and display-controled meters in order to lower the inaccuracy caused by temperature change on the connections.

2. Construction:
Conductor: original thermocoupole alloy material, in solid wire or strand wires
Insulation Layer:
Fiberglass              (ambient temperature range 0-300ºC
 PVC                       (ambient temperature range 0-105ºC)
 Telflon                  (ambient temperature range 0-350ºC)
 Silicone rubber   (ambient temperature range 0-180ºC)
Jacket layer materials: fiberglass, PVC, teflon, silicone rubber
Galvanized layer: stainless steel, tinned brass

3.Standard: conforms to IEC584 standard.

4. Color Code:Table 1


Teflon Thermocouple Wire
               Conductors

Wire Sizes(mm)	Section(mm²)	AWG
2x1/0.2	Approx.0.03	32
2x1/0.5	Approx.0.20	24
2x1/0.65	Approx.0.33	22
2x1/0.8	Approx.0.50	20
2x7/0.2	Approx.0.22	24
2x7/0.3	Approx.0.50	20
2x6/0.32	Approx.0.48	20

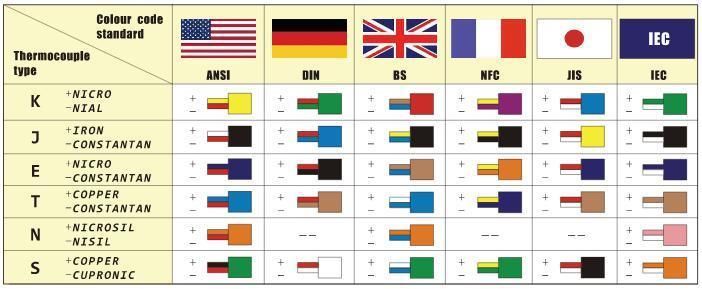

Color code:

1. ANSI: American standard
2. DIN: Germany standard
3. BS:Britain standard
4. NFC: France Standard
5. JIS: Japan Standard
6. IEC:IEC standard

Type available:  K, J, E, T, N, S

1 *Constructure: Teflon +Teflon (TF + TF)

1. Conductors are teflon insulated
2. Overall teflon jacket
3. Max. Environment temperature : 200ºC

2. *Constructure: Teflon +Teflon (TF + TF Twisted )

1. Conductors are teflon insulated
2. Two wires twisted
3. Overall teflon jacket,
4. Max. Environment temperature : 200ºC

3. *Constructure: Teflon + Stainless Steel Braided (TF + SSB )

1. Conductors are teflon insulated
2. Overall stainless steel braided jacket.
3. Max. Environment temperature : 200ºC

4. *Constructure: Teflon + Stainless Steel Braided+ Teflon  (TF + SSB +TF )

1. Conductors are teflon insulated
2. Stainless steel braided for shieding in the middle
3. Overall teflon jacket.
4. Max. Environment temperature : 200ºC

7. How to select:Order Code: e.g.

J

2*7/0.3

FG

FG

SS

DIN

  1                           2                                  3                                     4                          5                       6

1  Thermocouple Types: K, J, E, T, N, S          RTD: Cu, Ni

2  Conductot dimension:
2*7/0.3 means 2 cores,  each core includes 7 strands wire,
each wire diameter is 0.3mm, more example: 2×7/0.2, 2×4/0.65, 2×1/0.3 etc.
Other way to symbol the conductor dimensions:
Conductor square meter: 0.25mm²
AWG standard (see*Table 2)

3 Insulated layer materials:
FG: fiberglass   PVC: PVC      TF: teflon        SR: silicone rubber

4 Jacket layer material
FG: fiberglass   PVC: PVC      TF: teflon        SR: silicone rubber

5 Galvanized Layer material:   SS: stainless steel  TB: tinned brass

6Color Code:
ANSI: American standard   DIN: Germany standard    BS:Britain standard
NFC: France Standard          JIS: Japan Standard           IEC: IEC standard

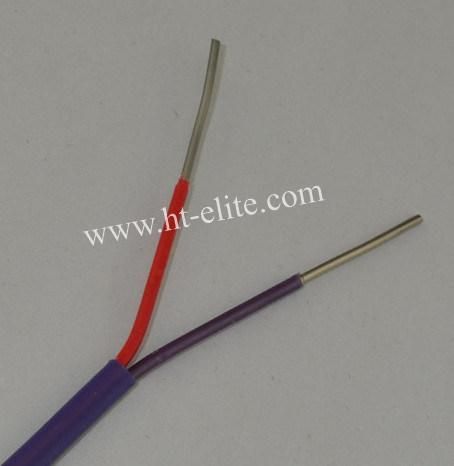

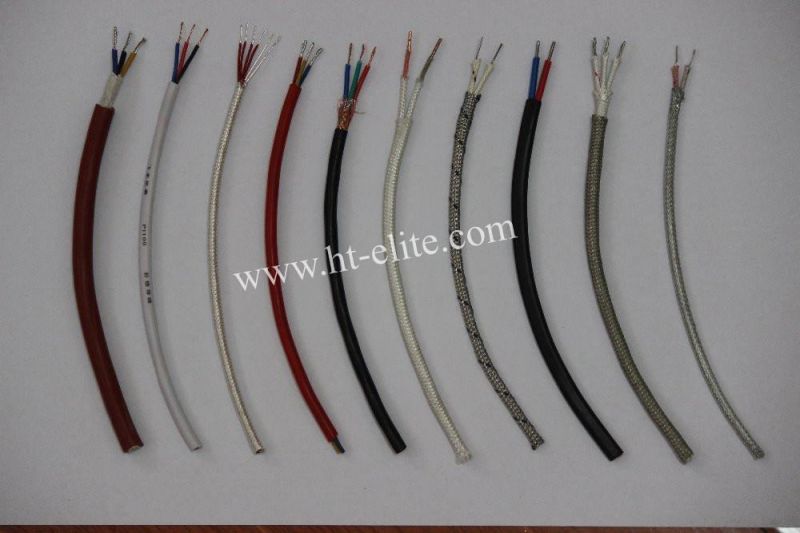

8. Photos for reference.
