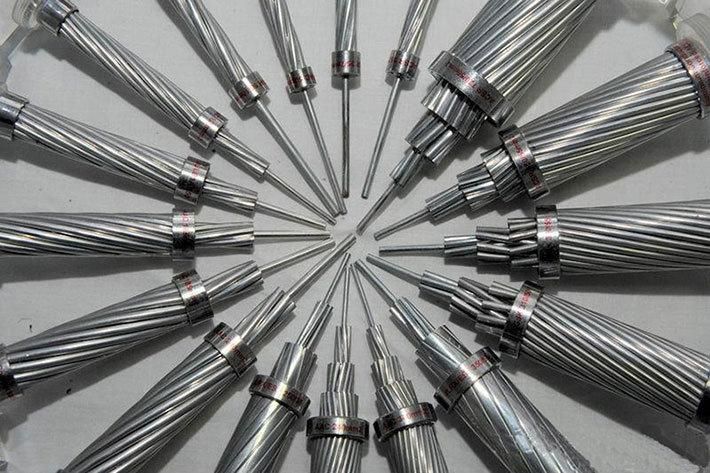

ACSR Aluminum Conductor Steel Reinforced ACSR Cable
Luoyang Sanwu Cable Co., Ltd.- Application：Overhead
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：ACSR
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：ACSR
- Brand：Dayuan
- Transport Package：Wooden Drum
- Specification：1.1*1.1*0.8m,roll 1.8*1.8*1.1m,roll
- Trademark：Luoyang dayuan cable
- Origin：Luoyang City, Henan Province, China
- HS Code：7614100000
- Production Capacity：8000kilometers,Month
Description
Corefficient
of Linear
ExpansionMM² MM MM² MM kg/km Ω/km daM hbar /°C Mosquito 35 7/2.59 37 7.8 101 0.7762 603 5900 23×10-6 Ant 50 7/3.10 52.83 9.3 145 0.5419 828 5900 23×10-6 Fly 60 7/3.40 63.55 10.2 174 0.4505 990 5900 23×10-6 Wasp 100 7/4.39 106 13.17 290 0.2702 1600 5900 23×10-6 Homet 150 19/3.25 157.6 16.25 434 0.1825 2570 5600 23×10-6 Chafer 200 19/3.78 213.2 18.9 587 0.1349 3240 5600 23×10-6 Cockroach 250 19/4.22 265.7 21.1 731 0.1083 4040 5600 23×10-6 Butterfly 300 19/4.65 322.7 23.25 888 0.08916 4875 5600 23×10-6 Centipede 400 37/3.78 415.5 26.46 1145 0.06944 6310 5600 23×10-6
Factory Address:
Yichuan Electricity Industry zone, Luoyang City, Henan Province, China
Test Machine:
extruding machine, cable-former, drawbench and so on.

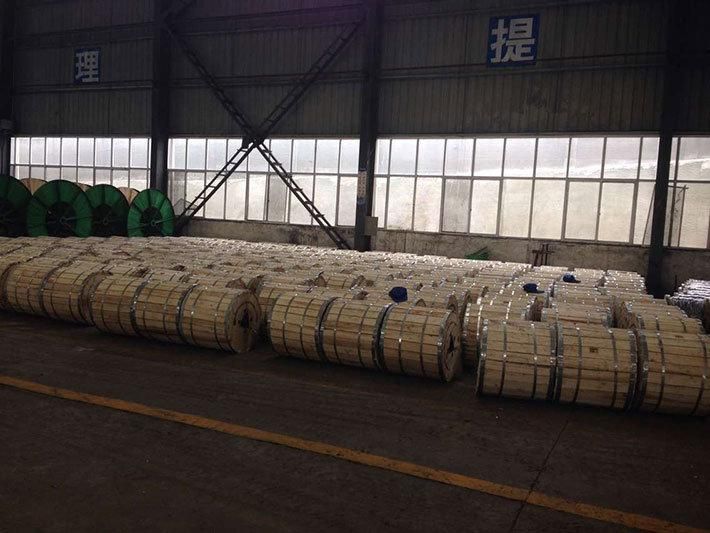

Package:
Wooden drum or 100m/roll
Customer:
American, Australia, India, South Africa, South America...
