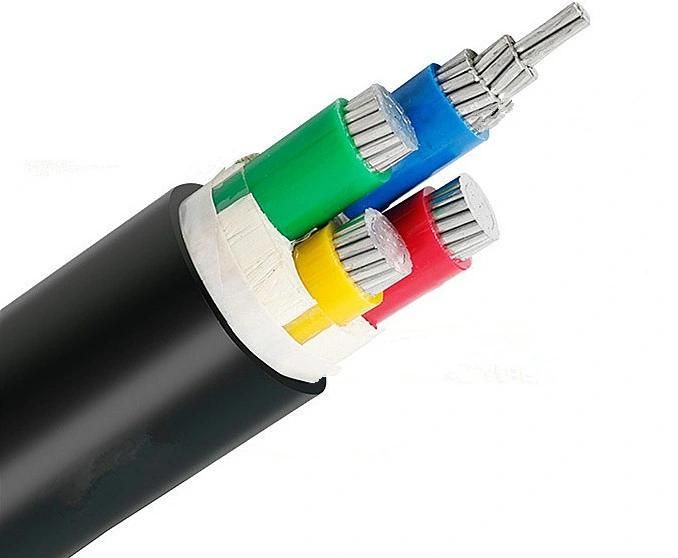

70mm Aluminium Cable Wire LV Underground 4c 70mm2 XLPE Power Cable
Henan Hongda Cable Co., Ltd.- Application：Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：4c 70mm2 xlpe power cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC
- Model：Yjlv
- Brand：OEM
- Transport Package：Wooden Drum
- Trademark：OEM
- Origin：China(Mainland)
- HS Code：8544492100
- Production Capacity：500 Kilometer,Month
Description
Colour Code (2)
Other colours can be manufactured upon request.
Assembly / Inner Covering
The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores,
a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder
is permitted before application of an extruded inner covering. The materials used for inner coverings and fillers shall be
suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables,
the inner covering and fillers shall also be halogen free compound.
Lead Sheath
lead or lead alloy and shall be applied as a reasonably tight-fitting seamless tube.
Seperation Sheath
The seperation sheath shall be of extruded PVC Type ST2 as per IEC 60502-1, or other material refer to outer
sheath material.
Armour
Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double
aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.
Outer Sheath
Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free
compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available
on request.
Packing shipping
If you have another question, pls feel free to contact us below
Tina Sales Manager
