• Model NO.：Covered Aluminum Cables - 15kV Voltage
• Wire Core Material：Aluminium Conductor or aluminium Alloy
• Certification：ISO, CCC, CE, UL
• Model：Yjv32
• Brand：Yifang
• Certificate：ISO;Ce;UL;Kema
• Transport Package：Wood Packing by Sea
• Specification：1000meter per drum
• Trademark：Yifang
• Origin：China
• HS Code：8544601200
• Production Capacity：300km Per Month

Basic Info.

Model NO. Covered Aluminum Cables - 15kV Voltage Wire Core Material Aluminium Conductor or aluminium Alloy Certification ISO, CCC, CE, UL Model Yjv32 Brand Yifang Certificate ISO;Ce;UL;Kema Transport Package Wood Packing by Sea Specification 1000meter per drum Trademark Yifang Origin China HS Code 8544601200 Production Capacity 300km Per Month

Product Description

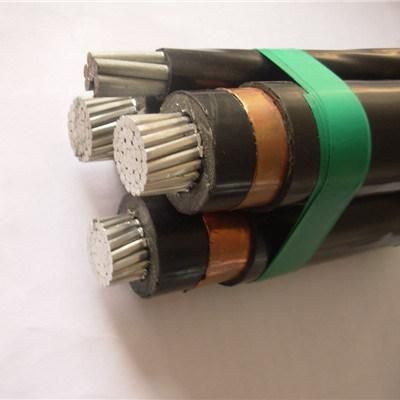

The XLPE 15V aluminum conductor insulated cable features a compact round conductor typically made of aluminum strands, blocked or not, and comes with a cross-linked polyethylene (XLPE) cover in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays.

As XLPE is a thermoset material, the 15KV aluminum conductor insulated cable enables operation up to 90°C continuously all while delivering higher capacity when compared to the thermoplastic materials.

Main applications for insulated aluminum cables is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These overhead cables are an excellent technical and economic option for companies all over the world, since they have such advantages as low manufacturing cost and ease of installation.

ross section	No. of wires	Conductor dia.	Overall Diameter	Minimum breaking load	Approx. weight	Max. DC-resistance at 20°C	Ampacity 90°C
[mm²]		[mm]	[mm]	[kgf]	[kg/km]	[Ohm/km]	[A]
35	7	7.1	13.6	464	190	0.868	187
50	7	8.2	14.7	663	235	0.641	225
70	19	9.7	16.2	928	315	0.443	282
95	19	11.5	18	1259	400	0.320	345
120	19	12.9	19.4	1591	500	0.253	401
150	19	14.2	20.7	1988	580	0.206	456
185	37	16.2	22.6	2452	695	0.164	525
240	37	18.4	24.9	3182	875	0.125	625
300	37	20.7	27.1	3977	1070	0.100	721
