• Model NO.：Green & yellow cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：Cu,PVC
• Brand：Hongda
• Rated Voltage：1000V
• Transport Package：Roll or Drum, Export Package
• Specification：16mm to 400mm
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：6000km,Month

Basic Info.

Model NO. Green & yellow cable Wire Core Material Bare Copper Wire Certification ISO, CCC, SGS Model Cu/PVC Brand Hongda Rated Voltage 1000V Transport Package Roll or Drum, Export Package Specification 16mm to 400mm Trademark Hongda Origin China HS Code 8544492100 Production Capacity 6000km/Month

Product Description

Get more information connect with:

Vivian Yuan
Mobile: +86 158 3829 0725

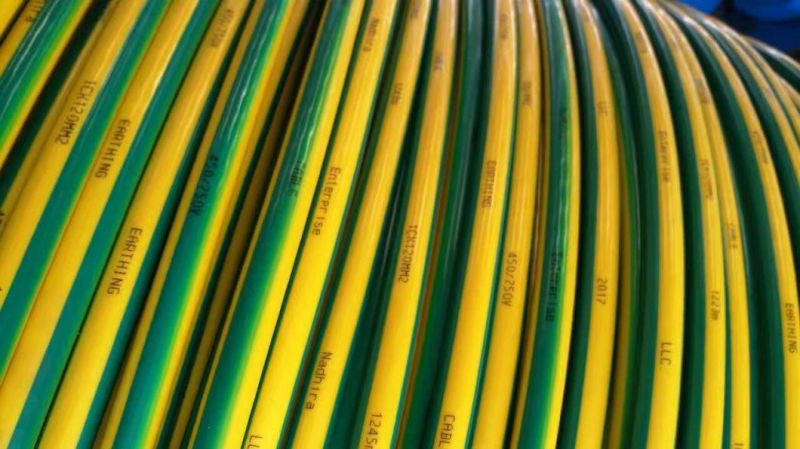

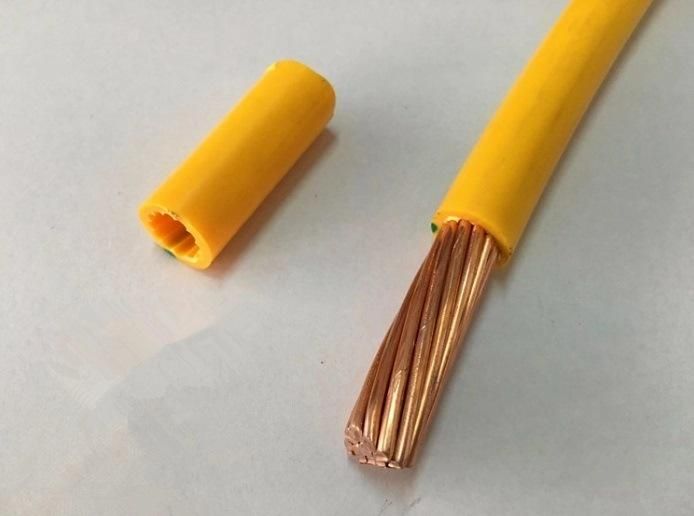

35mm Green & yellow insulated stranded copper conductor ground cable

A range of single core stranded class 2 plain annealed copper conductors with a heat resistant polyvinyl chloride (PVC) outer sheath. These non-armoured single insulation cables are often referred to as 6491X and are manufactured in accordance with specification BS 6004.

GREEN & YELLOW PVC INSULATED COPPER CONDUCTOR: SIZES AVAILABLE
Soft Drawn:
6mm2 (7 x 1.04) | 95mm2 (7 x 2.52)
10mm2 (7 x 1.35) | 120mm2 (37 x 2.03)
16mm2 (7 x 1.70) | 150mm2 (37 x 2.25)
25mm2 (7 x 2.14) | 185mm2 (37 x 2.52)
35mm2 (7 x 2.52) | 240mm2 (61 x 2.25)
50mm2 (19 x 1.78) | 300mm2 (61 x 2.52)
70mm2 (7 x 2.14) | 400mm2 (61 x 2.85)

Hard Drawn:
35mm2 (7 x 2.52)
50mm2 (7 x 3)
70mm2 (7 x 3.55)
95mm2 (37 x 1.78)

CSA (mm²)	Stranding No./Dia (mm)	Weight (kg/m)
16	7 / 1.70	0.15
25	7 / 2.14	0.23
35	7 / 2.52	0.32
50	19 / 1.78	0.43
70	19 / 2.14	0.62
95	19 / 2.52	0.86
120	37 / 2.03	1.09
150	37 / 2.25	1.33
185	37 / 2.52	1.67
240	61 / 2.25	2.20
300	61 / 2.52	2.76
400	61 / 2.85	3.53

Packing

A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
