Low Voltage Aluminium Wire Bare Alloy Porter Axka Cable 3X35+16+50mm
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Industrial
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：N,a
- Material Shape：Round Wire
Base Info
- Model NO.：AXKA Cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC, SGS
- Model：Amka Cable
- Brand：Hongda
- Rated Voltage：600,1000V
- Transport Package：Export Wooden Drum
- Specification：10mm to 150mm
- Trademark：Hongda or OEM
- Origin：China
- HS Code：8544492100
- Production Capacity：2000km,Month
Description
2. AXKA Cable Application
Low voltage (0.6-1kV) Aluminium wire Bare Alloy Porter AXKA Cable used in power supply in power transmission and distribution line.
It is prefered to use of ABC cables instead of uninsulated conductors at low voltage networks. ABC cables are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.
3. AXKA Cable Standard
SFS 2200 HD 626-5D.
We can also manufacture AXKA Cable according to customer's special requirements.

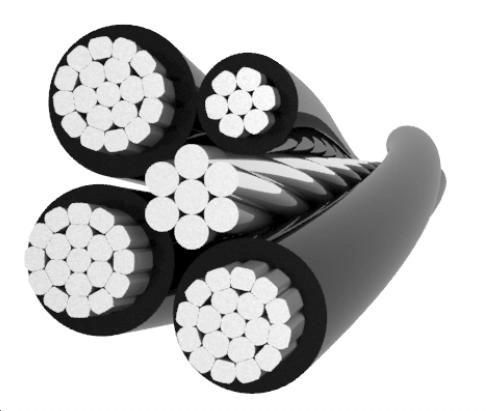

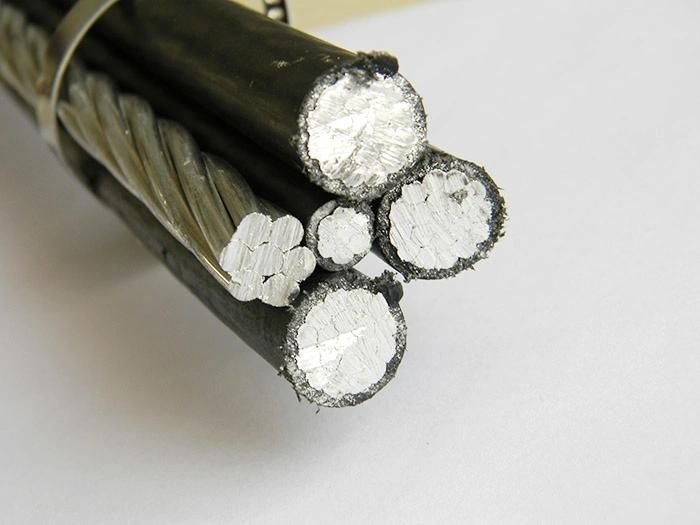

4. Construction
The basic construction is as follows:
3 power cores consisting of standard aluminum conductors, insulated with XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanized steel wire also.
The purpose of messenger wire is:
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
OPTIONS
AXKA Cable can be manufactured with the following options:
- Phase Conductor
- Other voltage
- Other section
- Netural conductor
- Insulation Thickness
| Cable type | Phase area | Messenger area | Lighting area | Overall diameter whole cable (approx) | Net weight of cable, nominal value | Maximum DC resistance of phase 20ºC | Maximum DC resistance of messenger 20ºC |
| TWISTED OVERHEAD CABLE AXKA 1 X 16+25 | 16 | 25 | - | 11 | 135 | 1.91 | 1.38 |
| TWISTED OVERHEAD CABLE AXKA 3 X 16+25 | 16 | 25 | - | 20 | 270 | 1.91 | 1.38 |
| TWISTED OVERHEAD CABLE AXKA 4 X 16+25 | 16 | 25 | - | 22 | 330 | 1.91 | 1.38 |
| TWISTED OVERHEAD CABLE AXKA 3 X 25+35 | 25 | 35 | - | 23 | 390 | 1.2 | 0.986 |
| TWISTED OVERHEAD CABLE AXKA 3 X 25+16+35 | 25 | 35 | 16 | 25 | 465 | 1.2 | 0.986 |
| TWISTED OVERHEAD CABLE AXKA 3 X 35+50 | 35 | 50 | - | 27 | 530 | 0.868 | 0.72 |
| TWISTED OVERHEAD CABLE AXKA 3 X 35+16+50 | 35 | 50 | 16 | 29 | 610 | 0.868 | 0.72 |
| TWISTED OVERHEAD CABLE AXKA 3 X 35+70 | 35 | 70 | - | 31 | 670 | 0.868 | 0.493 |
| TWISTED OVERHEAD CABLE AXKA 3 X 50+70 | 50 | 70 | - | 31 | 700 | 0.641 | 0.493 |
| TWISTED OVERHEAD CABLE AXKA 3 X 70+95 | 70 | 95 | - | 36 | 1000 | 0.443 | 0.363 |
| TWISTED OVERHEAD CABLE AXKA 3 X 120+95 | 120 | 95 | - | 42 | 1500 | 0.253 | 0.363 |
