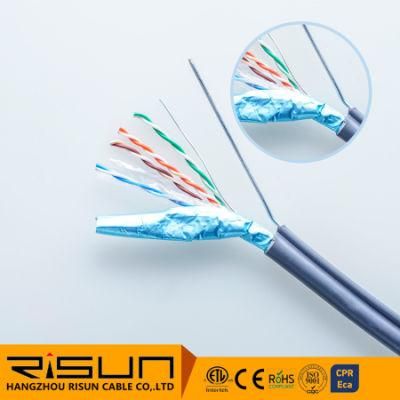

Manufacturer Conductor Network Cable FTP Cat5e Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Cat5e
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：FTP Cat5e Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, UL, ETL SGS CPR
  • Model：FTP Cat5e
  • Brand：Risun or OEM
  • Transport Package：305m,Wooden Reel, 1 Reel,CTN.
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa


Electrical Properties:

Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤ 2%Insulation Resistance≥5000 MΩ·KMCapacitance ≤5.6 nF/100mImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%


Technical Performance:

   Frequency         Attenuation        RL    Next       PS Next       (MHz)          (dB/100m)       (dB)     (dB)          (dB)           4               4.1        23.0    56.3          53.3           8               5.8        24.5    51.8          48.8         10               6.5        25.0    50.3          47.3         16               8.2        25.0    47.2          44.2         20               9.3        25.0    45.8          42.8         25              10.4        24.3    44.3          41.3       31.25              11.7        23.6    42.9          39.9        62.5              17.0        21.5    38.4          35.4        100              22.0        20.1    35.3          32.3

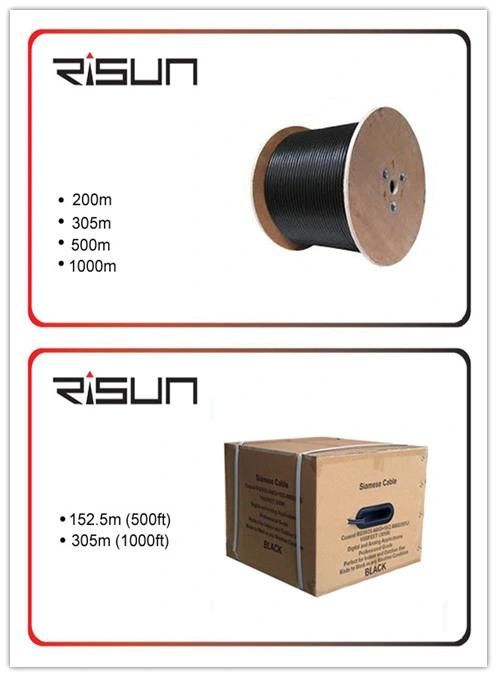

Packing:
Manufacturer Conductor Network Cable FTP Cat5e Cable

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.
