• Model NO.：thhn
• Wire Core Material：AA-8000 Series Aluminum
• Certification：ISO, CCC, SGS
• Model：Thhn Thwn
• Brand：Hongda Cable
• Product Features：UV Sunlight Resistance and CT Use "Cable Tray"
• Transport Package：100m Per Roll, 150m, or 500m
• Specification：1.6mm2 to 500mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：50km,Day

Basic Info.

Model NO. thhn Wire Core Material AA-8000 Series Aluminum Certification ISO, CCC, SGS Model Thhn Thwn Brand Hongda Cable Product Features UV Sunlight Resistance and CT Use "Cable Tray" Transport Package 100m Per Roll, 150m, or 500m Specification 1.6mm2 to 500mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 50km/Day

Product Description

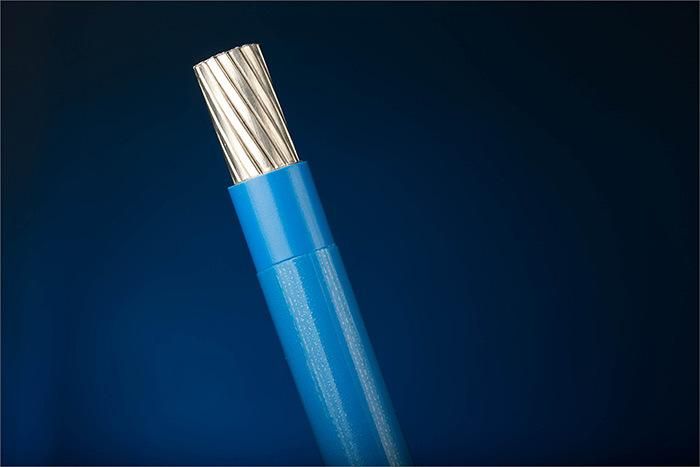

Aluminum THHN/THWN-2/T90 600V PVC/Nylon Insulation


Application
THHN / THWN-2 / T90 cables are primarily use for power distribution. The cables may be used in wet or dry locations, with conductor temperatures not exceeding 90ºC. Voltage rating for cable is 600V.

Specifications

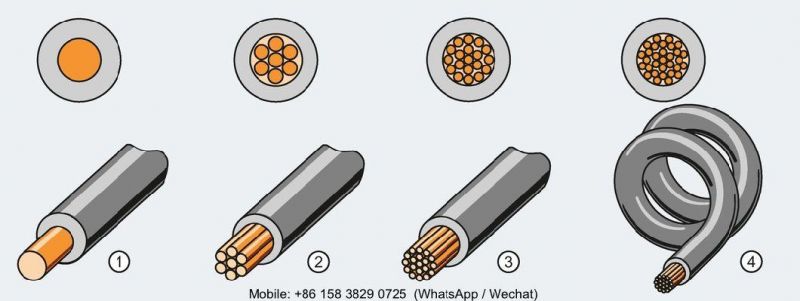

Conductors - Compact soft drawn bare 8000 series aluminum, with Class B stranding.

Insulation
Low coefficient of friction ("slick"), abrasion, heat and moisture resistant polyvinyl chloride PVC.

Jacket: A clear abrasion, heat, moisture resistant and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple and green.


Technical Data of Type THHN Building Wire

Size AWG/KCM	Conductor Diameter (inches)	Insulation Thickness (inches)	Jacket Thickness (inches)	Overall Diameter (inches)	Weight (Ibs/1000')	Ampacity at 90C*
6	0.169	0.03	0.005	0.239	38	55
4	0.213	0.04	0.006	0.305	62	75
2	0.268	0.04	0.006	0.36	91	100
1	0.299	0.05	0.007	0.413	117	115
1/0	0.335	0.05	0.007	0.45	141	135
2/0	0.378	0.05	0.007	0.49	172	150
3/0	0.423	0.05	0.007	0.537	210	175
4/0	0.476	0.05	0.007	0.589	257	205
250	0.520	0.06	0.008	0.658	311	230
300	0.571	0.06	0.008	0.706	365	260
350	0.614	0.06	0.008	0.752	418	280
400	0.657	0.06	0.008	0.795	471	305
500	0.736	0.06	0.008	0.872	576	350
600	0.816	0.07	0.009	0.971	700	385
700	0.877	0.07	0.009	1.035	804	425
750	0.909	0.07	0.009	1.066	856	435
900	0.999	0.09	0.009	1.139	1013	480
1000	1.059	0.09	0.009	1.218	1117	500

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

We are looking forward to your inquiry and nice cooperation.
