• Model NO.：T-208H
• Splicing Time：10 Secs
• Transport Package：CTN, Hard Carrying Case
• Specification：35cm(W)*40cm(H)*50cm(L)
• Trademark：SKYCOM
• Origin：Nanjing, China
• HS Code：8515809090
• Production Capacity：500PCS,Month

Basic Info.

Model NO. T-208H Splicing Time 10 Secs Transport Package CTN/ Hard Carrying Case Specification 35cm(W)*40cm(H)*50cm(L) Trademark SKYCOM Origin Nanjing, China HS Code 8515809090 Production Capacity 500PCS/Month

Product Description

      Skycom T-208H China Fusion Splicer in Good Price and High Quality
                                                    Description
>  Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
>  We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T-208H is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
Key Features
>  5 inches high resolution colorful LCD display, image can be turned according to position
>  Average splice time: 9 seconds
>  Average tube-heat time: 25 seconds
>  Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
>  X or Y axis Separately views with 400 times magnification, or Simultaneously 220 times
>  Cutting-edge technology for image processing
>  New developed technology providing strong wind and dust resistance
>  Splicing mode: Auto & Manual & Full-Auto
>  USB Port
>  Storing 6,000 groups of latest splice results
>  New technology of fiber core alignment, enhanced accuracy
>  New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
>  New Multipurpose 1+N fixture (Patented technology)
* 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector - T-208HF).
Specification

Applicable Fibers	SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss	≥60dB
Tension Test	2.0N(200gf)(Standard)
Typical splicing time	9 seconds
Typical heating time	25 seconds
Splicing Program	50 groups
Protection Sleeve Length	20mm, 40mm, 60mm
Operating Language	Chinese, English, French, Portuguese, Spanish
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2AH
Monitor	5 inches high resolution colorful LCD display
Fiber Image Magnification	X or Y axis Separately views 400 times magnification, or Simultaneously 220 times
Storage of Splice Result	6,000 groups of latest splice results
Splicing Model	Auto & Manual & Full Auto
Optical Fiber Fixture	3-in-1 cutting fixture; Multipurpose 1+N fixture (T-208HF, for SC/LC/FC connector)
Dimensions	130(W)*135(D)*130(H)mm;                 Package size: 53*32*30cm
Weight	1.74kg+0.38kg (battery weight)=2.12kg;        Package G.W.: 6.03 kg
Applicable Fibers	SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)

Standard Package

No.	Item	1
1	Machine T-208H	1
2	Fiber Cleaver	1
3	Fiber Stripper	1
4	AC Adaptor (Charger)	1
5	Battery	1
6	Spare Electrodes	1
7	Cooling Tray	1
8	Instruction CD	1
9	Quick Reference Guide	1
10	Rubber-insulated wire stripping pliers	1
11	Rubber-insulated wire 3-in-1 cutting fixture	1
12	Carrying Case with Carrying Strap	1

*Custom-made Professional anti-shock tool kit (case) with sponge inside
*Export-standard Carton Box with PE Foam inside (53*32*30cm)
*T-208HF = T-208H + SOC fixture(for SC/LC/FC connector)


Pictures

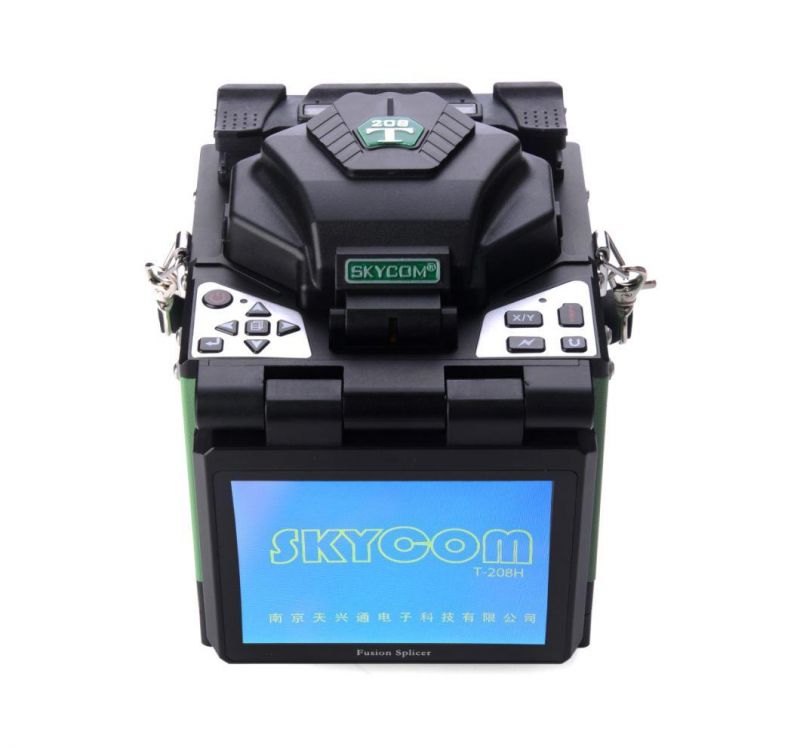

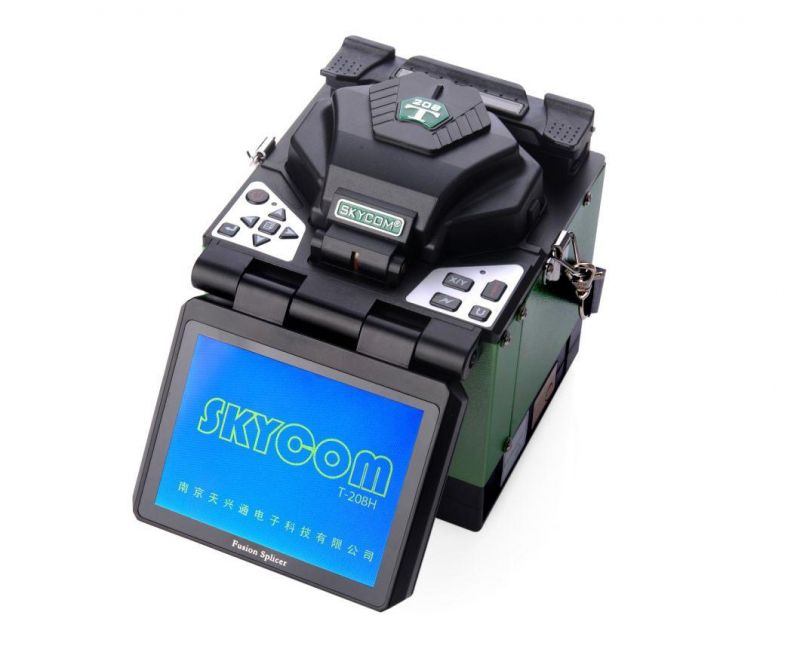

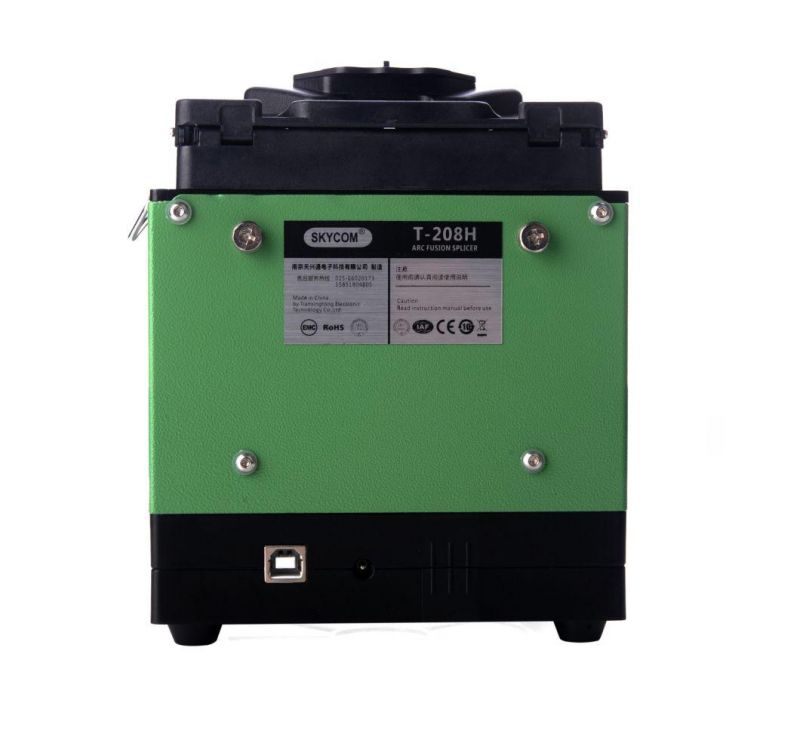

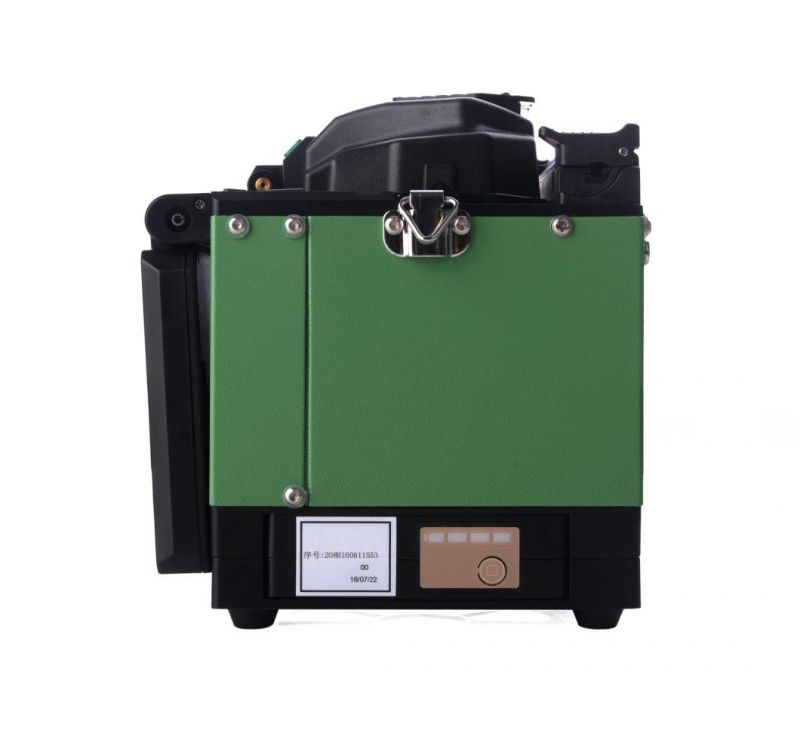

     T-208H Machine                                                                           Package
