• Model NO.：1-CYKFY Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：1-Cykfy
• Brand：Hongda
• Standard：IEC 60332,1, BS5307
• Rated Voltage：0.6,1 Kv AC
• Transport Package：Drum or as Customer Require
• Specification：0.5mm2 to 2.5mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：900km,Month

Basic Info.

Model NO. 1-CYKFY Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, SGS Model 1-Cykfy Brand Hongda Standard IEC 60332,1, BS5307 Rated Voltage 0.6/1 Kv AC Transport Package Drum or as Customer Require Specification 0.5mm2 to 2.5mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 900km/Month

Product Description

1-CYKFY Power Control Cable with Copper foil wrapped Screening




1-CYKFY Power Control Cable with Copper foil wrapped Screening - Applications

Usage:

The power cables with copper screening are used mainly in distribution points of high voltage and very high voltage, for connecting in systems where the resistance to interference (EMC) is required, in the circuits of pulsed supply with frequency converters and everywhere that higher requirement against penetration or radiation of interfering signals is demanded. It is possible to use them in dry or wet environment and for placement into the soil.

The cables can be placed in the environment with the explosion danger (zone 1, 2) providing compliances with the conditions of intrinsic safety according to 60079-11.

Power cable from PVC with copper screening meeting the requirements of EMC

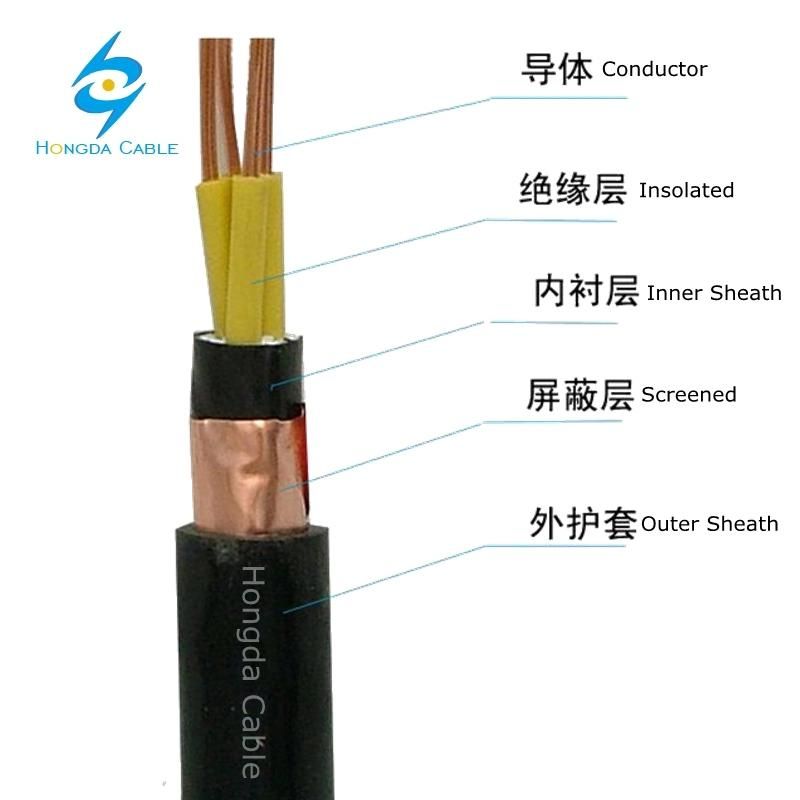

Construction:

1. Conductor  Cu conductor of the category 1 or 2 according to IEC 60228

2. Insulation    PVC

3. Cable core   wrapping by PET foil

4. Bedding      PVC

5. Screening    double Cu foil wrapped in opposite directions

6. Sheath         PVC


Technical parameters:

Rated voltage U0/U:                                                 0,6/1 kV AC

Highest voltage of the Um system:                           1,2 kV AC

Testing voltage between cores:                                 4 kV AC 5 min

Testing voltage between core and screening:            4 kV AC 5 min

Surrounding temperatures (fixed placement):           - 30°C up to + 70°C

Surrounding temperatures (during installation):       -5°C up to +50°C

Minimum bending radius (fixed placement):            10D


Basic characteristics:

Self-extinguishing PVC:                               EN 60332-1-2

Colour marking of cores:                               HD 308 S2

Sheath colour:                                                black

1-CYKFY Power Control Cable Parameter

Cores x  Section Area	Insulation  Thickness	Jacket  Thickness	Maximum  resistance at 20ºC	Cable  Diameter	Copper  approx. weight	Cable Approx.  Weight	Packing Length
mm2	mm	mm	Ω/km	mm	kg/km	kg/km	m
7 x 1	0.6	1.2	18.10	13.00	115	270	2750
12 x 1	0.6	1.2	18.10	15.50	175	400	2500
19 x 1	0.6	1.2	18.10	17.50	248	520	1750
2 x 1.5	0.7	1.2	12.10	11.00	70	190	2000
3 x 1.5	0.7	1.2	12.10	11.50	86	210	2000
4 x 1.5	0.7	1.2	12.10	12.50	110	250	2000
5 x 1.5	0.7	1.2	12.10	13.50	125	280	2000
7 x 1.5	0.7	1.2	12.10	4.50	153	340	2000
12 x 1.5	0.7	1.2	12.10	17.50	239	510	1750
14 x 1.5	0.7	1.4	12.10	18.50	297	560	1750
19 x 1.5	0.7	1.4	12.10	21.00	347	720	1250
24 x 1.5	0.7	1.4	12.10	24.00	432	1000	1000
27 x 1.5	0.7	1.4	12.10	24.50	477	1000	750
37 x 1.5	0.7	1.4	12.10	27.50	622	1250	750
48 x 1.5	0.7	1.6	12.10	31.50	750	1600	500
2 x 2.5	0.7	1.2	7.41	12.00	93	220	1500
3 x 2.5	0.7	1.2	7.41	12.50	119	260	1500
4 x 2.5	0.7	1.2	7.41	13.50	146	310	1500
5 x 2.5	0.7	1.2	7.41	14.50	173	350	1500
7 x 2.5	0.7	1.2	7.41	15.50	223	420	1500
12 x 2.5	0.7	1.4	7.41	20.00	358	680	1500
19 x 2.5	0.7	1.4	7.41	22.50	529	930	1000
24 x 2.5	0.7	1.4	7.41	26.50	663	1310	750
27 x 2.5	0.7	1.4	7.41	27.00	680	1400	750
2 x 4	0.7	1.2	4.61	13.50	125	290	1000
3 x 4	0.7	1.2	4.61	14.00	165	330	1000
4 x 4	0.7	1.2	4.61	15.00	206	400	1000
5 x 4	0.7	1.2	4.61	16.00	247	460	1000
7 x 4	0.7	1.2	4.61	17.50	325	560	1000
12 x 4	0.7	1.4	4.61	22.50	530	920	1000
2 x 6	0.7	1.2	3.08	14.50	167	350	1500
3 x 6	0.7	1.2	3.08	15.00	210	410	1500
4 x 6	0.7	1.2	3.08	16.00	285	500	1500
5 x 6	0.7	1.2	3.08	17.50	345	590	1500
7 x 6	0.7	1.4	3.08	18.20	430	719	1500
3 x 10	0.8	1.2	1.83	17.50	345	580	1000
3 x 10	0.8	1.4	1.83	18.50	441	710	1000
4 x 10	0.8	1.4	1.83	20.50	540	870	750
5 x 16	0.8	1.4	1.15	20.00	520	830	1500
4 x 16	0.8	1.4	1.15	21.50	671	1020	750
5 x 16	0.8	1.4	1.15	23.50	825	1230	750

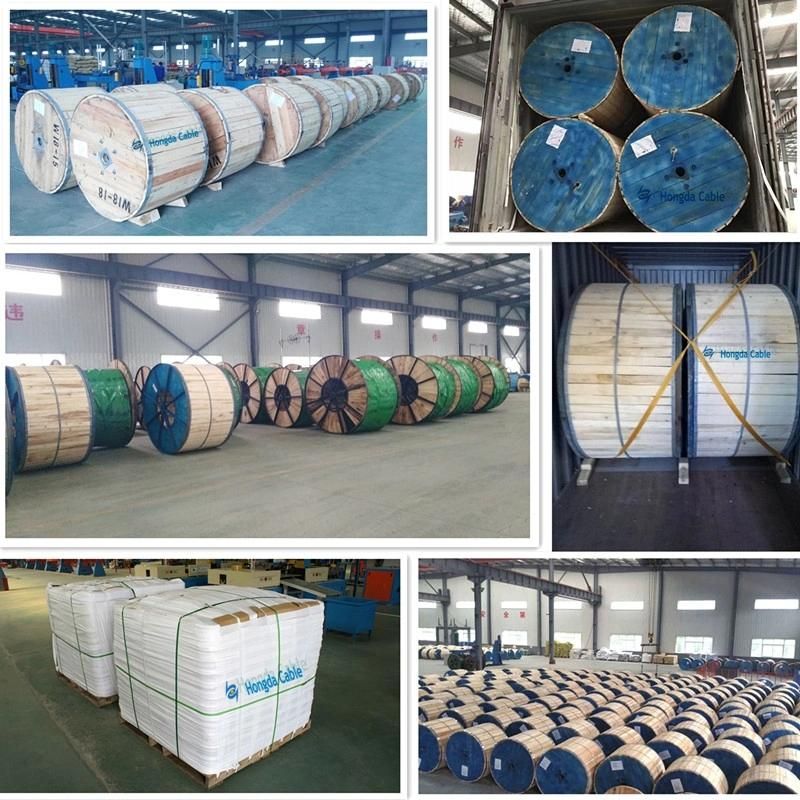

Packing & Shipping:

Packing:

Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping:
Port: Tianjin, Qingdao, or other ports as per your requireents.

Sea freight:
FOB/C&F/CIF quotation are all available.
