0.6/1kv Flame Retardant Ground Vinyl-Insulated Tfr-Gv Cable in Tray
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground, in Conduit, in Cable Trunking
- Conductor Material：Red Copper Wire
- Sheath Material：Bare
- Insulation Material：PE
Base Info
- Model NO.：TFR-GV
- Material Shape：Round Wire
- Range of Application：in Grounding Electric Appliances
- Certification：ISO9001, CCC, SGS
- Brand：Hongda
- Central Conductor：Fine Stranded Copper
- Insulation：Vinyl-Insulated Cable (XLPE , PE)
- Transport Package：a: Roll of 100 M B: Reel of 1500 M.
- Specification：0.5mm2 to 630mm2
- Trademark：Hongda or as customer require
- Origin：China
- HS Code：8544492900
- Production Capacity：1500km,Month
Description
Nominal Cross Sectional area
(mm2)Conductor Thickness of insulation
(mm) Overall Diameter Cable weight (approx.)
Kg/Km Standard length
(m) Number of wire
(min) Diameter Approx.
(mm) Lower Limit
(mm) Upper Limit
(mm) 1.5 1/1.38 1.38 0.7 2.6 3.2 22 100/C 1.5 7/0.53 1.50 0.7 2.7 3.3 24 100/C 2.5 1/1.78 1.78 0.8 3.2 3.9 32 100/C 2.5 7/0.67 2.01 0.8 3.3 4.0 35 100/C 4 1/2.25 2.25 0.8 3.6 4.4 49 100/C 4 7/0.85 2.55 0.8 3.8 4.6 50 100/C 6 1/2.76 2.76 0.8 4.1 5.0 75 100/C 6 7/1.04 3.12 0.8 4.3 5.2 80 100/C 10 7/1.35 4.05 1.0 5.6 6.7 130 100/C 16 7 (C. C) 5.10 1.0 6.4 7.8 180 100/C 25 7 (C. C) 6.42 1.2 8.1 9.7 280 100/C 35 19 (C. C) 4.59 1.2 9.0 10.9 380 100/C 50 19 (C. C) 8.90 1.4 10.6 12.8 500 500/D 70 19 (C. C) 10.7 1.4 12.1 14.6 700 500/D 95 19 (C. C) 12.6 1.6 14.1 17.1 1000 500/D 120 37 (C. C) 14.21 1.6 15.6 18.8 1200 500/D 150 37 (C. C) 15.75 1.8 17.3 20.9 1500 500/D 185 37 (C. C) 17.64 2 19.3 23.3 1900 500/D 240 61 (C. C) 20.25 2.2 22.0 26.6 2500 500/D 300 61 (C. C) 22.68 2.4 24.5 29.6 3100 500/D 400 61 (C. C) 25.65 2.6 27.5 33.2 3900 500/D 500 61 (C. C) 28.80 2.8 31.2 37.6 4920 500/D 630 127 (C. C) 32.76 2.8 35.2 41.7 6260 500/D
2. Tolerance of pulley is ±5%

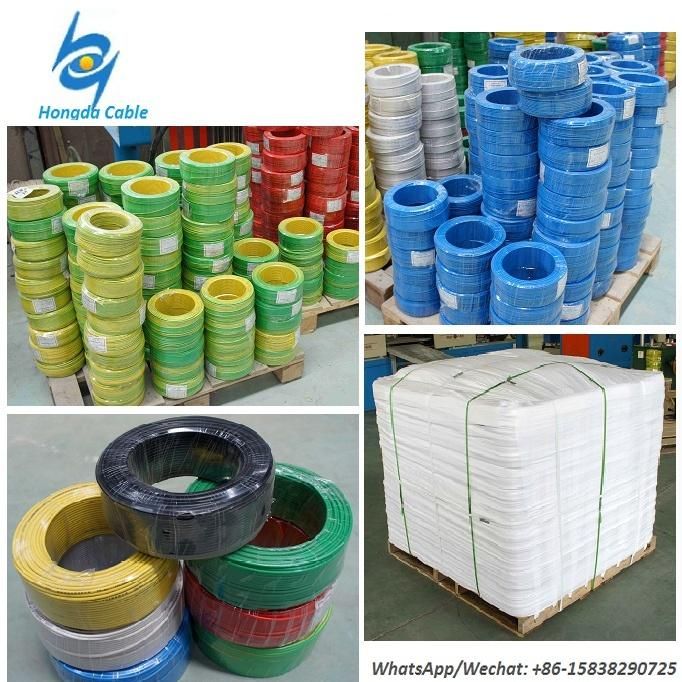

0.6/1kV Tray Flame-Retardant Insulated Wire for Grounding Cable PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.

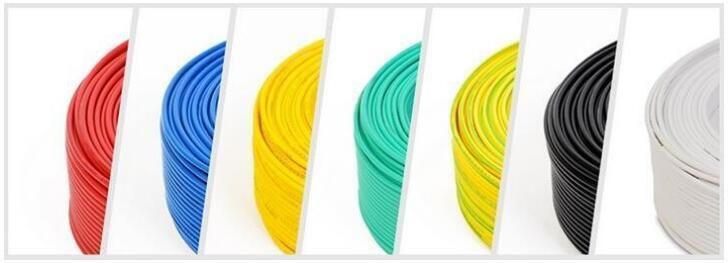

0.6/1kV Tray Flame-Retardant Insulated Wire for Grounding Cable AVAILABLE COLORS:
Cables (Sizes 0.5mm2 to 6mm2): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Sizes 10mm2 to 25mm2): Black, White, Blue and Red.
Cables (Sizes 25mm2 to 240mm2): Black. HIGHER SIZES (FROM 750 MCM TO 1.000 MCM), UNDER REQUIREMENT.
Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
Any problem and inquiry pls contact with Vivian Yuan.
Phone number: +86-15838290725
