• Model NO.：Aerial Spacer Cables
• Wire Core Material：Aluminum
• Certification：CCC, SGS
• Model：Overhead Power Transmission and Distribution Lines
• Brand：Hongda
• Voltage Rating：12,20kv or 18,30 Kv.
• Operating Temperature：90c Continues Normal Operation
• Transport Package：Steel & Wooden Drum
• Specification：1.6*1.1
• Trademark：Hongda Cable
• Origin：Made in China
• HS Code：8544601200
• Production Capacity：600km,Month

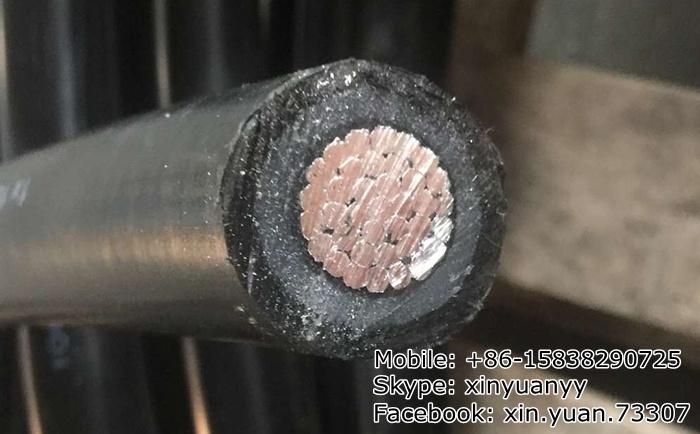

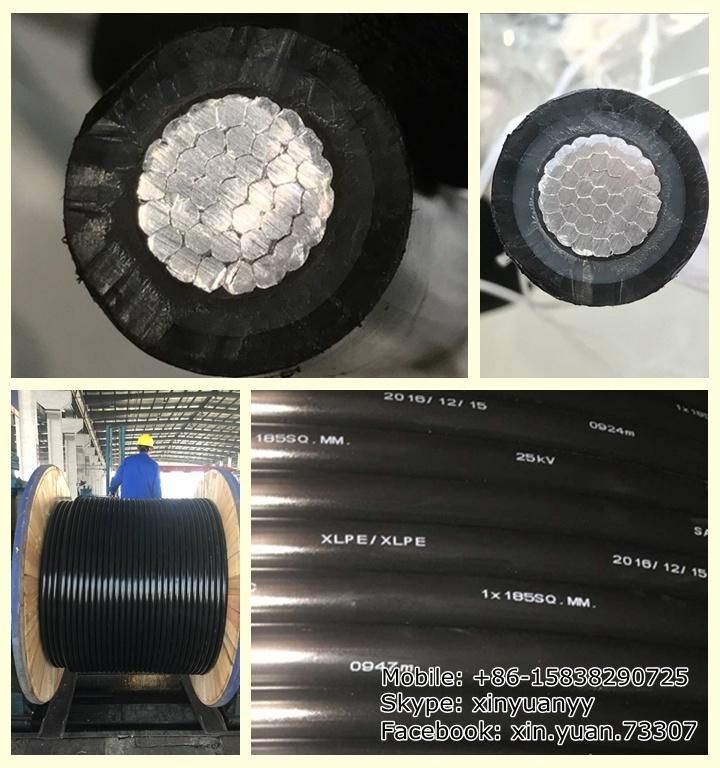

NUMBER OF CORESingle core1. CONDUCTOR

• Compact stranded hard drawn Aluminum wire
• Conductor sizes 35 mm2 up to 240 mm2

2. CONDUCTOR SHIELDSemi conducting cross-linked polyethylene3. INSULATION

• Cross-linked polyethylene
• Colour : Natural

4. SHEATH

• Track resistant cross-linked polyethylene
• Colour : Black

CLASSIFICATION

• Normal operation 90 °C
• Emergency overload conditions 130 °C
• Short circuit conditions 250°C
• Voltage rating 25 Kv.( Phase to Phase )

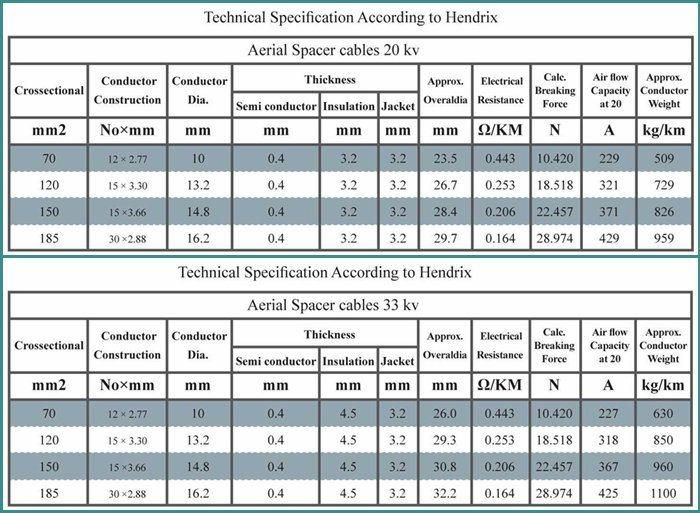

Space Aerial Cable Specifications:

Nominal Sectional Area	Minimum Number of wire	Diameter of Conductor (approx.)	Thickness of Insulation	Thickness of sheath	Overall Diameter (approx.)	Maximum DC. conductor resistance at 20°C	Allowable ampacities in free air at 40°C ambient	Cable weight (approx.)	Standard packing
mm2	NO	mm	mm	mm	mm	Ω / km	A	kg/km	m
25	7	5.9	4.45	3.18	20.0	1.200	119	380	1000/D
35	7	6.95	4.45	3.18	21.0	0.868	149	490	1000/D
50	7	8.33	4.45	3.18	22.0	0.641	186	530	1000/D
70	18	9.73	4.45	3.18	24.5	0.443	229	630	1000/D
95	18	11.45	4.45	3.18	26.0	0.320	279	750	1000/D
120	18	12.95	4.45	3.18	27.0	0.253	321	850	1000/D
150	18	14.27	4.45	3.18	29.5	0.206	371	960	1000/D
185	34	15.98	4.45	3.18	31.0	0.164	429	1100	1000/D
240	34	18.47	4.45	3.18	33.5	0.125	520	1400	1000/D

Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.

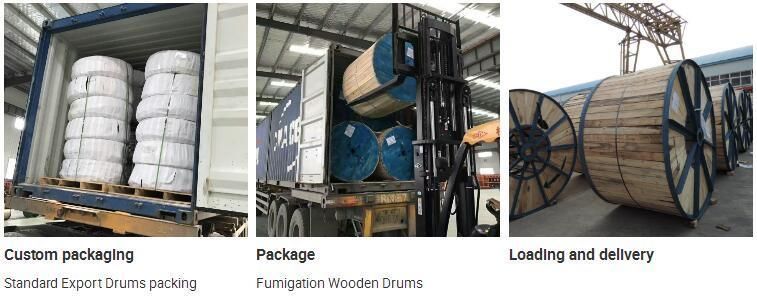

Packing & Delivery


Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.

Any problem and inquiry pls contact with Vivian Yuan.
Phone number: +86-15838290725
