• Model NO.：U-1000 AR2V , RO2V Cable
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：U-1000 RO2V, Ar2V
• Brand：Hongda
• Standard：NFC 32 321
• Rated Voltage：0.6,1 Kv
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：20km,Day

Conductor:: rigid red copper / Aluminum wire, class  1 (Φ ≤ 4 mm²)
  stranded circular compacted copper / Aluminum class 2 (Φ>4mm²)Insulation: XLPE crosslinked polyethylene (no dry cool)Outer sheath: PVCScreen: noDrain wire: noLead sheath: noConcentric cond.: noneInsulation integrity: noCircuit integrity: noArmouring: no U-1000 R2V - Technical data and testsStandards: NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100Nominal voltage U0/U: 0,6/1 kVTest voltage (50 Hz): 4 kVMaximun voltage Um: 1,2 kVMaximun operating temperature: +90° CMaximun short circuit temperature: +250° CMin. operating temperature
(without mechanical shocks): -25° CMinimum installation and use temp.: -10° CMinimum bending radius per
D cable diameter (in mm): 6 x DMaximum pulling stress: 5 kg/mm² (of copper cross section)Core colourssingle core : black
two cores : blue-brown
three  cores : brown-black-blue  (1,5/2,5 mmq); brown-black-gray (4 mmq)  or Y/G-blue-brown)
four cores : blue-brown-black-gray (or Y/G instead blue)
five cores : blue-brown-black-gray-Y/G (or black instead Y/G)Sheath colour: black
U-1000 AR2V / RO2V Cable - Other standardsGerman: N2XY / NA2XYBritish: CU/XLPE/PVCSerbian: XP 00Turkish: YXV-U (-R)Romanian: C2XY
U-1000 R2V
Low Voltage Power Cable (0.6/1 kV)
XLPE insulated, copper conductor, PVC outer sheath cable




AWG	Cross Section	Insulation thickness	Minimum Sheath thickness	Maximum Overall diameter	Approx Cable weight
	mm2	mm	mm	mm	kg/km
16	1x1.5	0.7	1.09	6.6	45
14	1x2.5	0.7	1.09	7	55
12	1x4	0.7	1.09	7.6	75
10	1x6	0.7	1.09	8.2	100
8	1x10	0.7	1.09	9.2	140
6	1x16	0.7	1.09	10.5	205
4	1x25	0.9	1.09	12.5	315
2	1x35	0.9	1.09	13.5	400
1	1x50	1	1.09	15	530
2/0	1x70	1.1	1.09	17	725
3/0	1x95	1.1	1.18	19	985
4/0	1x120	1.2	1.18	21	1260
300MCM	1x150	1.4	1.26	23	1520
500MCM	1x185	1.6	1.26	25.5	1940
750MCM	1x240	1.7	1.35	28.5	2310
	1x300	1.8	1.43	31	3200
16	2x1.5	0.7	1.43	10.5	115
14	2x2.5	0.7	1.43	11.5	145
12	2x4	0.7	1.43	13	195
10	2x6	0.7	1.43	14	265
8	2x10	0.7	1.43	16	390
6	2x16	0.7	1.43	18.5	560
4	2x25	0.9	1.43	22	850
2	2x35	0.9	1.43	24.5	1080
16	3x1.5	0.7	1.43	11	130
14	3x2.5	0.7	1.43	12.5	170
12	3x4	0.7	1.43	13.5	230
10	3x6	0.7	1.43	15	325
8	3x10	0.7	1.43	17	485
6	3x16	0.7	1.43	19.5	705
4	3x25	0.9	1.43	23.5	1080
2	3x35	0.9	1.43	26	1390
1	3x50	1	1.43	29	1840
2/0	3x70	1.1	1.52	34	2540
3/0	3x95	1.1	1.6	38.5	3430
4/0	3x120	1.2	1.69	42.5	4440
300MCM	3x150	1.4	1.86	47.5	5380
500MCM	3x185	1.6	1.94	53	6920
750MCM	3x240	1.7	2.11	59.5	8420
-	3x300	1.8	2.28	66	11300
16	4x1.5	0.7	1.8	11.3	180
14	4x2.5	0.7	1.8	12.2	220
12	4x4	0.7	1.8	13.3	300
10	4x6	0.7	1.8	15	420
8	4x10	0.7	1.8	17.25	630
6	4x16	0.7	1.8	18.8	900
4	4x25	0.9	1.8	23	1350
2	4x35	0.9	1.8	25.1	1750
1	4x50	1	1.9	29.1	2350
2/0	4x70	1.1	2	33.9	3400
3/0	4x95	1.1	2.1	38.4	4500
4/0	4x120	1.2	2.3	42.4	5700
300MCM	4x150	1.4	2.4	47.2	7050
500MCM	4x185	1.6	2.6	52.65	8700
750MCM	4x240	1.7	2.8	59	11400
-	4x300	1.8	3	64.8	14200
1	3x50+35	1	1.8	28.8	2200
2/0	3x70+50	1.1	2	33.4	3100
3/0	3x95+50	1.1	2.1	37	3950
4/0	3x120+70	1.2	2.2	41.3	5050
300MCM	3x150+70	1.4	2.3	45.1	6100
500MCM	3x185+70	1.6	2.5	50	7400
750MCM	3x240+95	1.7	2.7	55.8	9700
16	5x1.5	0.7	1.8	12.1	205
14	5x2.5	0.7	1.8	13.1	260
12	5x4	0.7	1.8	14	350
10	5x6	0.7	1.8	16.3	500
8	5x10	0.7	1.8	18.5	760
6	5x16	0.7	1.8	20.6	1100
4	5x25	0.9	1.8	25.4	1600
16	7x1.5	0.7	1.8	12.3	260
14	7x2.5	0.7	1.8	13.2	330
12	7x4	0.7	1.8	15.4	450
16	8x1.5	0.7	1.8	13.9	290
14	8x2.5	0.7	1.8	14.9	380
12	8x4	0.7	1.8	16.5	520
16	10x1.5	0.7	1.8	15.8	350
14	10x2.5	0.7	1.8	17	450
12	10x4	0.7	1.8	19	630
16	12x1.5	0.7	1.8	15.5	390
14	12x2.5	0.7	1.8	16.8	510
12	12x4	0.7	1.8	19.6	700
16	14x1.5	0.7	1.8	17	440
14	14x2.5	0.7	1.8	18.3	580
12	14x4	0.7	1.8	20.5	800
16	19x1.5	0.7	1.8	17.9	550
14	19x2.5	0.7	1.8	19.4	740
12	19x4	0.7	1.8	22.6	1050
16	24x1.5	0.7	1.8	20.7	670
14	24x2.5	0.7	1.8	23.2	900
16	30x1.5	0.7	1.8	22.6	800
14	30x2.5	0.7	1.8	24.5	1100
16	37x1.5	0.7	1.8	23.5	950
14	37x2.5	0.7	1.8	26.3	1300

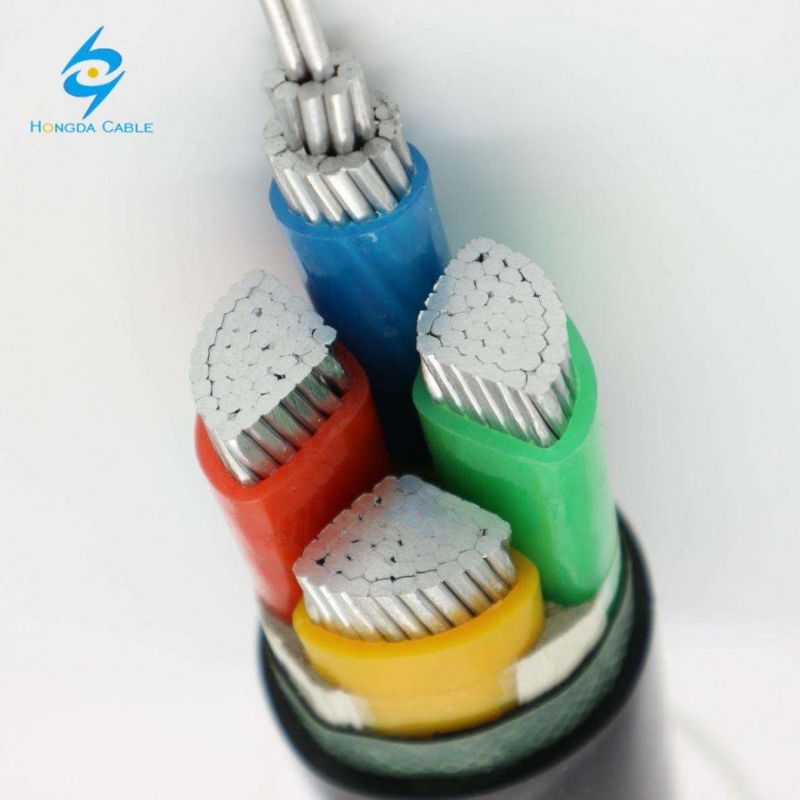

U-1000 AR2V
Low Voltage Power Cable (0.6/1 kV)
XLPE insulated, aluminum conductor, PVC outer sheath cable




AWG	Cross Section	Insulation thickness	Minimum Sheath thickness	Maximum Overall diameter	Approx Cable weight kg/km
	mm^2	mm	mm	mm	Al
2	1x35	0.9	1.09	13.5	190
1	1x50	1	1.09	15	245
2/0	1x70	1.1	1.09	17	325
3/0	1x95	1.1	1.18	19	425
4/0	1x120	1.2	1.18	21	520
300MCM	1x150	1.4	1.26	23	630
500MCM	1x185	1.6	1.26	25.5	780
750MCM	1x240	1.7	1.35	28.5	990
-	1x300	1.8	1.43	31	1210
-	1x400	2	1.52	34.2	1510
-	1x500	2.2	1.6	38	1860
-	1x630	2.4	1.77	44	2400
8	2x10	0.7	1.43	16,0	275
6	2x16	0.7	1.43	18,5	360
4	2x25	0.9	1.43	22,0	530
2	2x35	0.9	1.43	24,5	640
8	3x10	0.7	1.43	17,0	300
6	3x16	0.7	1.43	19,5	400
4	3x25	0.9	1.43	23,5	600
2	3x35	0.9	1.43	26,0	750
1	3x50	1	1.43	29,0	970
2/0	3x70	1.1	1.52	34,0	1310
3/0	3x95	1.1	1.6	38,5	1730
4/0	3x120	1.2	1.69	42,5	2120
300MCM	3x150	1.4	1.86	47,5	2640
500MCM	3x185	1.6	1.94	53,0	3290
750MCM	3x240	1.7	2.11	59,5	4210
	3x300	1.8	2.28	66,0	5210
4	4x25	0.9	1.43	25,5	720
2	4x35	0.9	1.43	28,5	910
1	3x50+35	1	1.52	31,1	1130
2/0	3x70+50	1.1	1.6	36,2	1540
3/0	3x95+50	1.1	1.69	40,6	1940
4/0	3x120+70	1.2	1.86	45,4	2430
300MCM	3x150+70	1.4	1.94	49,5	2890
500MCM	3x185+70	1.6	2.11	54,4	3660
750MCM	3x240+95	1.7	2.28	61,5	4680
