• Model NO.：SC,PC-SC,PC 3M
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Optelec
• Sheath Material：PVC
• Adapter：SC,PC
• Transport Package：Plastic Packing
• Specification：CE, SGS
• Trademark：POWTECH
• Origin：China
• HS Code：8547
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. SC/PC-SC/PC 3M Core Multicore Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand Optelec Sheath Material PVC Adapter SC/PC Transport Package Plastic Packing Specification CE, SGS Trademark POWTECH Origin China HS Code 8547 Production Capacity 10000PCS/Year

Product Description

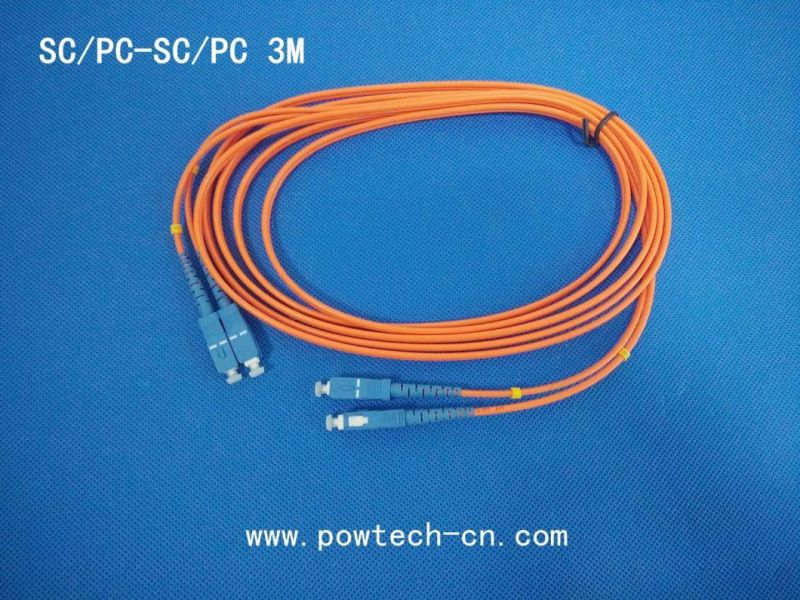

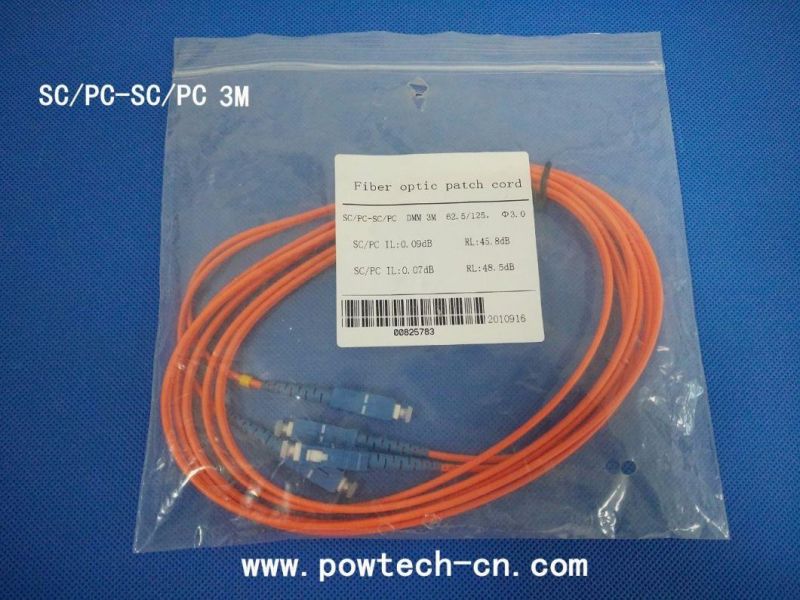

Fiber optic/optical patch cord SC/PC-SC/PC 3M


Specifications:
1. Fiber Optic Adaptor
2. High interface performance
3. RoHS compliant
4. IL<0.2dB, RL>55dB
5. OEM/ODM
Features:
*Type: FC, SC, ST, LC, MU, MTRJ and Hybrid
*Simplex and Duplex
*Zirconia sleeves or Phosphor bronze sleeves
*Meet JIS5974 and Bellcore-GR-CORE Compliance
*Compliant with IEC874-14 &IEC874-19 and NTT standard compatible
*All parts compliant with RoHS

Application:
*CATV/LANs
*FTTH
*Networks
*Telecommunication

Adapter Parameters:
Mode
S. M(Zroz)
M. M(P. B)
Insertion Loss
≤ 0.2dB
≤ 0.3dB
Mating Durability(500times)
≤ 0.2dB
Operating Temperature(° C)
-40° C~+75° C
Ordering information:
* Sleeve: Zirconia, P. B
* Type: Simplex, Duplex
* Housing: SM Bule, MM Beige, APC Green, SM Metal
* Figure: With flange, without flange, customized designs

Warranty:
* Quality always comes first
* Standard quality tests check of all types of products before shipment
* Responsible for after-sales service
* 3 months
Technical Specifications:

No.	Parameter	Specifications
1	Adapter type	FC/PC - FC/PC
2	Return Loss	≥ 45dB
3	Insertion Loss	≤ 0.3dB
4	Tension Strength	- Installation: 200N - Operation: 100N
5	Crush Resistance Strength	- Immediate: 500N - Regular: 100N
6	Installation environment temperature	0 ° C ~ 60 ° C
7	Operation environment temperature	0 ° C ~ 45 ° C
8	Length	10 m
9	Mating durability	≥ 100 times
