• Model NO.：UX 1000V P15 cable
• Material Shape：Round Wire
• Range of Application：Earthing and Bonding Services
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Central Conductor：Fine Solid Copper
• Insulation：Polyvinyl Chloride (PVC)
• Transport Package：a: Roll of 100 M B: Reel of 1500 M.
• Specification：0.5mm2 to 10mm2
• Trademark：Hongda or as customer require
• Origin：China
• HS Code：8544492900
• Production Capacity：40km,Day

Conductor : Tinned, stranded copper, IEC 60228 class 2 PETP-tape.
Insulation : Flame retardant halogen-free thermoset compound, HF90 (IEC 60092-360).
Outer Sheath Colours Available colours : Yellow / Green

Installation recommendations
Min. Bending Radius during Installation : 8xD
Min. Pulling Tension : 25xtotal cross section of conductors
Max. Conductor Operating Temperature : 90°C

Standards applied
IEC 60092-353    Design
NEK 606
IEC 60228 class 2  Conductor
IEC 60332-1   Flame Retardant
IEC 60332-3-22  Flame Retardant
IEC 60754-1,2  Halogen Free
IEC 61034-1,2  Low Smoke


Technical specifications in accordance
UX 1000V, P15 Halogen-free, mud resistant, insulated conductor Cable
 * Total Cross
Section
mm2Approx. conductor diameter
mmDiameter over insulation
mmApprox Cable
Weight
kg/km63.155.580104.056.5120165.157.5180256.49.5280357.6510.5370509.012.55207010.8514.57309512.6016.597012014.2018.0122015015.9020.0152018517.7022.0189024020.1525.0245030022.6028.0309063032.8038.56350Tolerance of pulley is ±5%

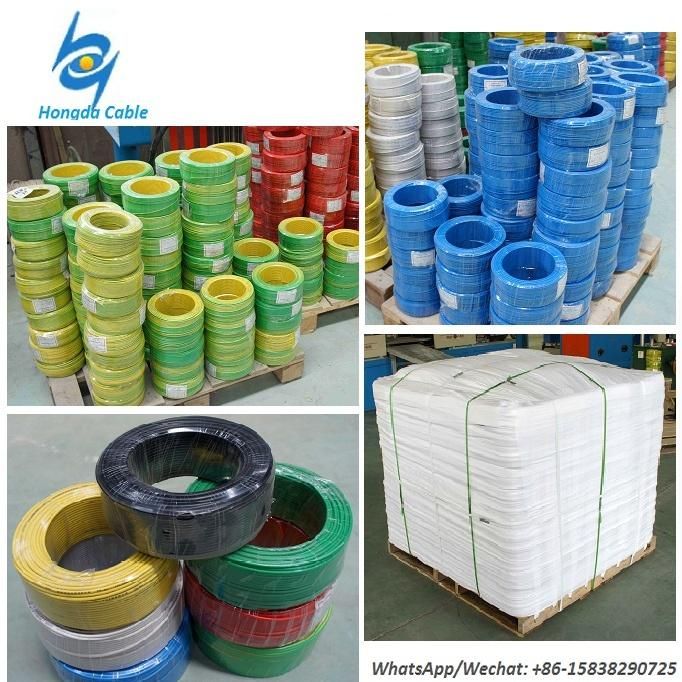

Insulated conductor Cable PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.

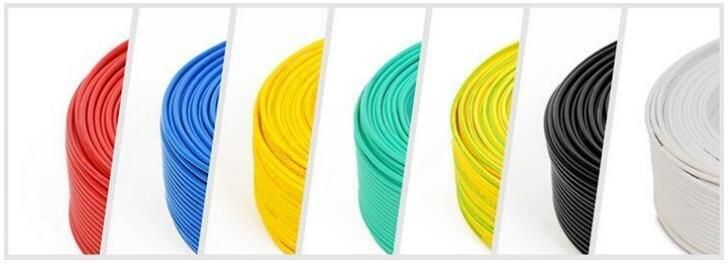

Insulated conductor Cable AVAILABLE COLORS:
Cables (Sizes 0.5mm2 to 6mm2): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Sizes 10mm2 to 25mm2): Black, White, Blue and Red.
Cables (Sizes 25mm2 to 240mm2): Black. HIGHER SIZES (FROM 750 MCM TO 1.000 MCM), UNDER REQUIREMENT.

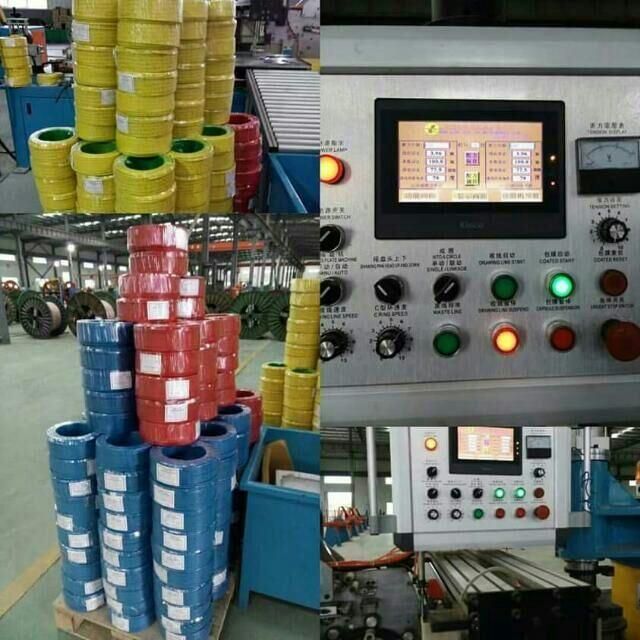

Company Profile:
Hongda cable Co., Ltd. is one of the most professional cable & wire producer under modern enterprise system in China, which was founded in 1988, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co.,  The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc

Our advantages
1.  With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, SGS, CCC ;
2.  Good cost-control system, with highly-competitive prices;
3.  Strong and Professional R&D team to meet your specific needs;
4.  Fast delivery&reliable products are always the reason why you choose us.
Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM .
Complete Course Tracking: we can offer you the service from the business begin to you get the cable and use it
Cable sample :  we can offer the sample free

Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.

Any problem and inquiry pls contact with Vivian Yuan.
Phone number: +86-15838290725
