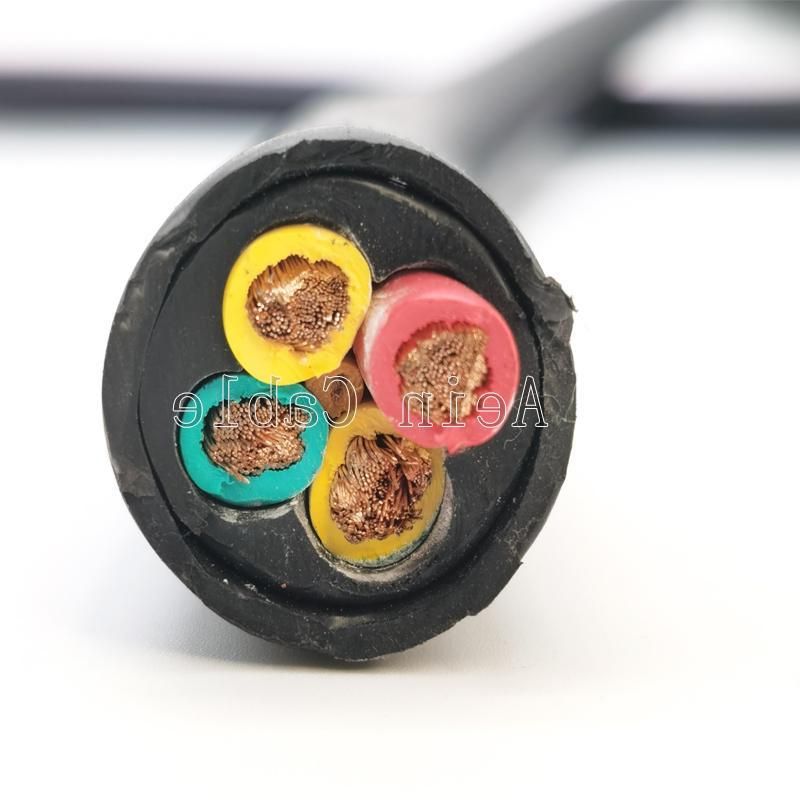

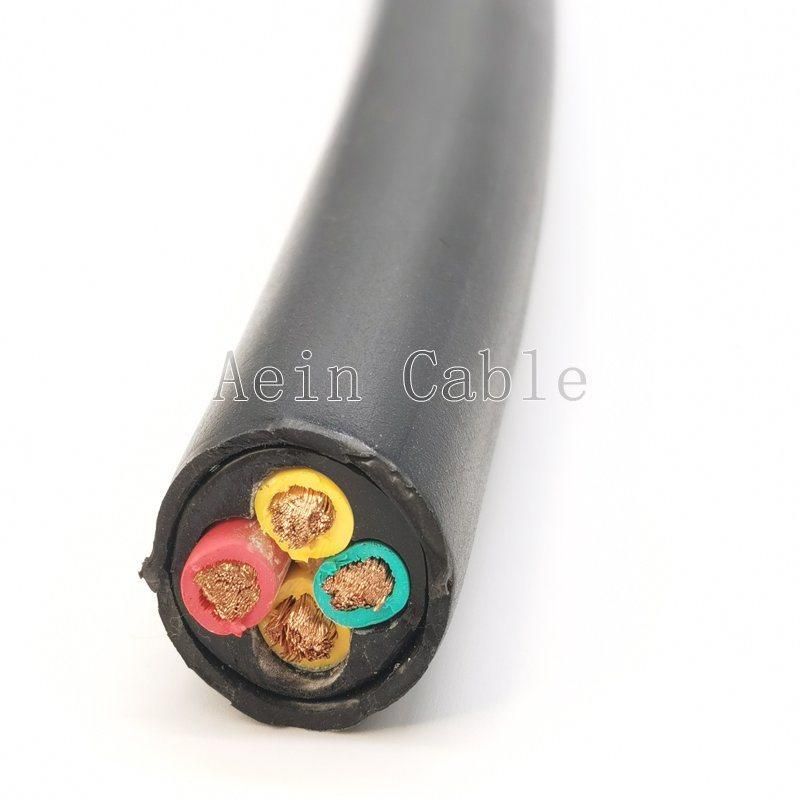

TUV Approved N2xh Cable for Electricity Supply in Low Voltage Installation System

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：LSZH
  • Insulation Material：XLPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：N2XH Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemN2XH CableConductorUp to 16mm2: Class 1 solid copper conductor
Above 16mm2: Class 2 stranded copper conductorInsulationXLPE (Cross-Linked Polyethylene)Outer sheathLSZH (Low Smoke Zero Halogen)Core NumberMulticores (As client's requirement)Temperature rangeFixed: -30°C to +90°CRated voltageUo/U 0.6/1 kVColorOptionalApplicationThese power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
