• Model NO.：bs6622
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：BS6622 Cable
• Brand：Hongda
• Inner Semi-Conductive Layer：Semi-Conductive Material
• Insulation：XLPE (Cross-Linked Polyethylene)
• Outer Semi-Conductive Layer：Semi-Conductive Material
• Screen：Copper Tape
• Sheath：PVC (Polyvinyl Chloride)
• Amoured：Steel Wire , Swa
• Transport Package：250m Per Drum
• Specification：1.5 - 630 sq. mm
• Trademark：Hongda
• Origin：China
• HS Code：8544601200
• Production Capacity：10 Kilometers Per Day

Basic Info.

Model NO. bs6622 Wire Core Material Bare Copper Wire Certification ISO, CCC Model BS6622 Cable Brand Hongda Inner Semi-Conductive Layer Semi-Conductive Material Insulation XLPE (Cross-Linked Polyethylene) Outer Semi-Conductive Layer Semi-Conductive Material Screen Copper Tape Sheath PVC (Polyvinyl Chloride) Amoured Steel Wire / Swa Transport Package 250m Per Drum Specification 1.5 - 630 sq. mm Trademark Hongda Origin China HS Code 8544601200 Production Capacity 10 Kilometers Per Day

Product Description

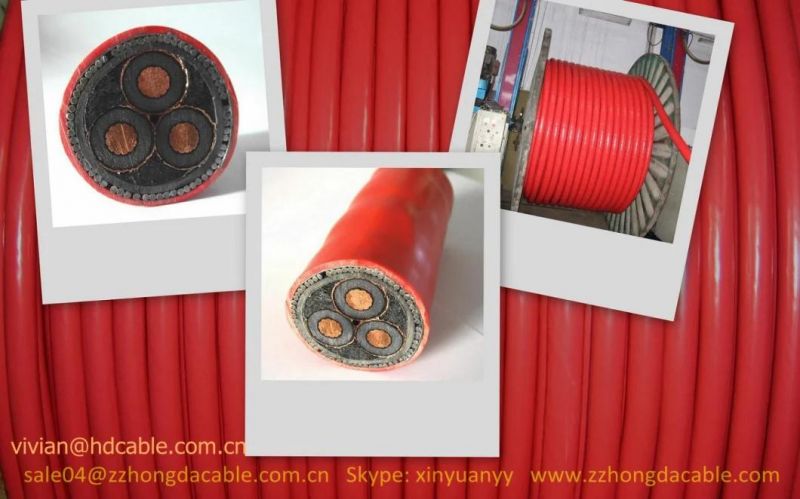

BS6622 6.35-11KV 3 Core SWA PVC Cable 3x240mm2 power cable

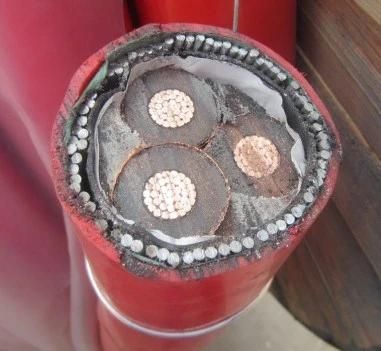

1. BS6622 6.35-11KV 3 Core SWA PVC Cable construction

Conductor	Plain annealed Circular compacted copper / Circular Aluminium
Conductor identification:	Coloured tape, black, brown & grey
Inner Semi-Conductive Layer	Semi-conductive material
Insulation	XLPE (Cross-Linked Polyethylene)
Outer Semi-Conductive Layer	Semi-conducting layer with a copper tape screen covering each core
Inner sheath	PVC
Armour	Single wire (round)
Outer sheath	PVC (Polyvinyl Chloride) Colour: Black or red
Voltage:	6350/11000v
Operating temperature:	Maximum 90°C, minimium bending 0°C
Standards:	BS6622: Power cables, thermosetting polymer insulated high voltage IEC60502-2: Power cables with extruded insulation and their accessories for rated voltages from 6kV to 30kV (Um=36kV)
Applications:	suitable for power transmission, outdoors and underground

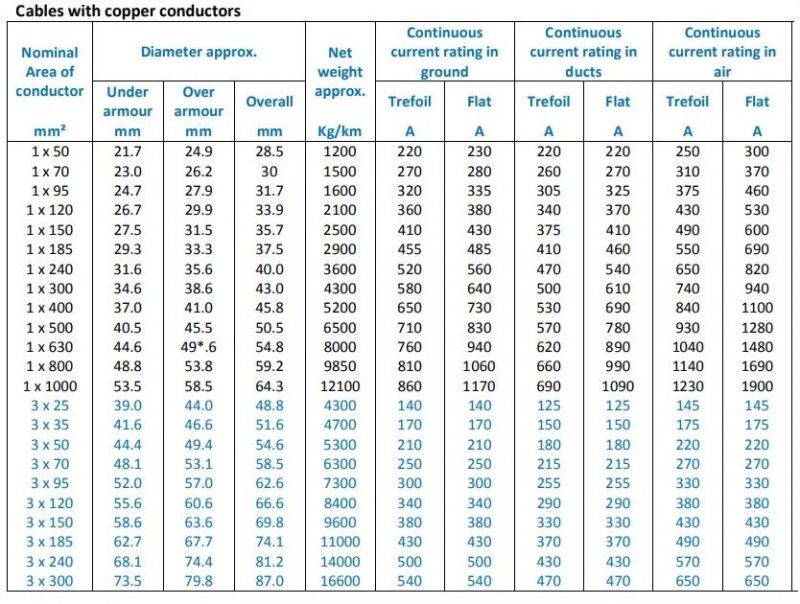

2. BS6622 6.35-11KV 3 Core SWA PVC Cable Dimensions

Whilst HONGDA CABLES plc endeavours to ensure the information on the website, specification sheets and all other technical information is accurate, the information is for guidance only and it is subject to change without notice or liability. HONGDA Cables Plc is not responsible for the consequences of any inadequacies, inaccuracies or other deficiencies contained therein. When selecting cable accessories, please note that the actual cable dimensions may vary due to manufacturing tolerances.
