• Model NO.：F,UTP CAT. 6 Category
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, ETL, CPR
• Model：Network Cable
• Brand：Risun or OEM
• Transport Package：305m
• Specification：23AWG
• Trademark：RISUN or OEM
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes,Month

DESCRIPTION

Manufactured according to ISO / IEC 11801-2, ISO / IEC 64156-5, EIA / TIA 568B, EN 60332-1-2 Flame propagation

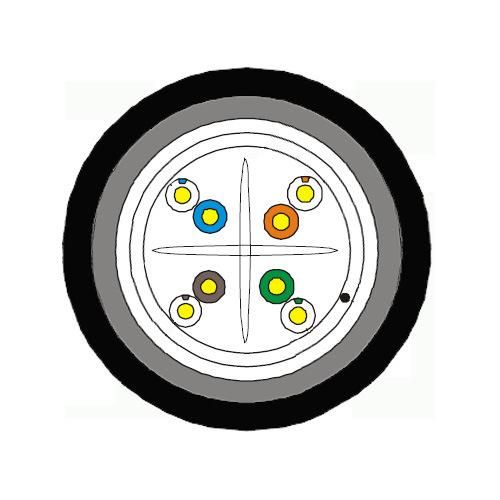

         TECHNICAL SPECIFICATIONS   Conductor Bare copper0.57±0.01 mm
 Insulation Foam PE 1.03±0.05 mmIdentification of pairs   1 pairBlue - White / Blue 2 pairOrange - White / Orange 3 pairGreen - White / Green 4 pairBrown - White / BrownShieldAluminum foilRipcordYesSheathPVC+PEColorBlackBending radius≥ 8 x Diameter (mm) InstallationStorage temperature-15ºC-+70ºC         ELECTRICAL CHARACTERISTICS nº Pairs.xФ (mm)

Conductor

Resistance

(ohm/km)

Resistance

Unbalance

Cap. between cond. pair

(nF / 100m)

Velocity of

Propagation (%)

Impendance (ohm)ФExt. (Appvox) (mm) 4x2x0.56max.75max.5%5669100±158.40±0.3

Frequency

(MHz)

RL  ≥dB

ATT

 ≤dB/100m

NEXT

≥dB

DELAY

 ≤ns/100m

PS NEXT

 ≥dB

EL FEXT

≥dB/100m

PS EL FEXT

≥dB/100m

 423.03.866.3552.063.356.053.0 824.55.361.8547.058.849.946.9 1025.05.960.3545.057.348.045.0 1625.07.657.2543.054.243.940.9 2025.08.555.8542.052.842.039.0 2524.39.554.3541.051.340.037.0 31.2523.610.752.9540.049.938.135.1 62.521.515.448.4539.045.432.129.1 10020.119.845.3538.042.328.025.0 20018.029.040.8537.037.822.019.0 25017.332.839.3536.036.320.017.0 30016.834.338.1536.035.118.515.5 50015.245.334.8536.031.914.011.0          Reaction to fireDca-s2, d2, a1         ApplianceCable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities.         Packing

• All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.
