Ventilated F46 (FEP) Cable for Submersible Level Transmitter
Nanjing Wotian Technology Co., Ltd.- Type:Insulated
- Application:Submersible Level Transmitter
- Conductor Material:Copper
- Sheath Material:F46 (FEP)
- Insulation Material:PE
- Material Shape:Round Wire
Base Info
- Model NO.:WTC03
- Ventilated Tube Material:Polypropylene
- Cable Color:Black
- Operational Temp.:-40ºC~+70ºC
- No. of Cores × Cross Section:5×0. 2 mm2
- No. of Threads/Diameter:7,0.2
- Outer Diameter/Pore Diameter:2.2,1.0
- Outer Diameter:7.2-7.4
- Conductor DC Resistance at 20ºC:≤90 Ω,Km
- Insulation Resistance MΩ. Km ≥:500
- DC Test Voltage (Kv):1000
- Transport Package:Standard Export Packing
- Specification:Weight: 0.077kg,m
- Origin:China
- HS Code:8544491100
Description
Specifications
NO. of cores × Standard cross section mm2 Structure of core (No. of threads/diameter) Outer diameter/pore diameter of vented tube
Outer diameter Conductor DC resistance at 20ºC
Ω/km Insulation resistance
MΩ. Km ≥ DC test Voltage (kV) 5×0. 2 7/0.2 2.2/1.0 7.2-7.4 ≤90 500 1000

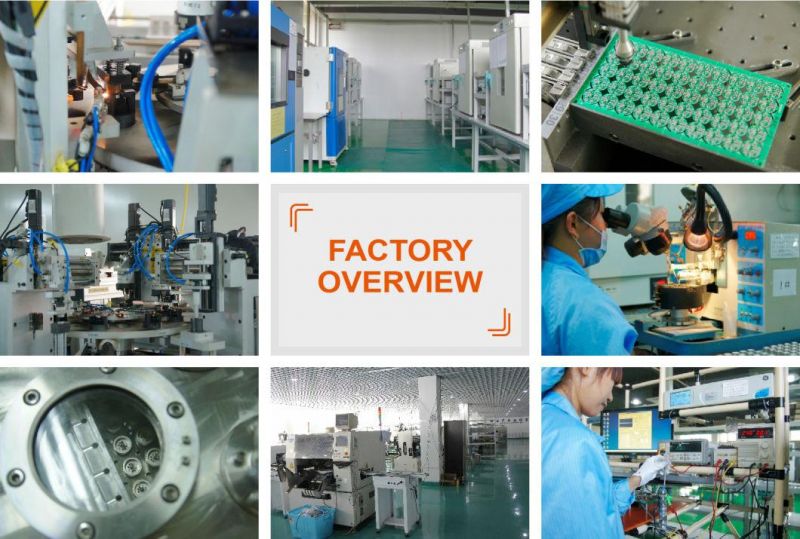

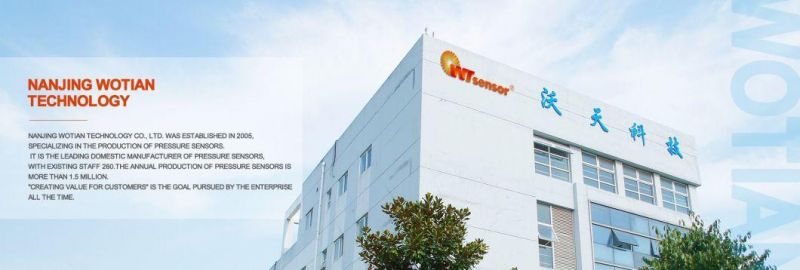

About Us:
Certifications:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on pressure sensor for 33 years.
2. Q: What international certificates do you have?
A: ISO9001, CE, RoHS Certificated.
3. Q: What is your production capacity?
A: We produced 1500000 pieces pressure sensor in year 2017.
4. Q: What is the lead time of your product?
A: Stocks are available for some products. The typical lead time is 8~14 working days for product without customization.
Note: lead time may vary base on different products. Please contact us for detailed lead time.
5. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
6. Q: Do you provide customized products?
A: Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
Ω/km
MΩ. Km ≥

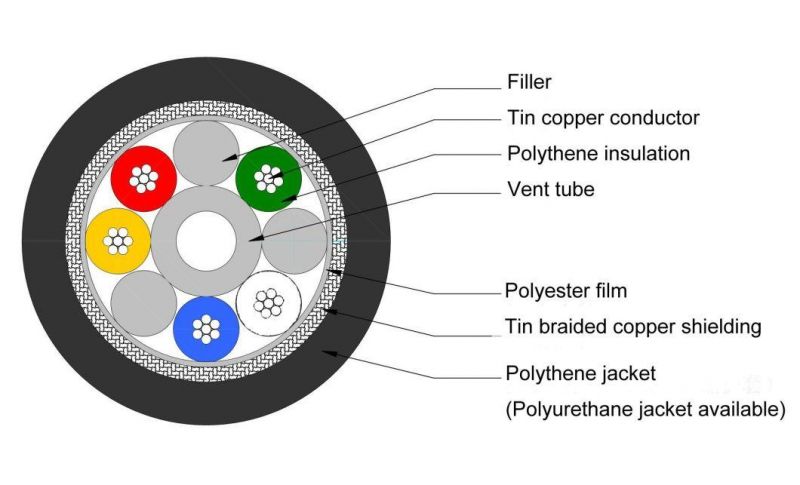

Drawing |
