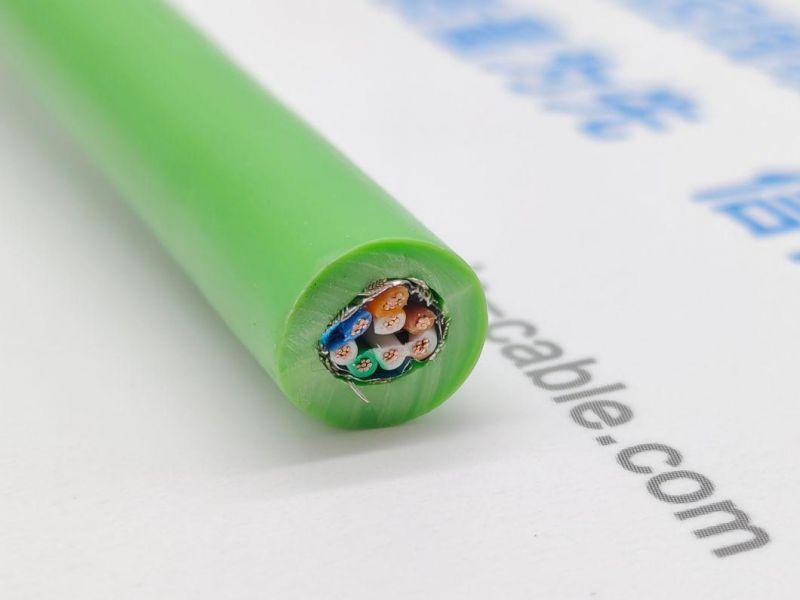

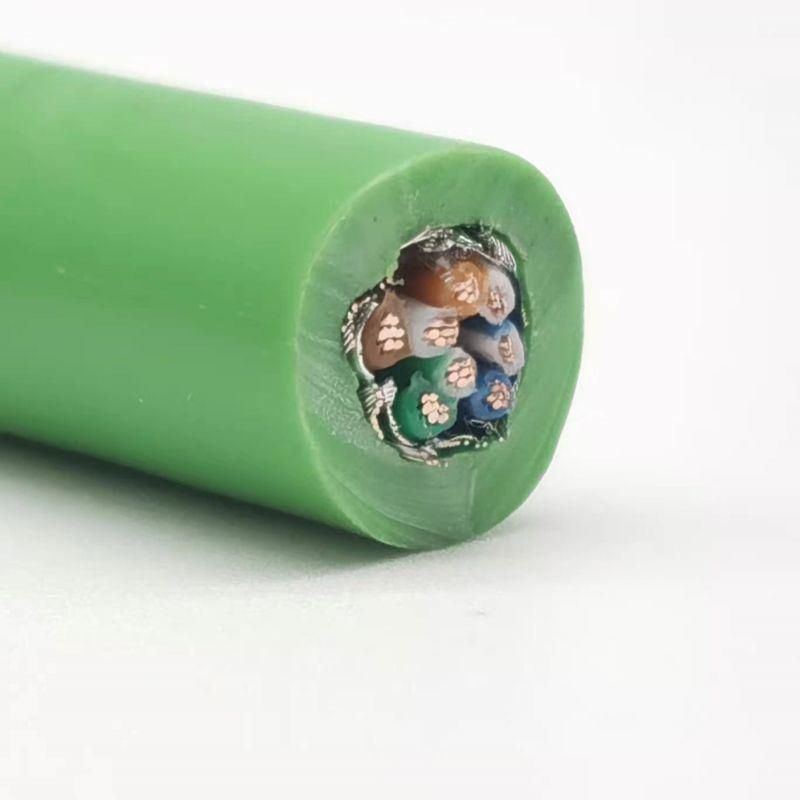

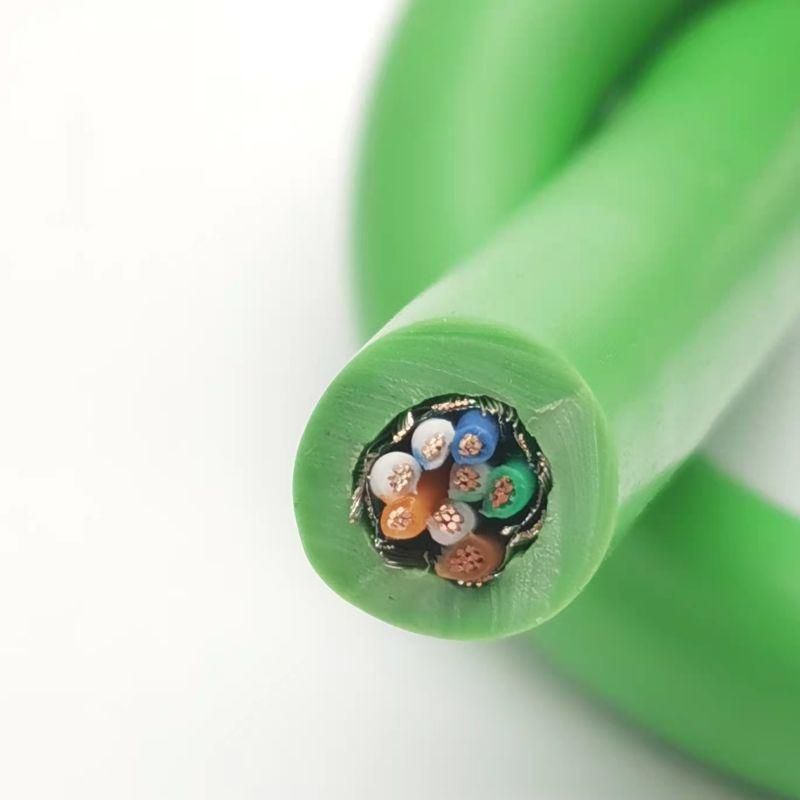

SL 859 C PVC Servo Cable with Overall Copper Screen 300/500 V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：SL 859 C Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemSL 859 C CableConductorTinned copper strandsStranding1,0 mm² twisted to pairsInsulationRubberInner sheathPairs with PVCScreenPairs wrapped with tinned copper braidStrandingSpecially adjusted layeringWrappingFoilScreenTinned copper braidingOuter sheathPVCRated voltage Uo/U: 450/750 VCore numberMulticores (As client's requirement)Peak operating voltage300/500 VTesting voltageCore/core 2000 V
Core/screen 2000 VMin. bending radiusFixed laying: 5 x d
Flexible application: 10 x dTemperature rangeFixed laying: -30/+70°C
Flexible application: - 5/+70°CApplicationFor example as motor connection cable of pitch drives.
