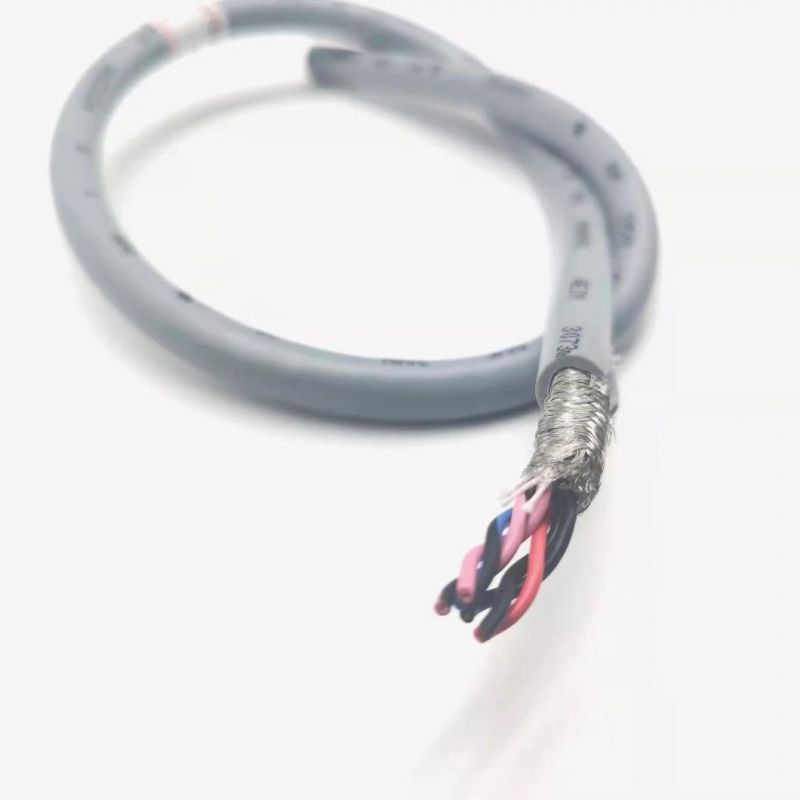

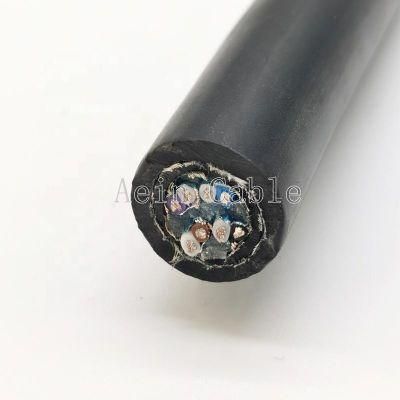

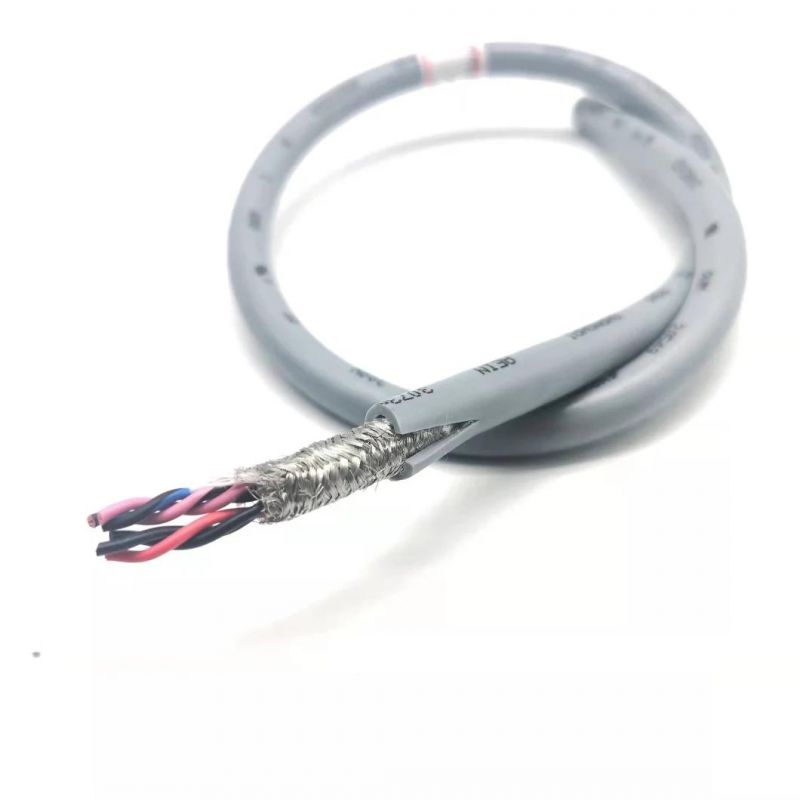

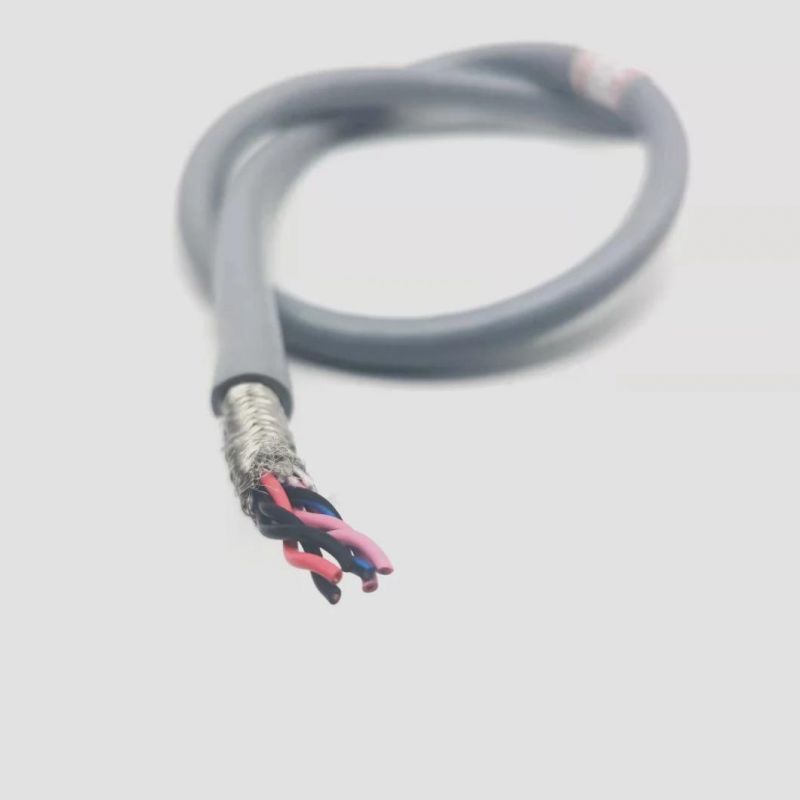

SD 200 C Tp Continuously Flexible Paired TPE/PUR Data Cable with Overall Copper Screen

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：TPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：SD 200 C TP Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemSD 200 C TP CableConductorBare copper strandsStrandingCores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layerInsulationTPEInner sheathPairs with PVCScreenTinned copper braidingWrappingNon-woven tapeOuter sheathPURRated voltage Uo/U: 450/750 VCore numberMulticores (As client's requirement)Peak operating voltageMax. 350 VTesting voltageCore/core 1500 V
Core/screen 1200 VMin. bending radius7,5 x dTemperature rangeFixed laying: -50/+90 °C
Flexible application: -40/+90 °CApplicationOur data cables fulfils the requirements of our customers for a highly flexible cable for theinstallation from the housing to the base of a wind energy system. During operation they have proved their resistance against vibrations effectively.
