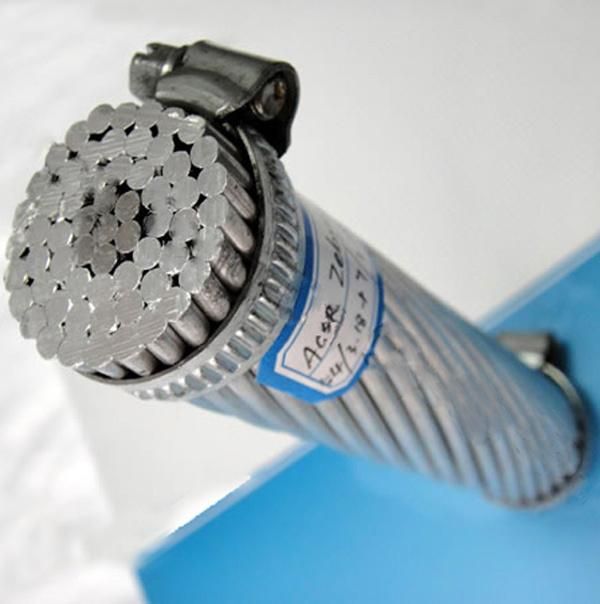

High quality Overhead Line ACSR Conductor

YIFANG ELECTRIC GROUP INC.
  • Application：Overhead
  • Voltage：High Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Sheath Material：None
  • Material Shape：Round Wire

Base Info

  • Model NO.：acsr
  • Wire Core Material：Bare Conductor
  • Certification：ISO, VDE
  • Model：AAC,AAAC,ACSR,Acar
  • Brand：Yifang
  • Type：Bare Conductor
  • Transport Package：Standard Export Wooden Drums
  • Specification：ASTM ISO
  • Trademark：YIFNAG
  • Origin：Zhengzhou China
  • HS Code：8544492100
  • Production Capacity：1200mt,Month

Description

Basic Info.

Model NO. acsr Wire Core Material Bare Conductor Certification ISO, VDE Model AAC/AAAC/ACSR/Acar Brand Yifang Type Bare Conductor Transport Package Standard Export Wooden Drums Specification ASTM ISO Trademark YIFNAG Origin Zhengzhou China HS Code 8544492100 Production Capacity 1200mt/Month

Product Description

All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM (AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228

We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.

  1.Applications
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

   2.Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.

     3..Notes
Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.
Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq. Ft sun, 0.5 coefficients of emissivity and absorption.
High quality Overhead Line ACSR Conductor
For  further  information  ,pls  contact  us.
