All-in-One Seamless Sliding Contact Line and Safety Conductive Rail National Standard Sliding Line
Nanjing Shunmei Science & Technology Co., Ltd.- Type:Insulated
- Conductor Type:Solid
- Application:Overhead, Heating
- Conductor Material:Aluminum
- Sheath Material:PVC
- Insulation Material:PVC
Base Info
- Material Shape:Round Wire
- Range of Application:Cold-Resistant
- Certification:ISO9001, CE
- Brand:Mobilis
- Voltage:440V,750V; 50Hz
- Working Temperature:-30degree~75degree
- Current Intensity:12A-200A
- Grade:4-5
- Protect Grade:IP23
- Transport Package:Standard Package
- Specification:1m-4m
- Trademark:Motilis
- Origin:France
- HS Code:8431310900
- Production Capacity:200000m,Year
Description
Basic Info.
Material Shape Round Wire Range of Application Cold-Resistant Certification ISO9001, CE Brand Mobilis Voltage 440V/750V; 50Hz Working Temperature -30degree~75degree Current Intensity 12A-200A Grade 4-5 Protect Grade IP23 Transport Package Standard Package Specification 1m-4m Trademark Motilis Origin France HS Code 8431310900 Production Capacity 200000m/YearProduct Description
French Motilis electrical supply rail/Industrial sliding linePresentation
The electrical supply rail Mobilis Inno meets the requirements of the most demanding manufacturers, installers, and end-users of mobile equipment: safety, compact, fast assembling, operation reliability, and easy maintenance of this electrical supply rail for travelling cranes and other mobile equipment requiring mobile power socket.
EXCELLENT SAFETY AND OPERATOR PROTECTION:
The closed profile of the mounted line with the full set of accessories has a protection level of IP23, which means that the equipment is protected so that people cannot access the dangerous sections, even under the rain. All the accessories ensure the IP23 level.
DETAILS OF MOBILIS INNO PROFILE
Number of poles : 4 Intensity: 40A, 60A
Maximum operating voltage: 690 V
STANDARDS
Protection level IP23 according to EN60529
Meets the requirements of Standards EN61439-1, EN61439-6, EN60204-32 and EN60529 (IP23)
Technical data
Rated operational intensity:
The MOBILIS INNO lines are available in rated intensities 40A and 60A.
The real current capacity depends on the operating factors and the ambient temperature.
Number of poles: 4 poles
The ground conductor (PE) is marked on the line by a green-yellow band.
Rated operational voltage: 690V, 50Hz, 60Hz, or DC
Temperature of use:
-30°C to +55°C
Max trolley speed: 60m/min
Enviroment
Category 3 of ISO 2081 (outside mild), inside, outside use under rain or dust.
The Mobilis INNO system is designed to work with the opening downwards. Validate the ability of the product to operate in an unfavorable environment (ex: humid air flow, steam, frost, etc.). A version with 600h resistance under saline mist is available, on request.
In case of harsh conditions of high humidity type, dust, frost, snow, ice, temperatures> 55 ° C or others, prefer the Mobilis Elite range with the respect of our recommendations for these specific environments.

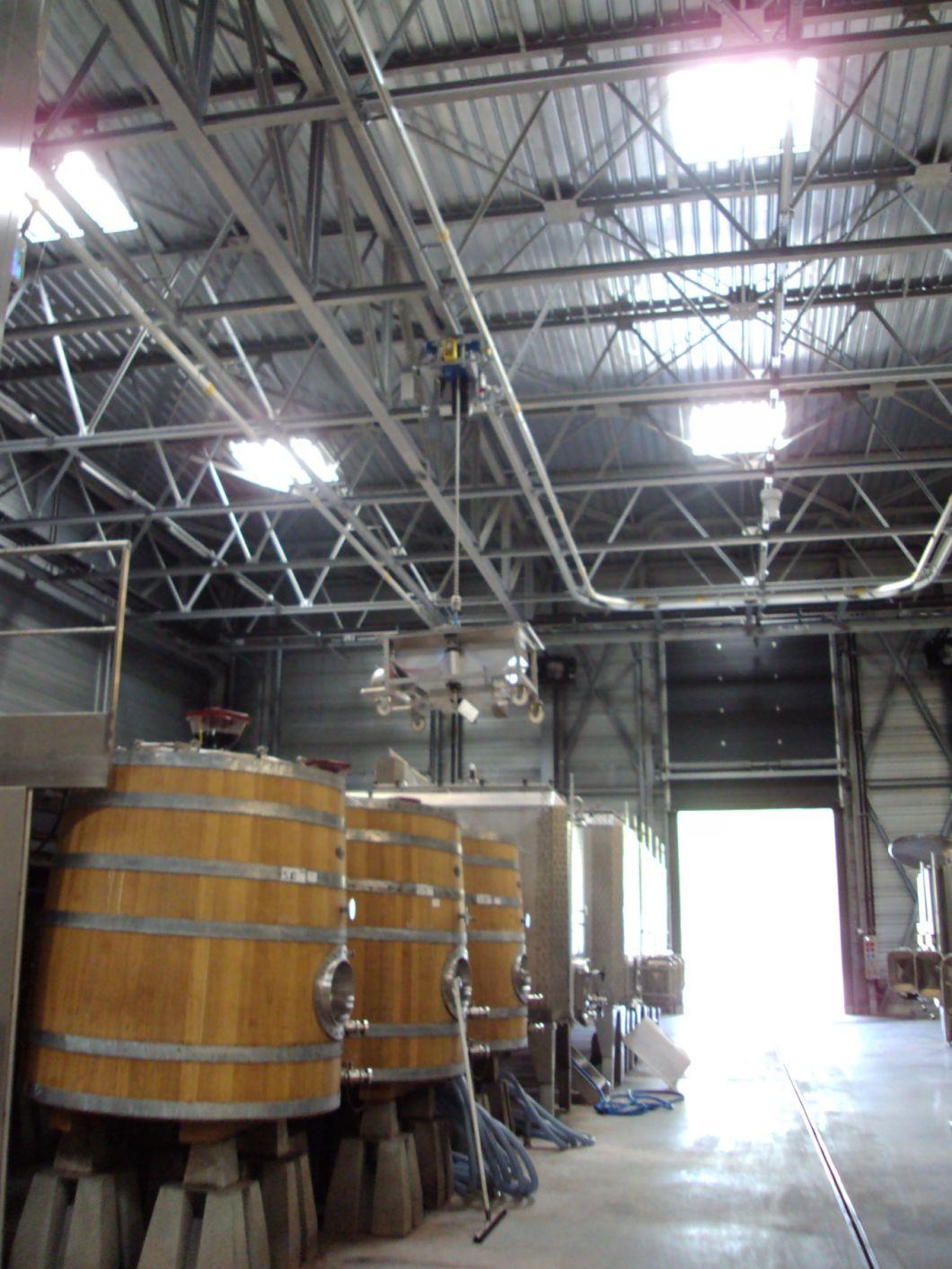

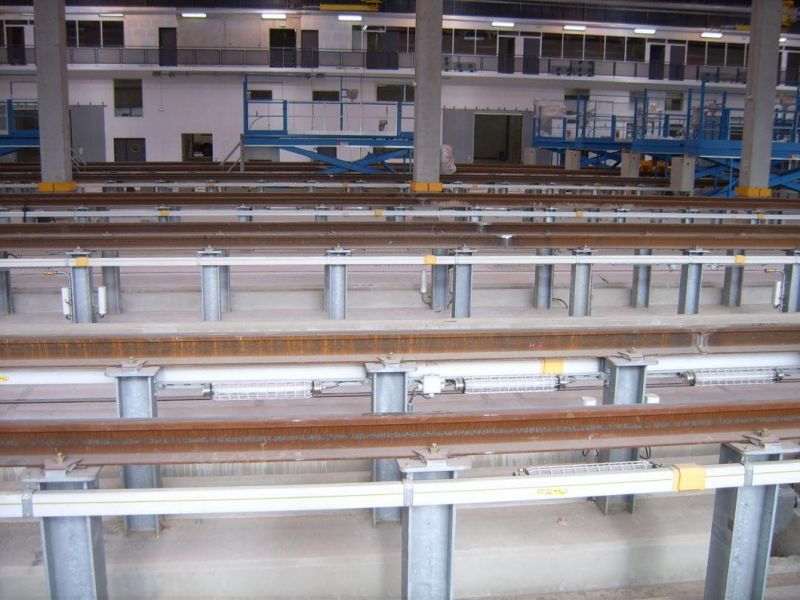

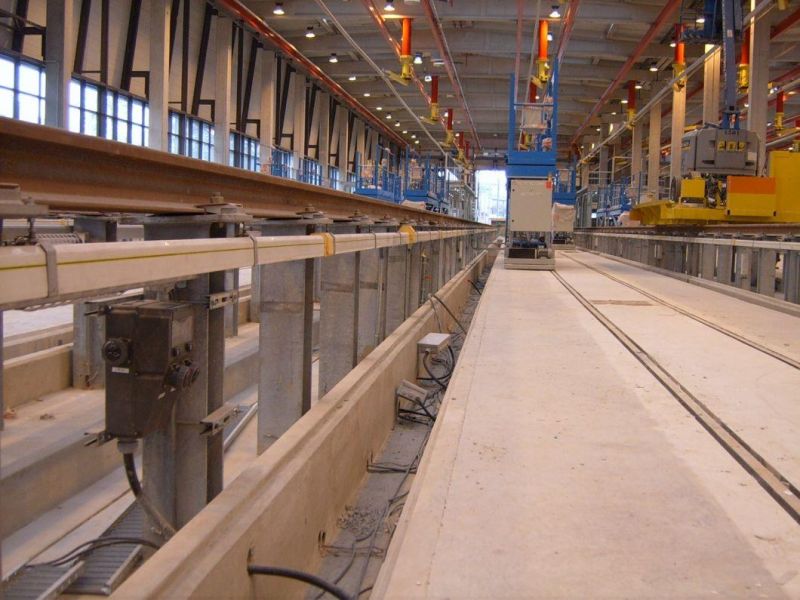

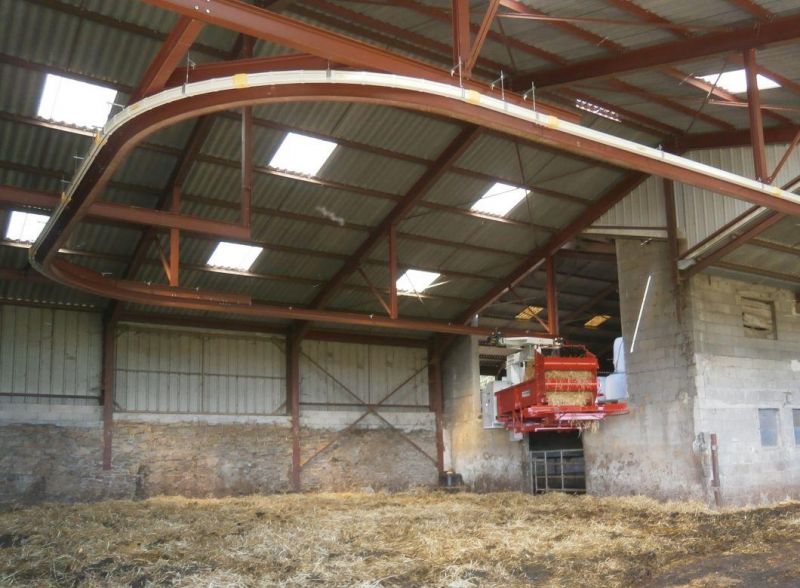

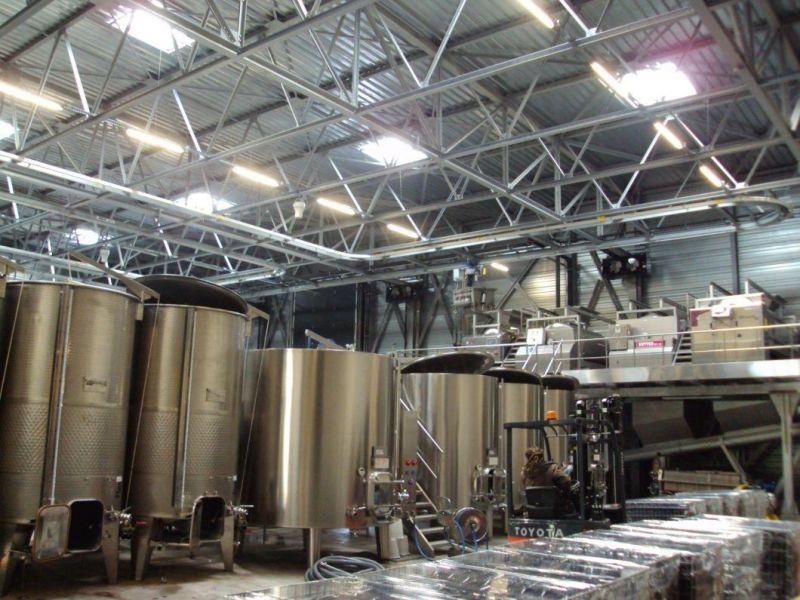

Sliding Pictures
