• Model NO.：TXXP 1KV
• Wire Core Material：Al Conductor
• Certification：ISO, CCC
• Model：Txxp
• Brand：Hongda
• Conductors：Aluminum Conductor, Round Stranded (RM)
• Transport Package：500m,Drum, 1000m,Drum
• Specification：16mm2 to 400mm2
• Trademark：Hongda
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：1000km,Month

Basic Info.

Model NO. TXXP 1KV Wire Core Material Al Conductor Certification ISO, CCC Model Txxp Brand Hongda Conductors Aluminum Conductor, Round Stranded (RM) Transport Package 500m/Drum, 1000m/Drum Specification 16mm2 to 400mm2 Trademark Hongda Origin Henan, China HS Code 8544492100 Production Capacity 1000km/Month

Product Description

TXXP 1KV 400 630 Electrical Energy Al conductors XLPE Cable

TXXP 1KV
Power cables 0,6/1 kV for the supply of electrical energy XLPE Insulated and PVC Sheathed, With Aluminium conductors

APPLICATION
Interconnection cable for transmitting large amount of energy.

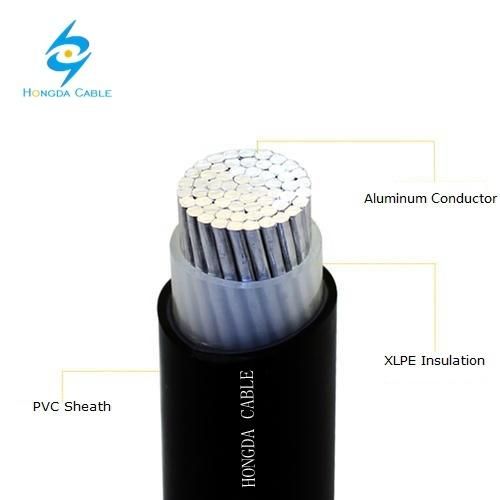

CONSTRUCTION
-- Aluminum conductor, round stranded (RM)
-- Core insulation (XLPE)
-- Sheath (PVC black, UV resistant)



TECHNICAL DATA
Standard: IEC 60502-1
Rated voltage: 0.6/1 kV
Test voltage: 3.5 kV/50 Hz
Temperature range:
laying temperature: min. -5 °C
operating temperature: max. +70 °C
short-circuit temperature: max. +250 °C/5 s
Bending radius (min.): 15 x Φ of cable (single core)
Core identification: HD 308 S2
Fire properties: flame retardant: EN 60332-1-2

CONSTRUCTION DATA OF POWER CABLES / TXXP 1 KV

Number of cores and nominal cross section mm2	Aluminium figure kg/km	Overall diameter appr. mm	Weight appr. kg/km	Current carrying capacity ground A	Current carrying capacity air A
1 x 25 RM	74,0	11	174,0	106	87
1 x 35 RM	103,0	12	209,0	127	107
1 x 50 RM	147,0	14	282,0	151	131
1 x 70 RM	206,0	16	363,0	185	166
1 x 95 RM	279,0	18	520,0	222	205
1 x 120 RM	353,0	19	557,0	253	239
1 x 150 RM	441,0	21	674,0	284	273
1 x 185 RM	544,0	24	826,0	322	314
1 x 240 RM	706,0	26	1052,0	375	378
1 x 300 RM	882,0	29	1282,0	425	437
1 x 400 RM	1.200,0	32	1598,0	487	513
1 x 500 RM	1.510,0	36	2022,0	558	600
1 x 630 RM	1.900,0	40	2200,0	635	701
