Tyif Tyir XLPE Insulated Bundled Overhead Line Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Industrial
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：No
- Material Shape：Round Wire
Base Info
- Model NO.：TYIR Cable
- Wire Core Material：Aluminium
- Certification：ISO, CCC
- Model：Tyir , T2X
- Brand：Hongda
- Standard：Sf 31,1999, HD 626 S1
- Transport Package：Wooden Drum or as Customer Requirement
- Specification：6mm2 to 120mm2
- Trademark：Hongda Cable
- Origin：China
- HS Code：8544492100
- Production Capacity：1600km,Month
Description
3. TECHNICAL DATA
Standard: SF 31/1999
HD 626 S1
Rated voltage: 0.6/1kV
Test voltage: 4kV /50 Hz
Temperature range
Laying temperature: min. -20ºC
Conductor temperature: max. +70ºC
Short-circuit temperature: max. +130ºC / 5s
Bending radius (min): 18xΦ of cable

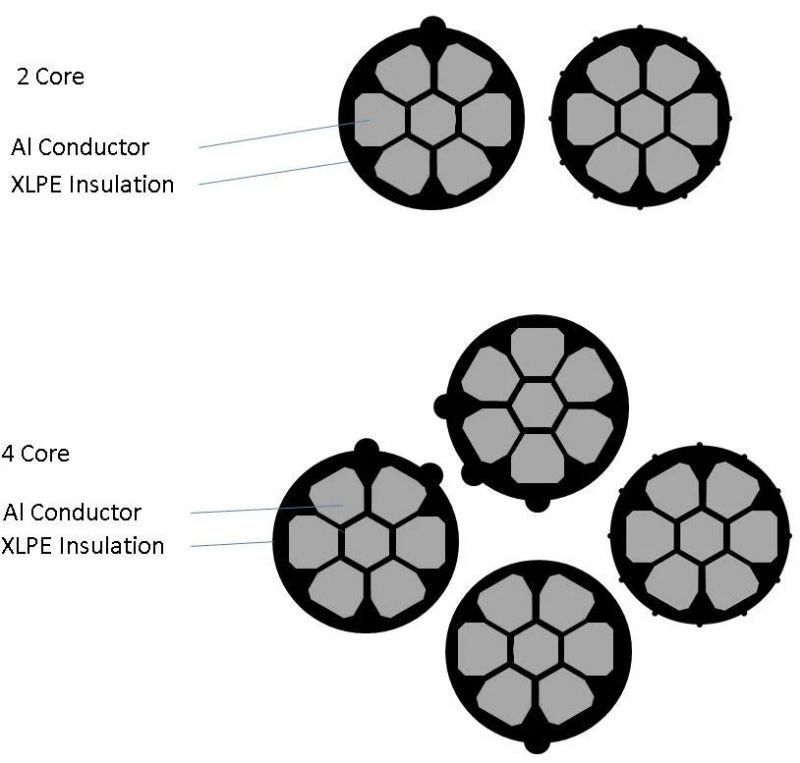

Core identification: 1, 2, resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral conductor is smooth. Inscripition on the cores identify cable.
4. CONSTRUCTION DATA OF POWER CABLES / TYIR:

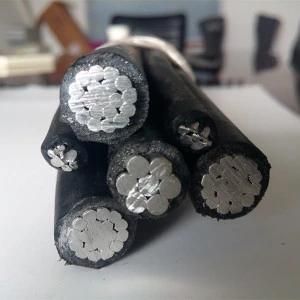

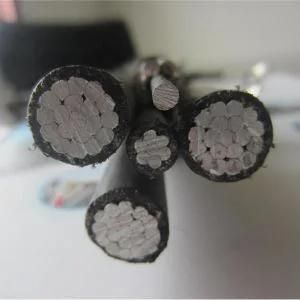

TYIR XLPE insulated bundled overhead line
