• Model NO.：Concentric cable BL48
• Wire Core Material：Tinned Wire
• Certification：ISO, CCC, CE
• Model：Concentric Cable
• Brand：Yifang

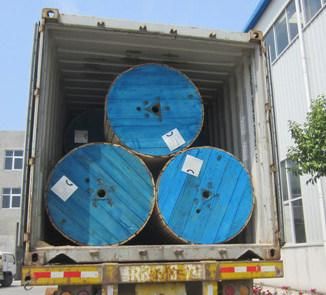

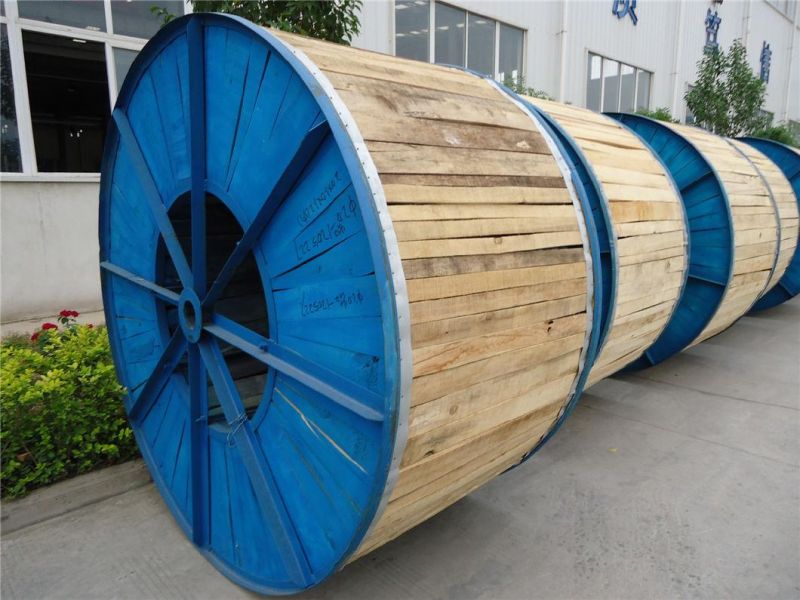

• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：10mm2
• Trademark：Yifang
• Origin：Henan Province, China
• HS Code：8544601200
• Production Capacity：500 Kilometers,Month

Basic Info.

Model NO. Concentric cable BL48 Wire Core Material Tinned Wire Certification ISO, CCC, CE Model Concentric Cable Brand Yifang Transport Package Wooden Drum or Wooden&Steel Drum Specification 10mm2 Trademark Yifang Origin Henan Province, China HS Code 8544601200 Production Capacity 500 Kilometers/Month

Product Description

Tinned Copper Conductor XLPE Insulated Tinned Copper Wire Braiding Shielded 66KV DC Cable

Product Description

The cable design conforms to IEC 60502 part 2. However if requested, we can separately offer guaranteed technical particulars for cables as per different international specifications or specific customer needs.

CONSTRUCTIONAL FEATURES

Conductor
Tinned copper wire upto 1000 sq mm will be circular compacted & stranded and shall comply with IEC-60228 Class 2.

Conductor screen
This will be an extruded layer of semi conducting material applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen.

Insulation
TPE Insulation.

Insulation screen
Tinned Copper Wire

Insualtion
TPE Insulation

Insulation screen
Tinned Copper Wire

Inner sheath
PVC

Inner sheath
TPE

Separator sheath

Metallic screen
Tinned copper braiding


Outer sheath
An extruded layer is applied over the armour in case of armoured cables and over the laid up cores in case of unarmoured cables. Outer sheath material can be either PVC of grade ST2 or PE of grade ST7 as per IEC-60502 Part 2.
