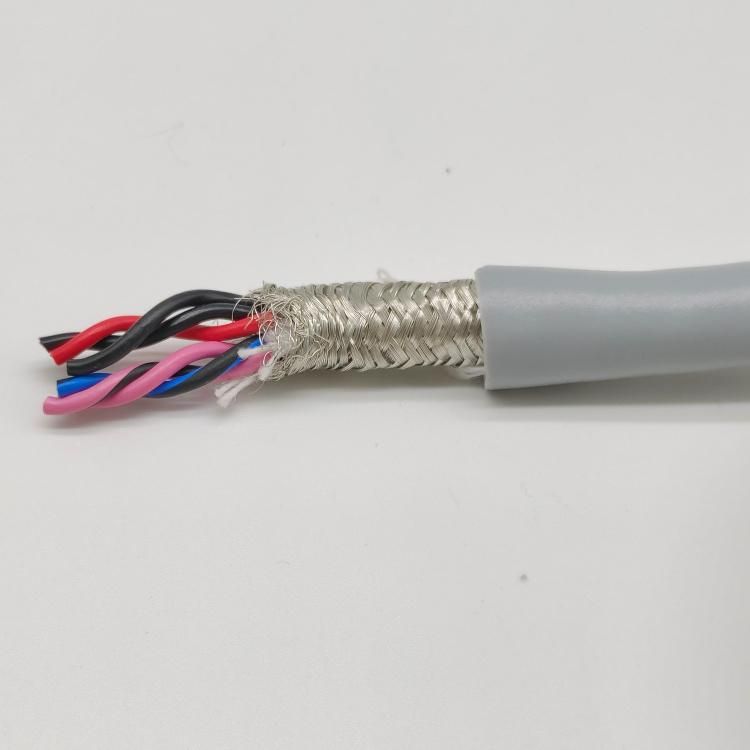

Ibs 612 Cable PVC Interbus-S Cable for Indoor and Outdoor Installation

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：IBS 612 Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemIBS 612 Cable PVC Interbus-S Cable for Indoor and Outdoor InstallationConductorBare copper stranded condutorInsulationPEInner sheathPURStrandingTwisted to pairsWrappingPETP foilScreenTinned copper braidingOuter sheathPVCCore numberMulticores (As client's requirement)Peak operating voltageMax. 350 VTesting voltage

Core/core 1000 V

Core/screen 1000 V

Min. bending radius fixed 7,5 x dTemperature range

Fixed laying: -30/+70°C

Flexible application: -5/+70°C

ApplicationThis cable is a shielded PVC Interbus-S cable for outdoor and underground installation. The cable twisted in pairs with a minimum bending radius of 7.5 x d is primarily used for communication in the field level (e.g. sensors, actuators, controllers), but also for information transmission between the field level and the control level above (e.g. SPS).
