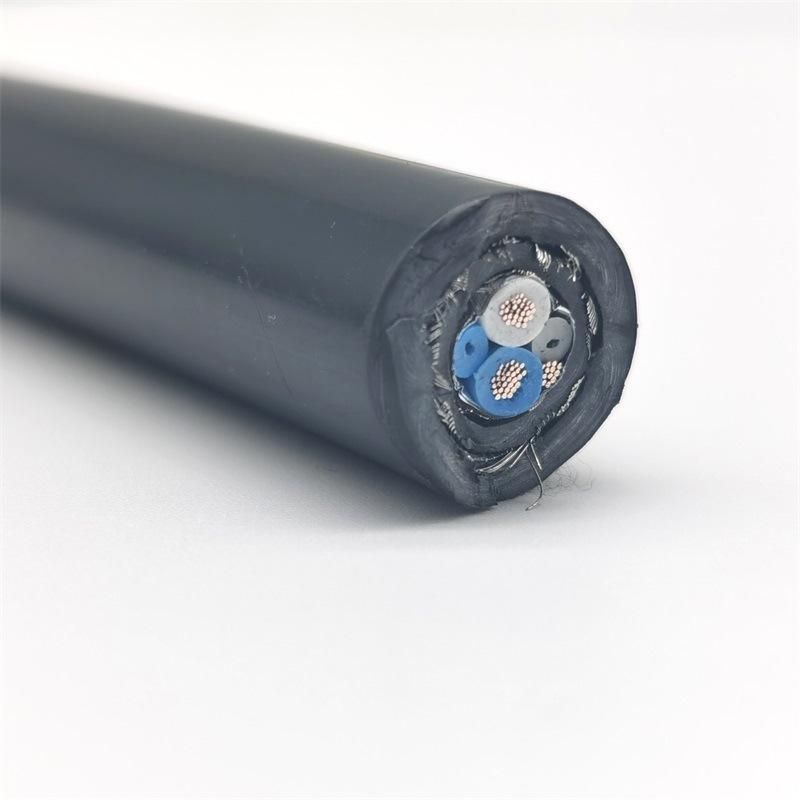

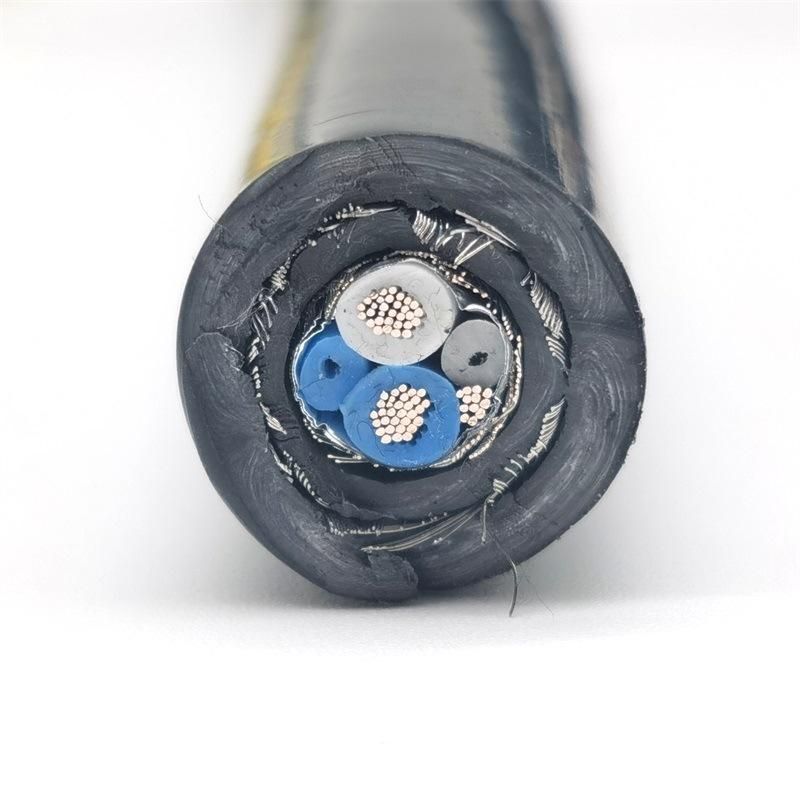

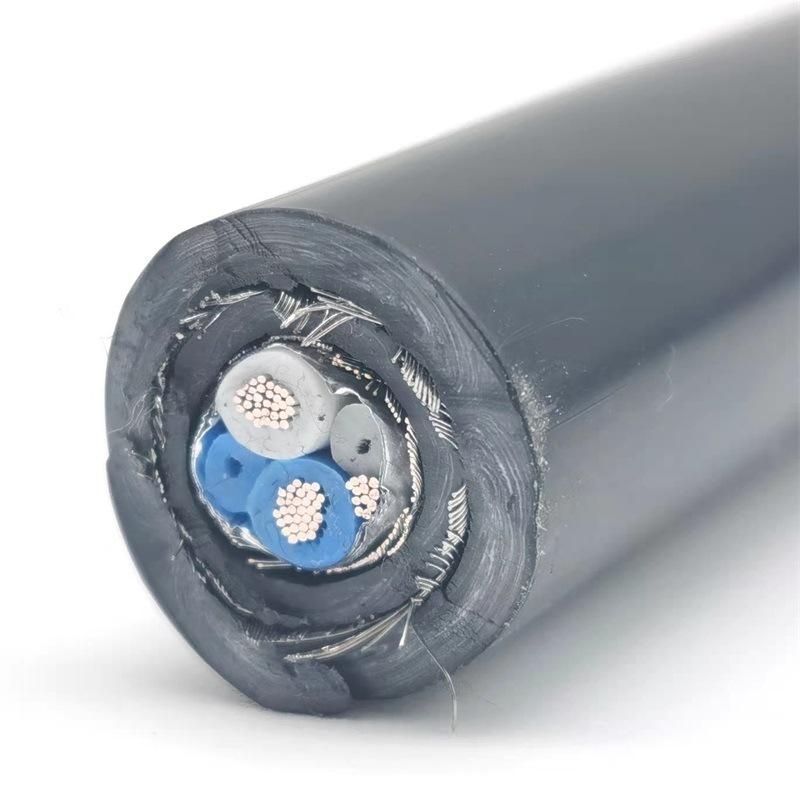

Highly Flexible S 90 C PUR Control Cable with Numbered Cores and Overall Copper Screen

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：S 90 C Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemHighly Flexible S 90 C PUR Control Cable with Numbered Cores and Overall Copper ScreenConductorBare copper stranded condutorInsulationPVCStrandingSpecially adjusted layering with non-woven tape over each layerInner sheathPVCScreenTinned copper braidingWrappingNon-woven tapeOuter sheathPURCore numberMulticores (As client's requirement)Nominal voltageUo/U 300/500 VTesting voltage

Core/core 3000 V

Core/screen 2000 V

Min. bending radius fixed Continuously flexible: 7,5 x dTemperature range

Fixed laying: -40/+70°C

Flexible application: +5/+70°C

ApplicationS 90 C is a high flexible cable with overall copper screen and numbered cores as well as increased efficiency. The oil resistant cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, welding machine and cutting systems.
