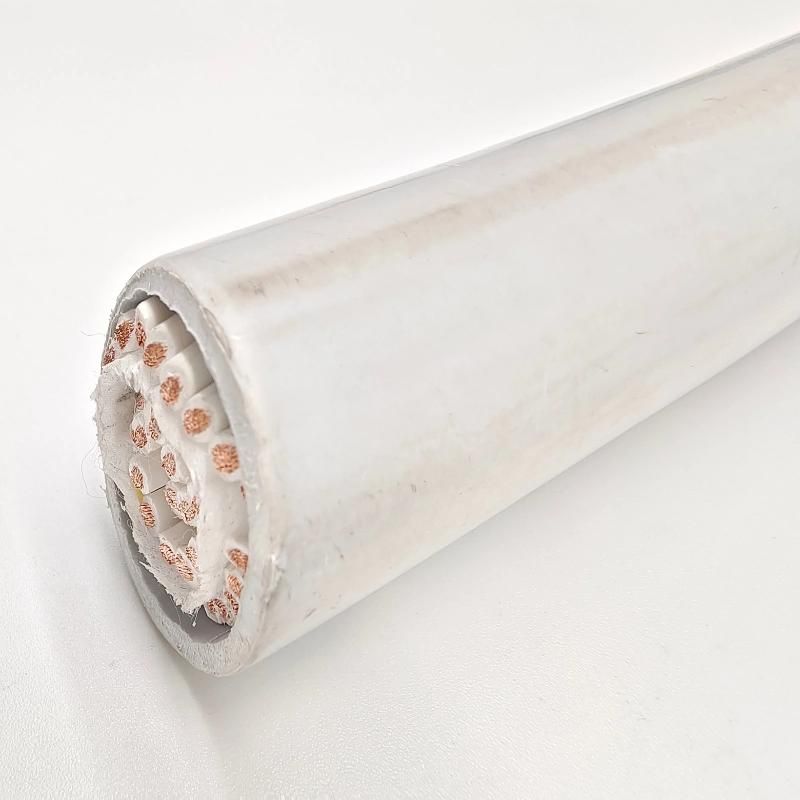

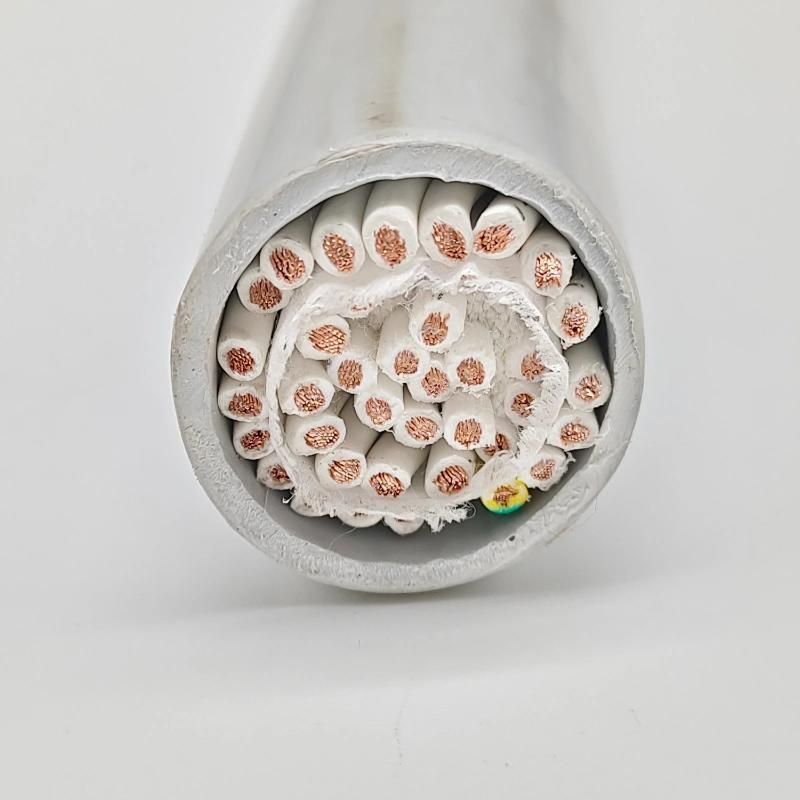

K12ystcu11y / K2ystfu11y Cable Halogen-Free Lift Control Cable for Dry and Humid Rooms

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：Special Thermoplastic Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：K12YSTCU11Y , K2YSTFU11Y Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemK12YSTCU11Y / K2YSTFU11Y Cable ConductorBare copper stranded condutorInsulationSpecial thermoplastic compound StrandingStranded in pairs, cores stranded in layers Outer sheathPURCore numberMulticores (As client's requirement)Rated voltage 0,5 mm² = 300 V; > 1,0 mm² = Uo/U 300/500 VMin. bending radius fixed 15 x dMin. bending radius moved15 x dOperat. temp. fixed min/max -30 °C / +70 °COperat. temp. moved min/max -30 °C / +70 °CBurning behaviorSelf-extinguishing and flame retardant acc. to IEC  60332-2-2 Standard Similar to DIN VDE 0282 ColorOptionalApplicationHalogen-free lift control cable with or without textile supporting element for medium mechanical stress. Suitable for dry and humid rooms.
