Cable for Battery of Vehicle Electrical System
Jiangyin Yuanda Electrical Material Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper or Tinned Copper
- Insulation Material：Silicone Rubber
- Material Shape：Round Wire
Base Info
- Range of Application：for Autos or Elctrics
- Certification：ISO9001, UL, CCC, RoHS, VDE
- Brand：Yuanda
- Nominal Voltage：60V DC, 25V AC
- Transport Package：Pallet,Carton,Tray,Reel
- Specification：ISO9001, UL, CCC, RoHS, VDE
- Trademark：Yuanda
- Origin：Wuxi, China
- HS Code：8544492100
- Production Capacity：1000km,Day
Description
ConductorInsulation Max resistance at 20ºCΩ/km Spec
AWG Section
mm2 Conductor
construction
No./D(mm) Diameter
(mm) Thickness
(mm) Nominal outer
diameter
(mm) Max outer
diameter
(mm)
Cu core
Tinned-Cu core6 13 270/0.25 5.4 1.09 7.2 7.6 1.348 1.403 4 19 390/0.25 6.5 1.12 8.7 9.2 0.8481 0.8820 2 32 655/0.25 8.4 1.12 10.5 10.8 0.5335 0.5548 1 40 575/0.30 9.5 1.12 11.5 11.8 0.4230 0.4398 1/0 50 710/0.30 10.5 1.12 12.5 12.8 0.3354 0.3498 2/0 62 495/0.40 11.7 1.12 13.9 14.3 0.2660 0.2766 3/0 81 650/0.40 13.4 1.12 15.6 16.3 0.2110 0.2194 4/0 103 825/0.40 15.2 1.12 17.5 18.2 0.1673 0.1722

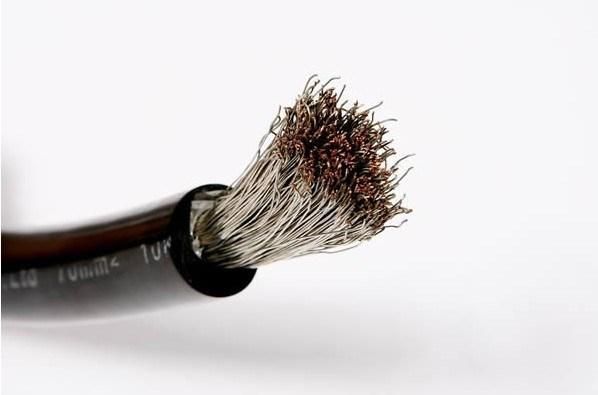

Product Picture
Company Information
Wuxi Yuanda Electrical Material Co., Ltd. Is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union.
Our products including silicon rubber wires and cables, FSG silicon extruded and glassfiber braided sleeves, HST silicon extruded and glassfiber braided sleevings, SRG silicon extruded and glassfiber braided sleevings, SR silicon sleeves as well as other silicon rubber items are widely used for aviation, metallurgy, petroleum, electronic instruments, meters, household apparatus, transformers and motors.
With strong technical power, advanced production equipment, complete testing facilities and perfect quality ensurance system, we have many years' production experience in silicon rubber wires and cables. Our products are well sold around the world, including U. S. A, U. K., Germany, Denmark, Canada, India, and Japan etc...
If you are interested in our products, please contact with us! Also, you can tell us your requirements, and we can produce for you.
