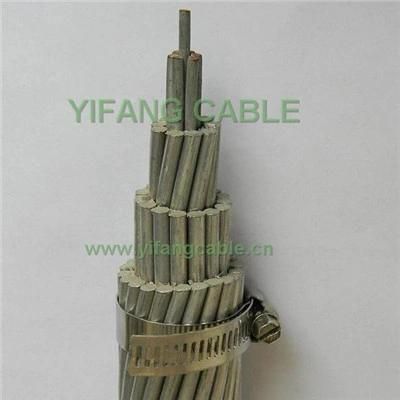

ACSR Rabbit 50mm2 BS 215 Part 2

YIFANG ELECTRIC GROUP INC.
  • Type：Bare
  • Conductor Type：Stranded
  • Application：Overhead
  • Conductor Material：Aluminum
  • Sheath Material：None
  • Insulation Material：None

Base Info

  • Model NO.：ACSR Rabbit
  • Material Shape：Round Wire
  • Range of Application：Overhead Distributing Line
  • Certification：ISO9001, CE, UL, CCC
  • Brand：Yifang Cable
  • Section Area：50mm2
  • Code Name：ACSR Rabbit
  • Material：Aluminum Condcutor
  • Strands：6+1 Strands
  • Standards：BS 215 Part 2
  • Exported Country：Kenya,etc

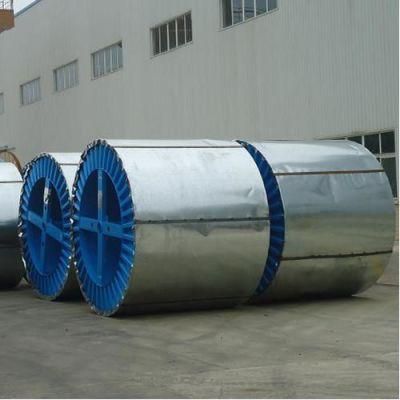

  • Transport Package：Wooden Drum
  • Specification：1.1m size Drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：7614100000
  • Production Capacity：800km Per Month

Description

  ACSR 100mm2-DogItemDescriptionUnitACSR Conductor1Manufacturer ZHENGZHOU YIFANG CABLE CO ., LTD.2Governing Standards BS 2153Copies of Standards Attached:Yes/NoYes4Copies of type test attached?Yes/NoYes5If standards is not BS:215(Part II) are  conductor specifications same as   the   BS:215   requirements   in respect of the following?:   DiameterYes/NoYes Strand sizeYes/NoYes Direction of layYes/NoYes Lay ratioYes/NoYes MaterialsYes/NoYes6Technical data:    DogDog Nominal diameter (mm) 14.15 Stranding (Al/Steel) 6/7 Breaking strength (kN) 32.7 Mass (kg/km) 394 Resistance at 20ºC 0.2733
