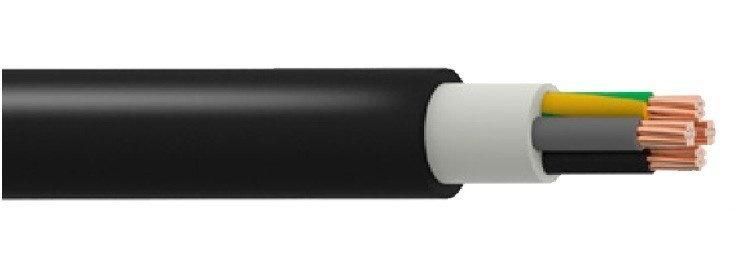

Low Voltage Ymvk-MB 0, 6/1kv Un-Armoured Flame Retardant Power Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：YMvK-mb cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, SGS
- Model：YJV
- Brand：Hongda
- Rated Voltage：0.6,1kv, 600,1000V, 1.1kv
- Transport Package：500m or 1000m Per Drum
- Specification：1.5-300 mm2
- Trademark：Hongda or OEM
- Origin：China
- HS Code：8544492100
- Production Capacity：4000 Km , Year
Description
DIMENSIONSCores
number
N° Cross
section
mm² Approx
conductor
diameter
mm Insulation
medium
thickness
mm Min. sheath
thickness
mm Max.
external
diameter
mm Electric
resistance at
20°C
ohm/km Approx
cable weight
kg/km Current
carrying
air free
A Current
carrying
burried
A Single core 1x 1.5 1.4 0.7 1.09 6.6 12.1 45 24 31 1x 2.5 1.8 0.7 1.09 7 7.41 55 33 41 1x 4 2.25 0.7 1.09 7.6 4.61 75 45 59 1x 6 3.05 0.7 1.09 8.2 3.08 100 58 74 1x 10 3.8 0.7 1.09 9.2 1.83 140 80 101 1x 16 4.7 0.7 1.09 10.5 1.15 205 107 128 1x 25 5.9 0.9 1.09 12.5 0.727 315 138 144 1x 35 7.1 0.9 1.09 13.5 0.524 400 169 174 1x 50 8 1 1.09 15 0.387 530 207 206 1x 70 9.6 1.1 1.09 17 0.268 725 268 254 1x 95 11.4 1.1 1.18 19 0.193 985 328 301 1x 120 13.1 1.2 1.18 21 0.153 1260 382 343 1x 150 14.6 1.4 1.26 23 0.124 1520 441 387 1x 185 16.5 1.6 1.26 25.5 0.0991 1940 506 434 1x 240 18.4 1.7 1.35 28.5 0.0754 2310 599 501 1x 300 21.1 1.8 1.43 31 0.0601 3200 693 565 1x 400 23.5 2 1.52 34.2 0.047 3931 - 639 1x 500 26.5 2.2 1.6 38 0.0366 5020 - 713 1x 630 30.1 2.4 1.69 44 0.0286 5324 - 785 Two cores 2x 1.5 1.4 0.7 1.43 10.5 12.1 115 26 37 2x 2.5 1.8 0.7 1.43 11.5 7.41 145 36 48 2x 4 2.25 0.7 1.43 13 4.61 195 49 63 2x 6 3.05 0.7 1.43 14 3.08 265 63 80 2x 10 3.8 0.7 1.43 16 1.83 390 86 104 2x 16 4.7 0.7 1.43 18.5 1.15 560 115 136 2x 25 5.9 0.9 1.43 22 0.727 850 149 173 2x 35 7.1 0.9 1.43 24.5 0.524 1080 185 208 Three cores 3x 1.5 1.4 0.7 1.43 11 12.1 130 23 31 3x 2.5 1.8 0.7 1.43 12.5 7.41 170 31 41 3x 4 2.25 0.7 1.43 13.5 4.61 230 42 53 3x 6 3.05 0.7 1.43 15 3.08 325 54 66 3x 10 3.8 0.7 1.43 17 1.83 485 75 87 3x 16 4.7 0.7 1.43 19.5 1.15 705 100 113 3x 25 5.9 0.9 1.43 23.5 0.727 1080 127 144 3x 35 7.1 0.9 1.43 26 0.524 1390 158 174 3x 50 8 1 1.43 29 0.387 1840 192 206 3x 70 9.6 1.1 1.52 34 0.268 2540 246 254 3x 95 11.4 1.1 1.6 38.5 0.193 3430 298 301 3x 120 13.1 1.2 1.69 42.5 0.153 4440 346 343 3x 150 14.6 1.4 1.86 47.5 0.124 5380 395 395 3x 185 16.5 1.6 1.94 53 9.91 6920 450 434 3x 240 18.4 1.7 2.11 59.5 7.54 8420 538 501 3x 300 21.1 1.8 2.28 66 6.01 11300 621 565 Cores
number
N° Cross
section
mm² Approx
conductor
diameter
mm Insulation
medium
thickness
mm Min. sheath
thickness
mm Max.
external
diameter
mm Electric
resistance at
20°C
ohm/km Approx
cable weight
kg/km Current
carrying air
free
A Current
carrying
burried
A Four cores 4x 1.5 1.4 0.7 1.43 12 12.1 150 23 31 4x 2.5 1.8 0.7 1.43 13 7.41 205 31 41 4x 4 2.25 0.7 1.43 14.5 4.61 280 42 53 4x 6 3.05 0.7 1.43 16 3.08 390 54 66 4x 10 3.8 0.7 1.43 18.5 1.83 590 75 87 4x 16 4.7 0.7 1.43 21 1.15 870 100 113 4x 25 5.9 0.9 1.43 25.5 0.727 1365 127 144 4x 35 7.1 0.9 1.43 28.5 0.524 1760 158 174 4x 50 8.1 1 1.52 32.5 0.387 2466 192 206 4x 70 9.7 1.1 1.6 37.5 0.268 3442 246 254 4x 95 11.4 1.1 1.69 42.5 0.193 4690 298 301 4x 120 13.1 1.2 1.86 47.5 0.153 6119 346 343 4x 150 14.6 1.4 1.94 52.5 0.124 7405 395 387 4x 185 16.5 1.6 2.11 59 9.91 8820 450 434 4x 240 18.5 1.7 2.28 66.5 7.54 11865 538 501 4x 300 21 1.8 2.45 73.5 6.01 14716 621 565 3x50 + 1x35 8 1 1.52 31.1 0.387 2160 192 206 3x70 + 1x50 9.6 1.1 1.6 36.2 0.268 3010 246 254 3x95 + 1x50 11.4 1.1 1.69 40.6 0.193 3960 298 301 3x120 + 1x70 13.1 1.2 1.86 45.4 0.153 5160 346 343 3x150 + 1x70 14.6 1.4 1.94 49.5 0.124 6150 395 387 3x185 + 1x70 16.5 1.6 2.11 54.4 9.91 7780 450 434 3x240 + 1x95 18.4 1.7 2.28 61.5 7.54 9550 538 501 Five cores 5x 1.5 1.4 0.7 1.43 13 12.1 180 23 31 5x 2.5 1.8 0.7 1.43 14.5 7.41 240 31 41 5x 4 2.25 0.7 1.43 16 4.61 335 42 53 5x 6 3.05 0.7 1.43 17.5 3.08 475 54 66 5x 10 3.8 0.7 1.43 20 1.83 720 75 87 5x 16 4.7 0.7 1.43 23 1.15 1060 100 113 5x 25 5.9 0.9 1.43 28 0.727 1645 127 144 Multicores 7x 1.5 1.4 0.7 1.43 13.5 12.1 220 15 22 7x 2.5 1.8 0.7 1.43 15 7.41 310 20.5 28 10x 1.5 1.4 0.7 1.43 16.5 12.1 310 13 18.5 10x 2.5 1.8 0.7 1.43 19 7.41 440 18 24.5 12x 1.5 1.4 0.7 1.43 17 12.1 370 12.5 18 12x 2.5 1.8 0.7 1.43 19.5 7.41 525 17 24 14x 1.5 1.4 0.7 1.43 18 12.1 430 12 17 14x 2.5 1.8 0.7 1.43 20.5 7.41 610 16 22 19x 1.5 1.4 0.7 1.43 19.5 12.1 560 10.5 15 19x 2.5 1.8 0.7 1.43 22.5 7.41 745 14.5 19.5 24x 1.5 1.4 0.7 1.43 22.5 12.1 710 10 14 24x 2.5 1.8 0.7 1.43 25.5 7.41 1000 13 18 30x 1.5 1.4 0.7 1.43 24 12.1 806 9 12.5 30x 2.5 1.8 0.7 1.43 27.5 7.41 1135 12 16.5 37x 1.5 1.4 0.7 1.43 25.5 12.1 972 8 12 37x 2.5 1.8 0.7 1.43 29.5 7.41 1350 11 15.5
number
N°
section
mm²
conductor
diameter
mm
medium
thickness
mm
thickness
mm
external
diameter
mm
resistance at
20°C
ohm/km
cable weight
kg/km
carrying
air free
A
carrying
burried
A
number
N°
section
mm²
conductor
diameter
mm
medium
thickness
mm
thickness
mm
external
diameter
mm
resistance at
20°C
ohm/km
cable weight
kg/km
carrying air
free
A
carrying
burried
A
Note :
Conductor Shape
1.5 - 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
16 sqmm supplied in non compacted circular stranded (rm) conductor shape
25 - 300 sqmm supplied in compacted circular stranded (cm) conductor shape
Standard Packing
1.5 - 50 sqmm supplied in wooden drum @ 1000 m
70 - 300 sqmm will be suplied in wooden drum on available length
Length Tolerance per drum ± 2%
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.
