• Model NO.：NL-95,G
• Material Shape：Round Wire
• Range of Application：Telecommunication
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Optelec
• Preformed Dead-Ends：Galvanized Steel Wire
• Suitable Stay Wire Dia.：12.5mm
• Length：1333mm
• Color Code：Orange
• Transport Package：Wooden Case
• Specification：CE, RoHS, SGS, ISO
• Trademark：Powtech
• Origin：China
• HS Code：73269090
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. NL-95/G Material Shape Round Wire Range of Application Telecommunication Certification ISO9001, CE, UL, CCC, RoHS Brand Optelec Preformed Dead-Ends Galvanized Steel Wire Suitable Stay Wire Dia. 12.5mm Length 1333mm Color Code Orange Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 73269090 Production Capacity 50000PCS/Month

Product Description

Factory Price Preform Dead End Guy Grip for Stay Wire

Description:
Preformed dead-ends are intended for use on single wood poles

Galvanized strand

Preformed dead-ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The preformed dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.

Preformed dead-ends are made of the same material as the strand to which they are applied. Preformed dead-ends should be used on hardware that is held in a fixed position. The fitting should not be allowed to rotate or spin about the axis of the strand. They should not be used as tools inlcuding come-alongs, pulling-in grips, etc.
Technical Specifications:

Model	Guy Wire (mm)	Length (mm)	Guy Wire (mm2)	Weight (kg)	Color code
NL-25/G	6.6	635	25	0.2	Yellow
NL-35/G	7.65~7.95	711	35	0.3	Black
NL-50/G	8.95~9.30	901	50	0.5	Orange
NL-70/G	10.82~11.10	1016	70	0.8	Green
NL-95/G	12.5	1333	95	1.7	Orange
NL-100/G	13.0	1333	100	1.7	Yellow
NL-120/G	14.0	1460	120	2.2	Yellow

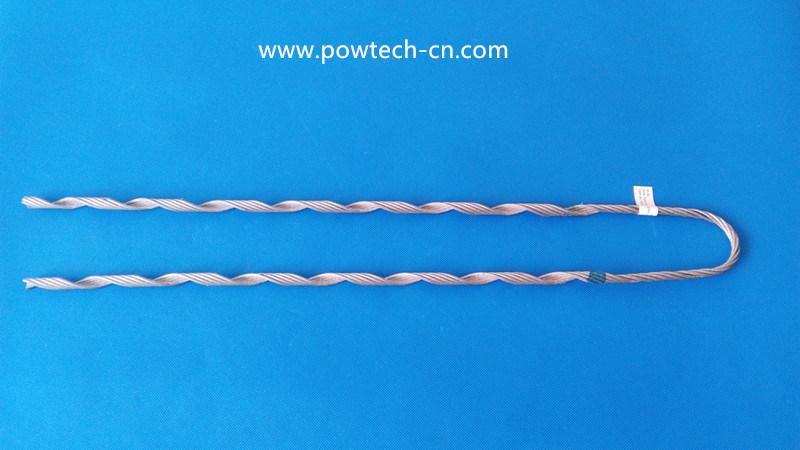

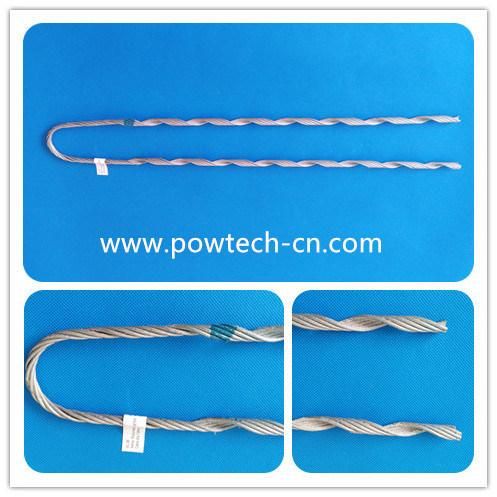

Detailed Images:

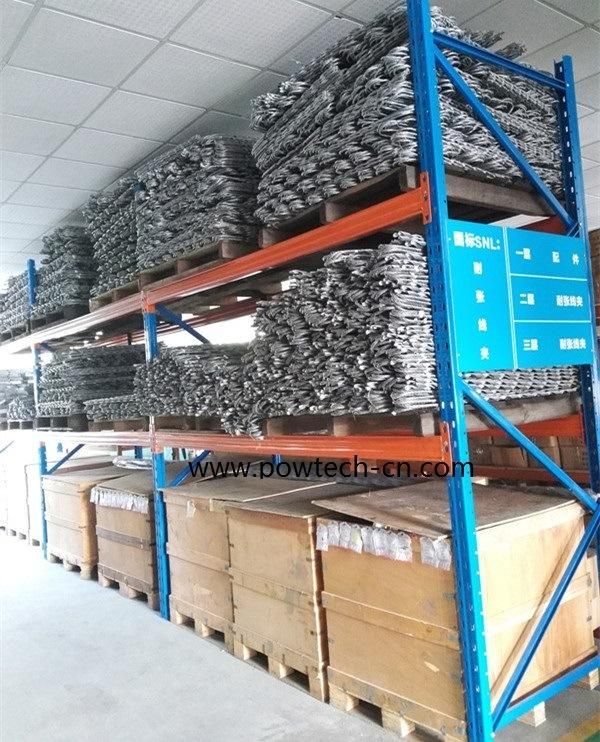

Warehouse:

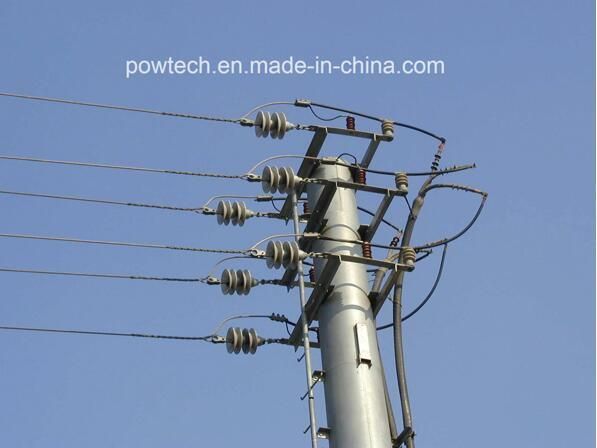

Installation Guide:

Production Line:


Certificate:






Advantages:

Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech isreliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.

Why Choose Us?
1.Strict quality control system

2.Factory direct-sales,Lower purchasing cost

3.Professional,efficient after-sales service,Time and manpower saving

4.Experienced workers team,Advanced technicians,Sophisticated equipment

5.Small trial order/OEM product/artwork is acceptable

6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated


FAQ
