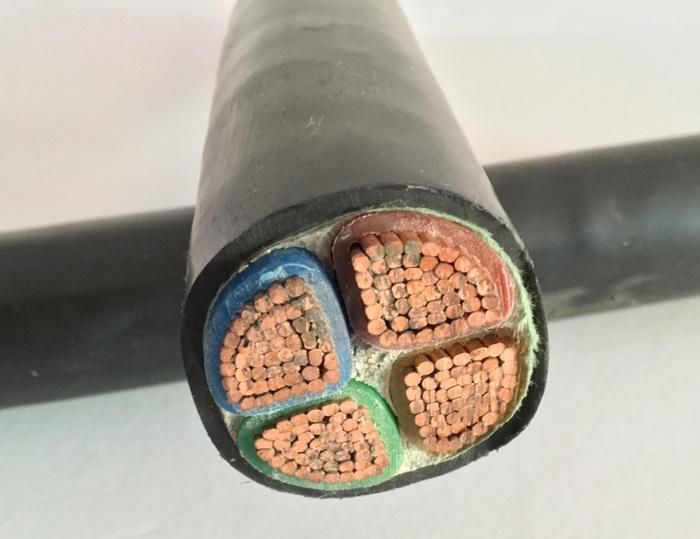

• Model NO.：240 sqmm power cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：YJV
• Brand：OEM
• Rated Voltage：600,1000V
• Transport Package：Steel & Wooden Drum
• Specification：copper cable 4c 240mm
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：800km Per Month

TypeDescriptionVV  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC sheath, low voltage power cableVLV  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC sheath, low voltage power cableVV22  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cableVLV22  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cableVV32  0.6/1kV0.6/1kV copper conductor, PVC insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cableVLV32  0.6/1kV0.6/1kV aluminum conductor, PVC insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cableYJV  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC sheath, low voltage power cableYJLV  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC sheath, low voltage power cableYJV22  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cableYJLV22  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC inner sheath, Galvanized steel tape armored, PVC outer sheath, low voltage power cableYJV32  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cableYJLV32  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PVC inner sheath, Galvanized steel wire armored, PVC outer sheath, low voltage power cableYJY  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE sheath, low voltage power cableYJLY  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE sheath, low voltage power cableYJY23  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE inner sheath, Galvanized steel tape armored, PE outer sheath, low voltage power cableYJLY23  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE inner sheath, Galvanized steel tape armored, PE outer sheath, low voltage power cableYJY33  0.6/1kV0.6/1kV copper conductor, XLPE insulation, PE inner sheath, Galvanized steel wire armored, PE outer sheath, low voltage power cableYJLY33  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, PE inner sheath, Galvanized steel wire armored, PE outer sheath, low voltage power cableWDZ-YJE  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant sheath, low voltage power cableWDZ-YJLE  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant sheath, low voltage power cableWDZ-YJE23  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel tape armored, low smoke zero halogen flame retardant outer sheath, low voltage power cableWDZ-YJLE23  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel tape armored, low smoke zero halogen flame retardant outer sheath, low voltage power cableWDZ-YJE33  0.6/1kV0.6/1kV copper conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel wire armored, low smoke zero halogen flame retardant outer sheath, low voltage power cableWDZ-YJLE33  0.6/1kV0.6/1kV aluminum conductor, XLPE insulation, low smoke zero halogen flame retardant inner sheath, Galvanized steel wire armored, low smoke zero halogen flame retardant outer sheath, low voltage power cable

*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.

Application
Power cable : Indoors, cable trunking, outdoors and burried in the ground, for power stations, industry and switchgear as well as for urban supply networks, if mechanical damage is unlikely.

Special Features on Request :
• Tinned Coated Copper Conductor
• Fire Resistance
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Heat Resistance
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
• Nylon Coated


Note :
Conductor Shape
1.5 - 10 sqmm supplied in solid (re) or non compacted circular stranded (rm)
16 sqmm supplied in non compacted circular stranded (rm) conductor shape
25 - 800 sqmm supplied in non compacted circular stranded (rm) or compacted circular stranded (cm) conductor shape

Tinned Coated Copper Conductor
Electrical properties for tinned coated copper conductor will be submitted upon request

Standard Packing
1.5 - 10 sqmm supplied in coil @ 100 m
16 - 300 sqmm supplied in wooden drum @ 1000 m
400 - 800 sqmm supplied in wooden drum on available length
Length Tolerance per drum ± 2%
