Cable U1000 R 2V 3X10mm2 Low Voltage Cu Conductor XLPE Insulated PVC Sheathed Unarmored Underground Yjv Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Heating, Underground, Static Outdoor Application
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：XLPE

Base Info

  • Model NO.：YJV
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, CCC, RoHS, VDE, TUV
  • Brand：Fengda
  • Colour：Red,Green,Blue,Black,White,as Request
  • Flame Test：Yes
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Factory Type：Manufacturer
  • Transport Package：Rolls or According to Cusotmers′ Reques
  • Specification：1.5 to 300mm2
  • Trademark：fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：5000000km,Year

Description

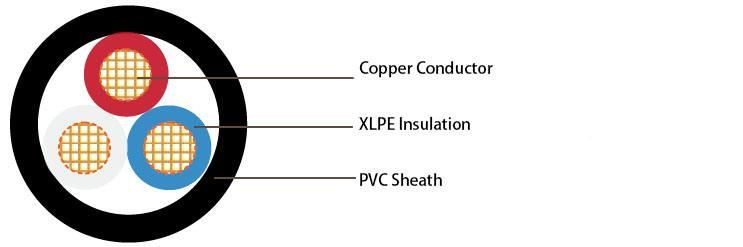

0.6/1KV CU/XLPE/PVC POWER CABLE YJV  3X10mm²Type Cores &Nominal cross section area 0.6/1 kV  GB/T 12706.1-2020Rate voltage Standard   Technical data     ItemsUnitdata    3  Cores
Conductor mm²10 Nominal conductor area         Materialclass 2 copper conductor Electrical and physical properties mm4.0   Approximate outside diameter Itemsdata
Insulation     ºC90ºCMaterialXLPE maximum  operating temperatures mm0.7  Ω/km≤1.83Thickness Resistance of conductors at 20ºC    kV/min3.5/5Colouryellow,green,red Complete voltage tese mm5.4    Approximate outside diameter
Outer Sheath       MaterialPVC     mm1.8    Thickness          Colourblack
Cable mm15.9  Outer cable diameter Marking KG/KM447 YJV 0.6/1KV 0000MWeight Cable U1000 R 2V 3X10mm2 Low Voltage Cu Conductor XLPE Insulated PVC Sheathed Unarmored Underground Yjv Cable
