Nyy Flexible Solid PVC Insulated Copper Control Flat Round Coaxial Power Wiring Flat Welding Electrical Wire Solar Photovoltaic PV Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Solar Cable , Photovaltaic Cable
- Voltage：0.6,1 Kv AC 1800V DC
- Insulation Material：Halogen Free Thermosetting Insulated
- Sheath Material：Halogen Free Thermosetting Sheath
- Material Shape：Round Wire
- Wire Core Material：Flexible Tinned Copper Conductor
Base Info
- Model NO.：Power Cables
- Certification：ISO, CCC, CE
- Model：En 50267 , IEC 60754
- Brand：Feng Da
- Colour：Red,Green,Blue,Black,White,as Request
- OEM/ODM：Yes
- Flame Test：Yes
- Transport Package：Rolls or According to Customer′s Request
- Trademark：feiya
- Origin：Tianjin, China
- HS Code：8544492100
- Production Capacity：50000000 Meter , Year
Description

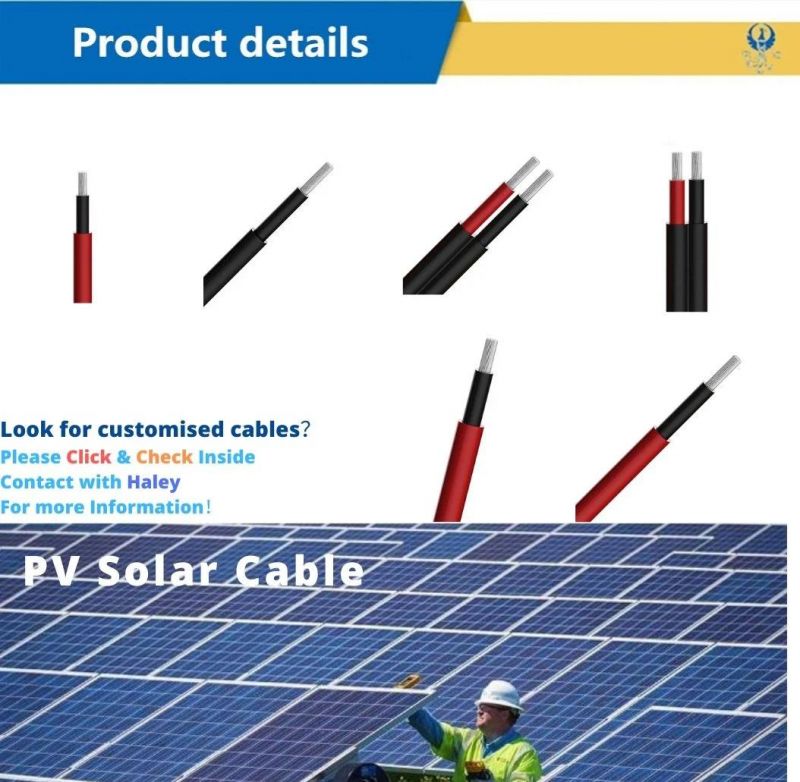

Solar Cable
H1Z2Z2-K | PV1-F
Conductor: Tinned copper, elecreical property & Structure in accordance with EN60228 Class 5.Insulation: LSZH electron-beam cross-linked Polyolefin copolymer ROHS material.
Outer sheath: LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material.
Colour: Prior colour black,or as per customer's request.H1Z2Z2-K 35mm2 Dc Solar PV Cable EN50618.
| Conductor | Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5 |
| Insulation | Polyolefin Copolymer electron-beam coss-linked |
| Sheath Jacket | Polyolefin Copolymer electron-beam coss-linked |
| Nominal Voltage | Uo/U=1000VAC, 1500VDC |
| Test Voltage | 6500V, 50Hz, 5Min |
| Temperature Rating | -40°C-120°C ,More than 25 Years (EN 50618) |
| Fire Performance | IEC 60332-1 |
| Smoke Emission | IEC61034, EN 50286-2 |
| Low Fire Load | DIN 51 900 |
| Certification | EN 50618 Standard |
Product parameters
| Cross section(mm2) | Conductor Construction | Outer(mm) | Resistance Max. | Current Carring Capacity |
| 1*1.5 | 30/0.25 | 4.90 | 13.30 | 30 |
| 1*2.5 | 50/0.25 | 5.45 | 7.89 | 41 |
| 1*4 | 56/0.3 | 6.10 | 4.75 | 50 |
| 1*6 | 84/0.3 | 7.20 | 3.39 | 70 |
| 1*10 | 142/0.3 | 9.00 | 1.95 | 98 |
| 1*16 | 228/0.3 | 10.20 | 1.24 | 132 |
| 1*25 | 361/0.3 | 12.00 | 0.795 | 176 |
| 1*35 | 525/0.3 | 13.8 | 0.565 | 218 |
| 1*50 | 720/0.3 | 14.8 | 0.393 | 280 |
| 1*70 | 988/0.3 | 16.9 | 0.277 | 350 |
| 1*95 | 1349/0.3 | 18.7 | 0.21 | 410 |
| 1*120 | 1691/0.3 | 20.7 | 0.164 | 480 |
| Cross section(mm2) | Conductor Construction | Outer(mm) | Resistance Max. | Current Carring Capacity |
| 2 x 1.5 | 30/0.25 | 8.3 ± 0.2 | 13.30 | 30 |
| 2 x 2.5 | 50/0.25 | 9.2 ± 0.2 | 7.98 | 41 |
| 2 x 4 | 56/0.3 | 12.0 ± 0.2 | 4.75 | 50 |
| 2 x 6 | 84/0.3 | 13.5 ± 0.2 | 3.39 | 70 |
| 2 x 10 | 142/0.3 | 17.6 ± 0.2 | 1.95 | 98 |
| 2 x 16 | 228/0.3 | 19.8 ± 0.2 | 1.24 | 132 |
